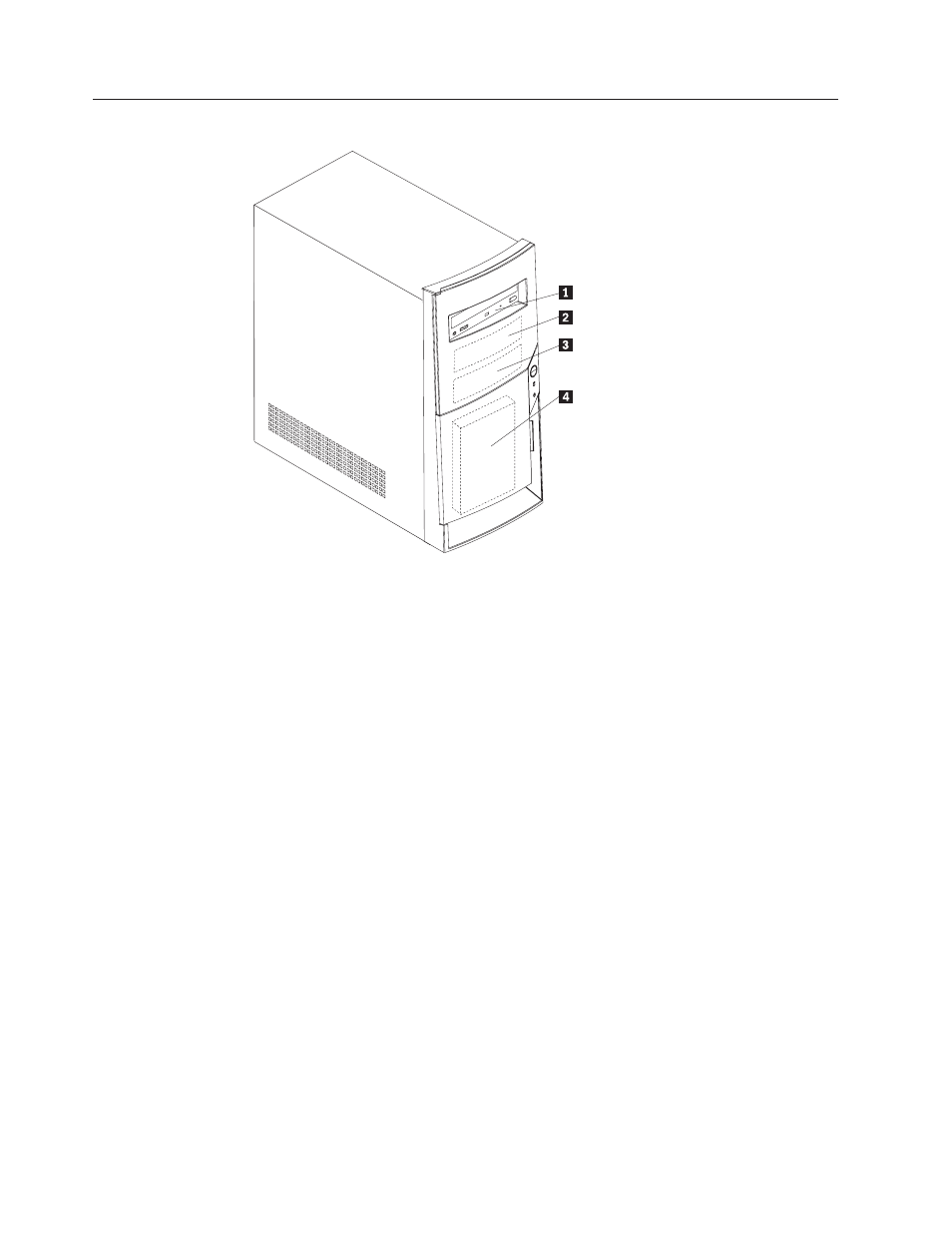

Installing internal drives
1
Bay 1 - Max Height:
41.3 mm (1.6 in.)
CD-ROM drive (standard in some models)
5.25-inch hard disk drive
2
Bay 2 - Max Height:
41.3 mm (1.6 in.)
5.25-inch hard disk drive
3.5-inch hard disk drive (requires a mounting
bracket)
CD-ROM drive
DVD-ROM drive
3
Bay 3 - Max Height:
25.4 mm (1.0 in.)
3.5-inch diskette drive (preinstalled)
4
Bay 4 - Max Height:
25.4 mm (1.0 in.)
Hard disk drive (preinstalled)
Installing drives in bays 1, 2 and 3
To install an internal drive in bays 1, 2 and 3, do the following:
1.
Remove the cover (see “Removing the cover” on page 19).
2.
Remove the bay panel and insert a flat–bladed screwdriver into one of the slots
on the static shield in the drive bay into which you are installing the drive and
