below for the drive settings.
AUDIO IDE INTERFACE
See Jumper
Settings Below
DC INPUT
R G G L 5V G G 12V 39
40 1
2
CD-ROM Primary (Master) Secondary (Slave)
40X : : : :
48X : : : :

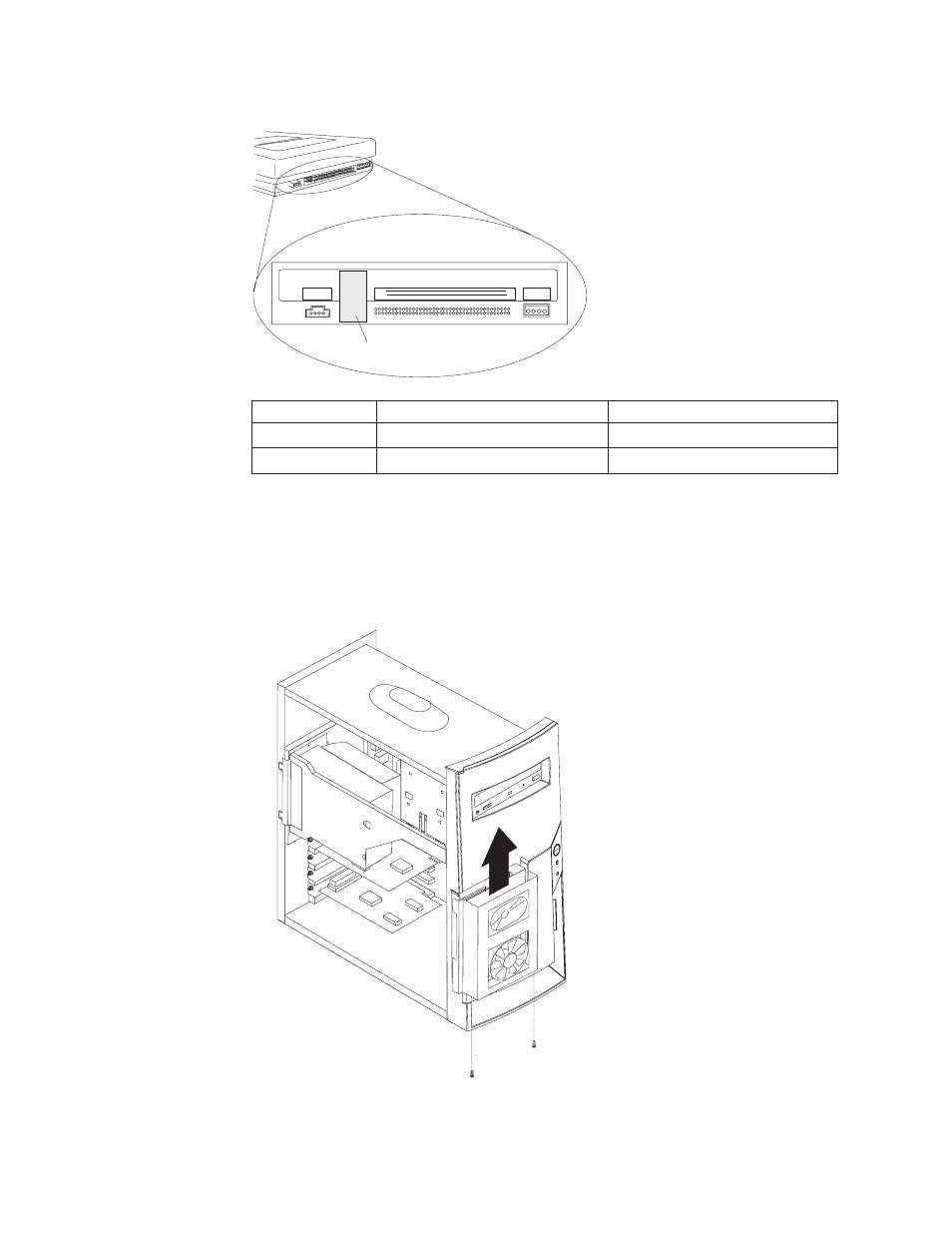

Installing a hard drive in bay 4
To install a hard drive in bay 4, do the following:
1.
Remove the cover (see “Removing the cover” on page 19).
2. From the bottom of the machine, remove the two screws that retain the hard
drive mounting bracket.
24 Hardware Maintenance Manual
