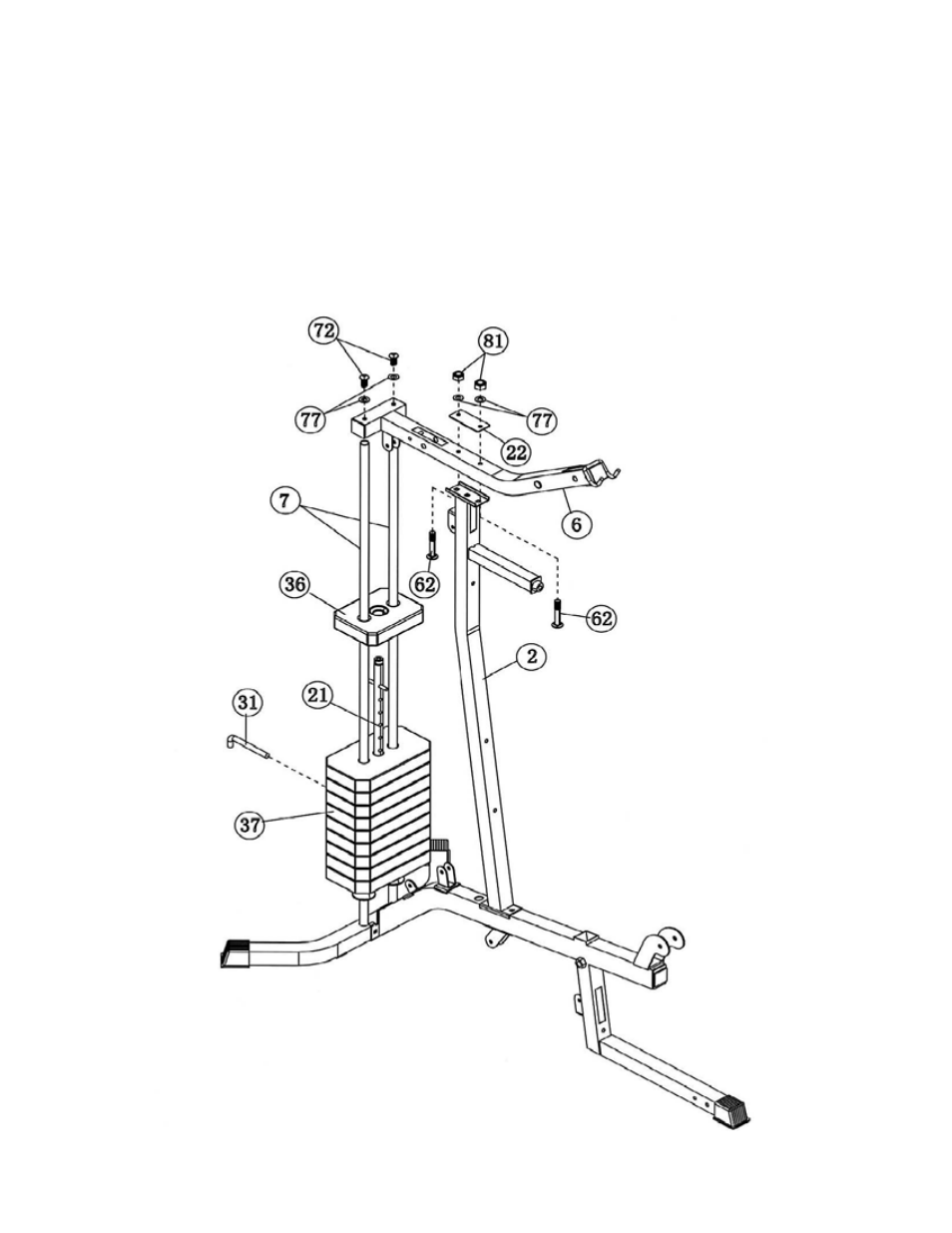

STEP 2 (See Diagram 2)
A) Slide 9 Weight Plates (#37) onto the Guide Rods (#7). Align the holes on the Weight Plates.
Insert a Selector Rod (#21) through the center hole. Use a L-shaped Pin (#31) to select the
number of Weight Plates. Slide the Selector Stem (#36) onto the Guide Rods.
B) Attach the holes on the Upper Frame (#6) onto the Guide Rods. Place the Upper Frame onto
the Vertical Frame (#2).
C) Secure the Upper Frame (#6) to the Guide Rods (#7) with two M10 x 1” Allen Bolts (#72) and
Ø ¾” Washers (#77).
D) Secure the Upper Frame to the Vertical Frame with two M10 x 2 ¾” Carriage Bolts (#62),
