7. Go to “Completing the FRU replacement.” on page 45 when the power supply
has been installed.
Replacing the system board
1. Shut down your operating system and turn off the computer.
2. Remove the cover. See “Removing the cover” on page 39.
3. Remove any adapters connected to the system board.
4. Disconnect all cables connected to the system board. See “Identifying parts on
the system board” on page 39.

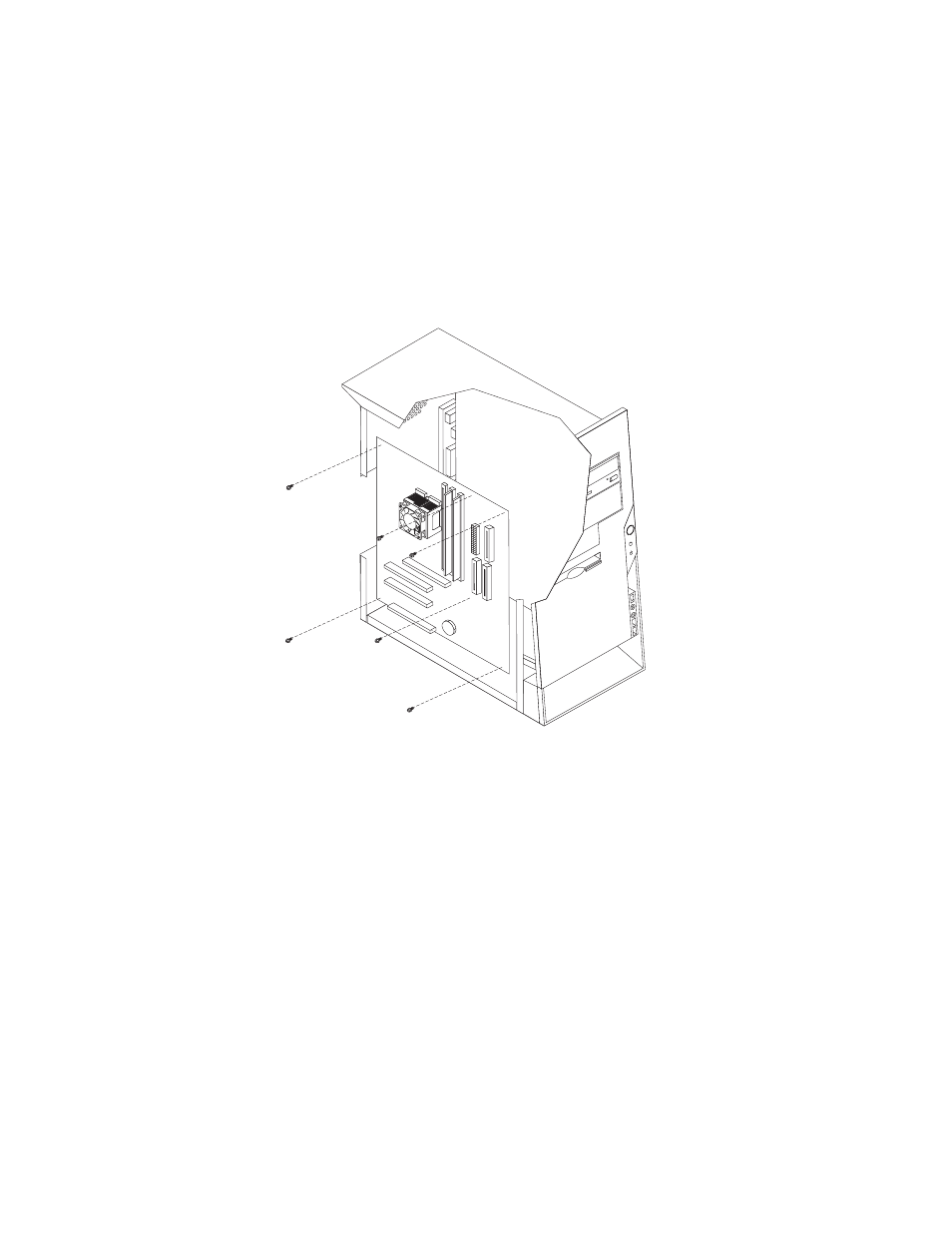

5. Remove the screws that hold the system board to the chassis.
6. Lift the system board out.
7. Remove the microprocessor from the system board and install it on the new
system board.
8. Remove the memory modules from the system board and install them on the
new system board.
9. Reverse this procedure to install the new system board.
10. Go to “Completing the FRU replacement.” on page 45 when the system board
has been installed.
Replacing the hard disk drive
1. Shut down your operating system and turn off the computer.
2. Remove the cover. See “Removing the cover” on page 39.
3. Remove the front bezel. See“Removing the front bezel” on page 41.
4. Disconnect the cables attached to the hard disk drive.
