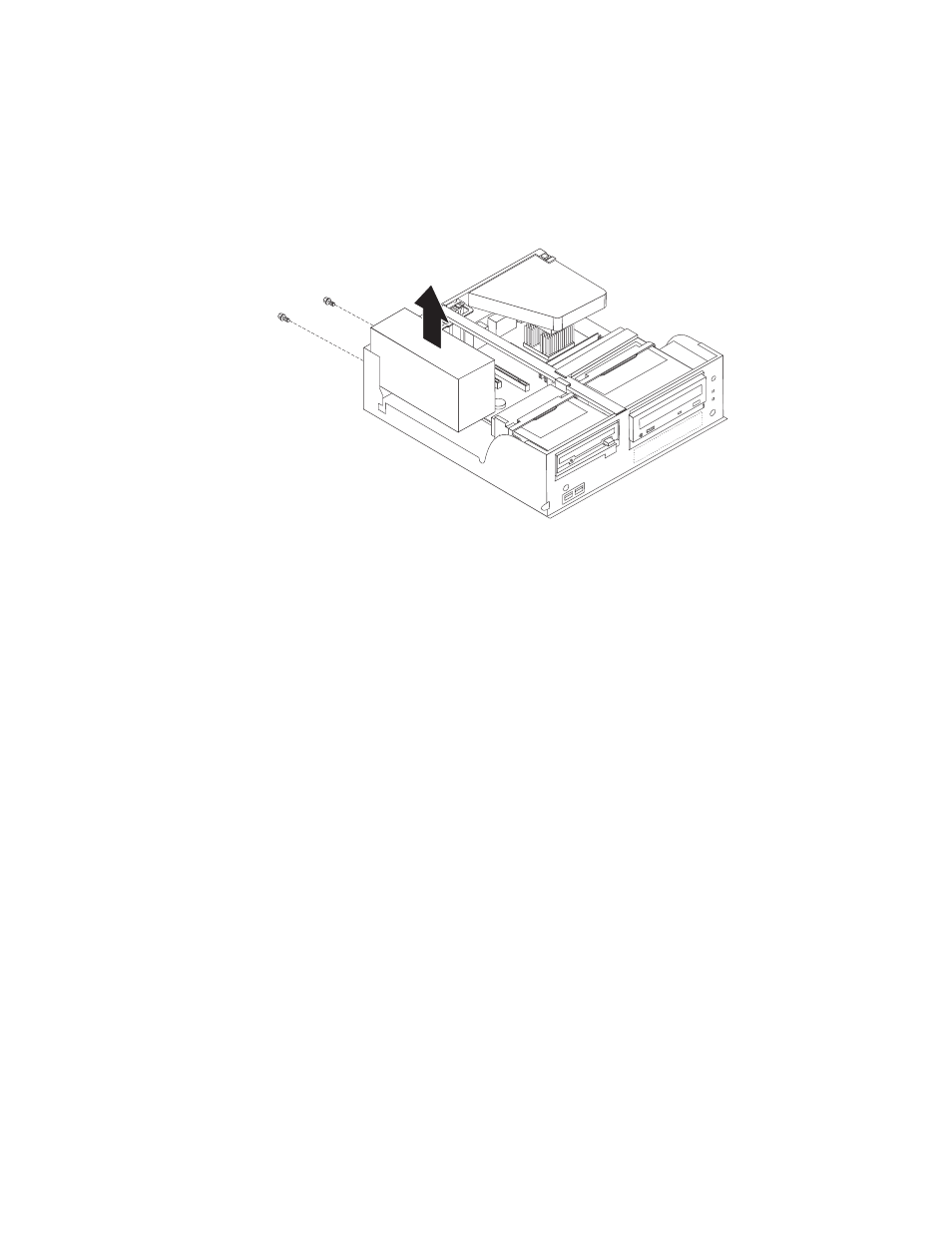

Replacing the power supply
1. Shut down your operating system and turn off the computer.
2. Remove the cover. See “Removing the cover” on page 28.
3. Disconnect all power supply cables from the system board and the drives. See
“Identifying parts on the system board” on page 28.
4. Remove the screws that hold the power supply in place.
5. Lift the power supply out.
6. Reverse this procedure to install the new power supply.
7. Go to “Completing the FRU replacement.” on page 45 when the power supply
has been installed.
Replacing the system board
1. Shut down your operating system and turn off the computer.
2. Remove the cover. See “Removing the cover” on page 28.
30 Hardware Maintenance Manual Types 2292, 2273, 6043, 6343, 6349, 6350, 6790, 6791, 6792, 6793, 6794, 6795, 6823, 6825
