Impex PM-3000 - Manual (Page 10)

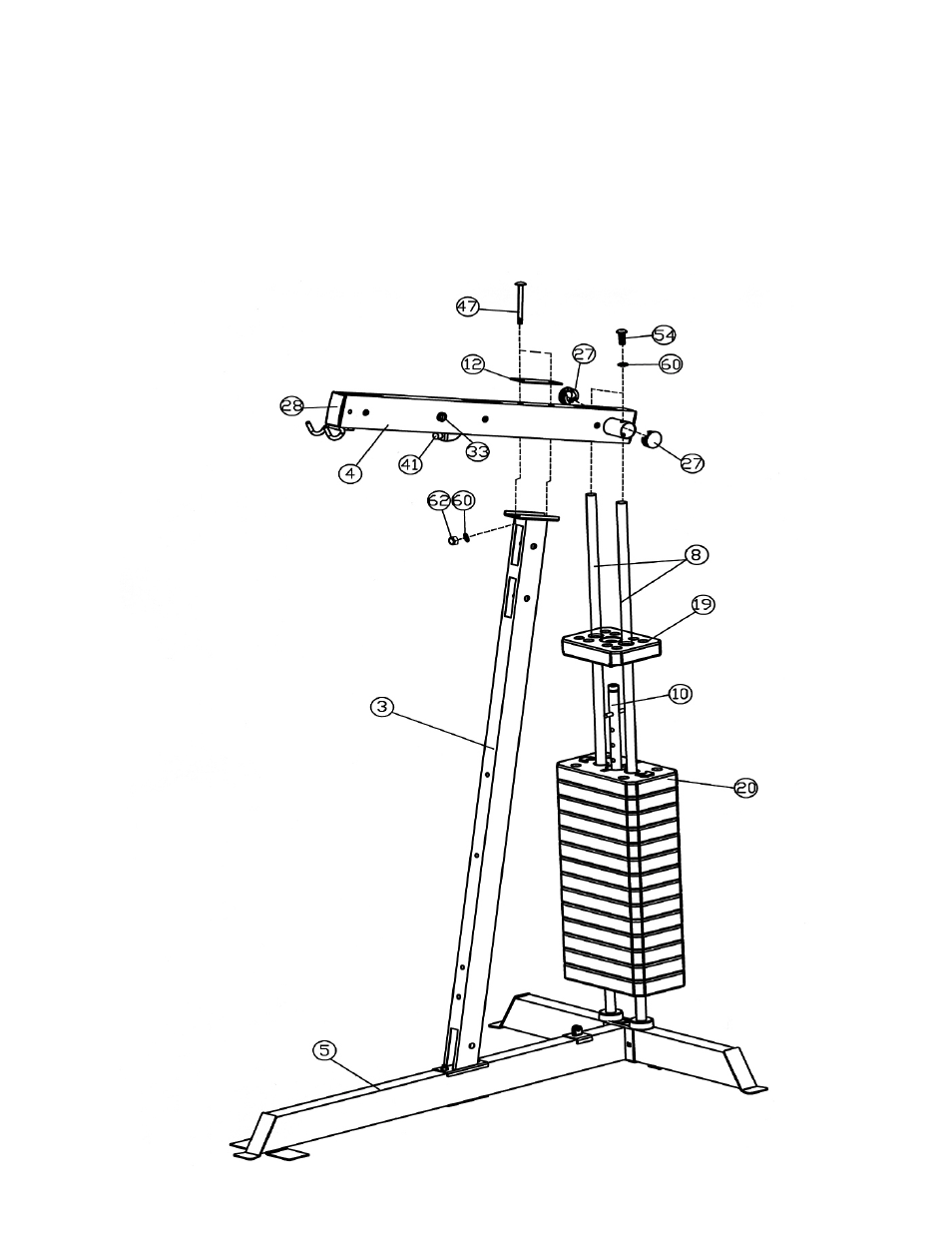

STEP 2 (See Diagram 2)
A.) Slide 14 Weight Plates (#20) onto the Guide Rods (#8). Make sure the deep grooves on the
Plates all face down and to the same direction. Insert the Selector Rod (#10) into the center
hole on the Plates. Slide the Selector Stem (#19) onto the Guide Rods.
B.) Attach the Upper Frame (#4) onto the Guide Rods. Secure it with two M10 x 1” Allen Bolts
(#54) and Ø ¾” Washers (#60).
C.) Place the Upper Frame onto the Vertical Frame (#3). Secure it with two M10 x 4 ¾” Carriage
Bolts (#47), one 5 ½” x 2” Bracket (#12), two
∅
¾” Washers (#60), and two M10 Aircraft
Nuts (#62).
D.) Securely tighten all Nuts and Bolts previously installed.
