ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended two or more people assembling this
machine to avoid possible injury.
STEP 1 (See Exploded Diagram)
A.) Attach the Main Frame (#1) to the Stabilizer (#2). Secure it with two M10 x 2 1/8” Allen
Bolts (#10), two
∅
¾” Washers (#13), and one Bracket (#3).
B.) Attach two L-shaped Brackets (#4) to the holes on the Main Frame. Secure the
Brackets with one M10 x 4” Allen Bolt (#11), two Ø ¾” Washers (#13), and one M10
Aircraft Nut (#15). Repeat the same procedure to install the other two Brackets. Do not
tighten the Brackets yet.
C.) Place the Seat Pad (#6) onto the Main Frame. Align the holes to the Brackets. Secure it
with four M8 x ¾” Allen Bolts (#12) and Ø 5/8” Washers (#14). Securely tighten all Nuts
and Bolts previously installed.
D.) Insert the Foam Tube (#5) halfway through the hole on the Main Frame. Push two
Foam Rolls (#7) onto the Tube. Plug two Foam Roll End Caps (#8) to the Ends.

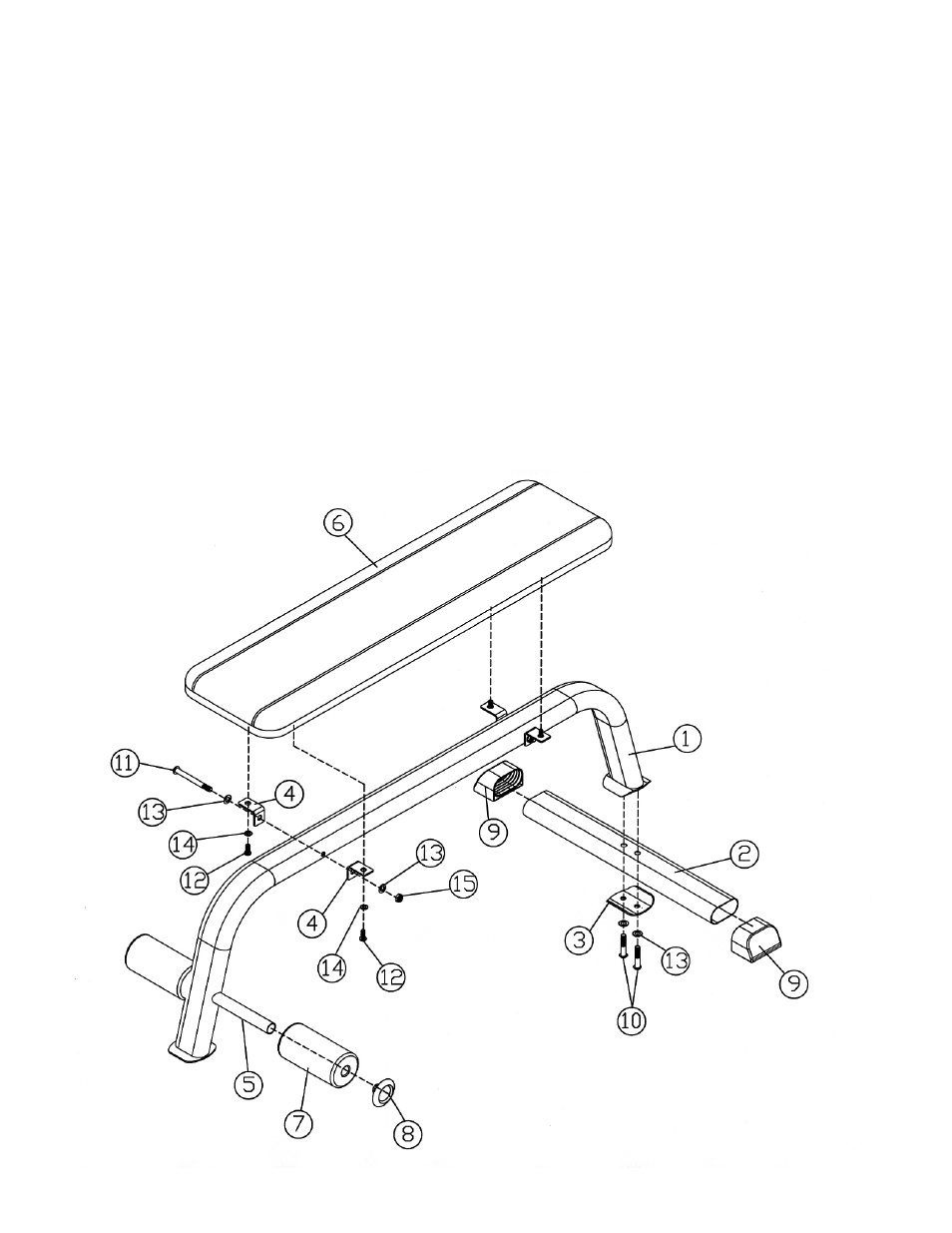

EXPLODED DIAGRAM
5
