STEP 7 (See Diagram 7 & Cable Loop)
A.) Attach one end of the 87” Butterfly Cable to the clip on the Right Butterfly (#11).
Draw the Cable to the right Swivel Pulley Bracket (#20).
B.) Attach a Pulley (#57) to the Bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#69),
two Ø ¾” Washers (#66), and one M10 Aircraft Nut (#86).
C.) Draw the Cable around the Pulley then downward. Attach the Cable to a Single
Floating Pulley Bracket (#19). Repeat Procedure B above to install a Pulley. Let the
Bracket hanging for now.
D.) Draw the Cable upward to the left Swivel Pulley Bracket. Repeat Procedure B
above to install another Pulley.
E.) Draw the Cable around the Pulley they clip it to the Left Butterfly.

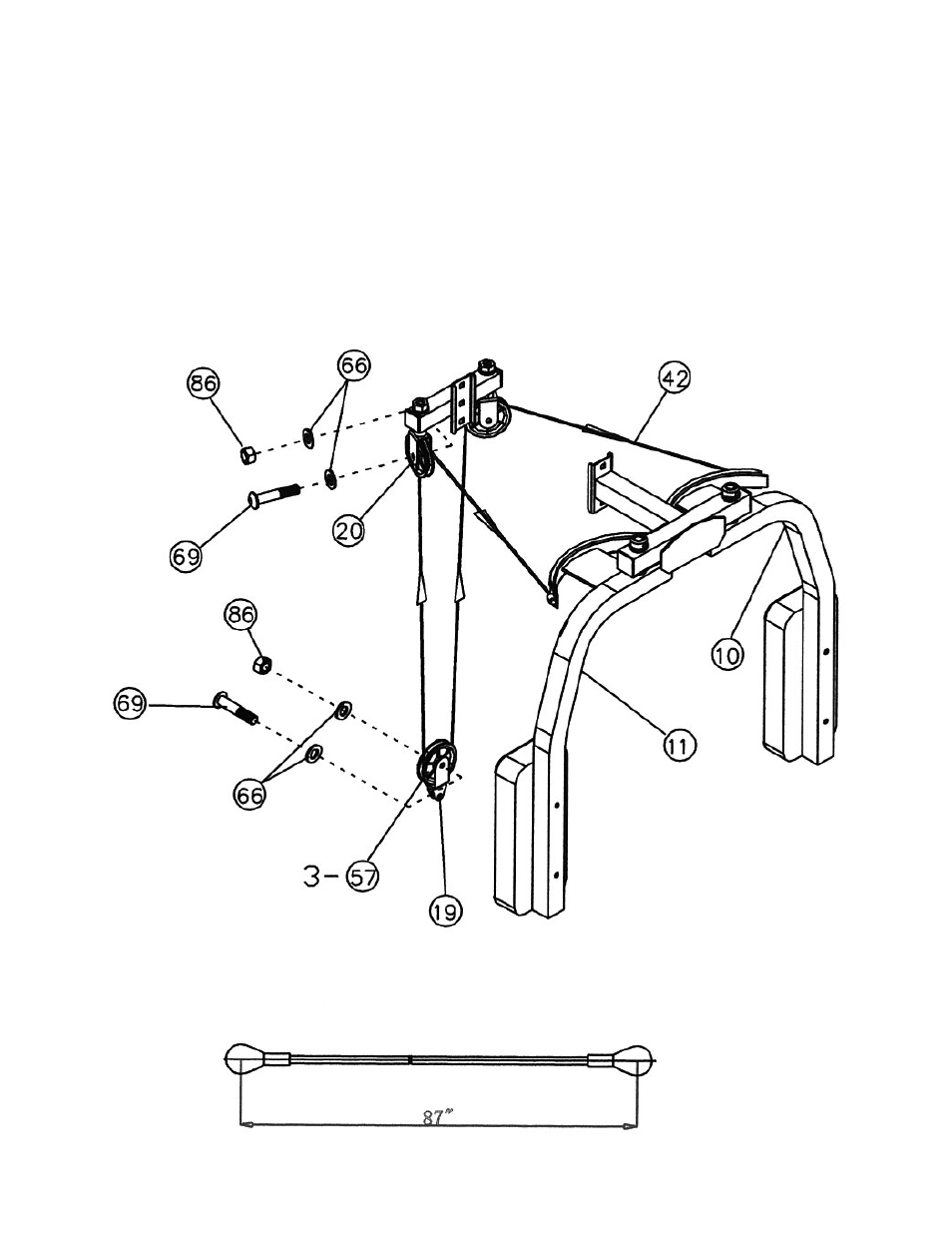

DIAGRAM 7
13
