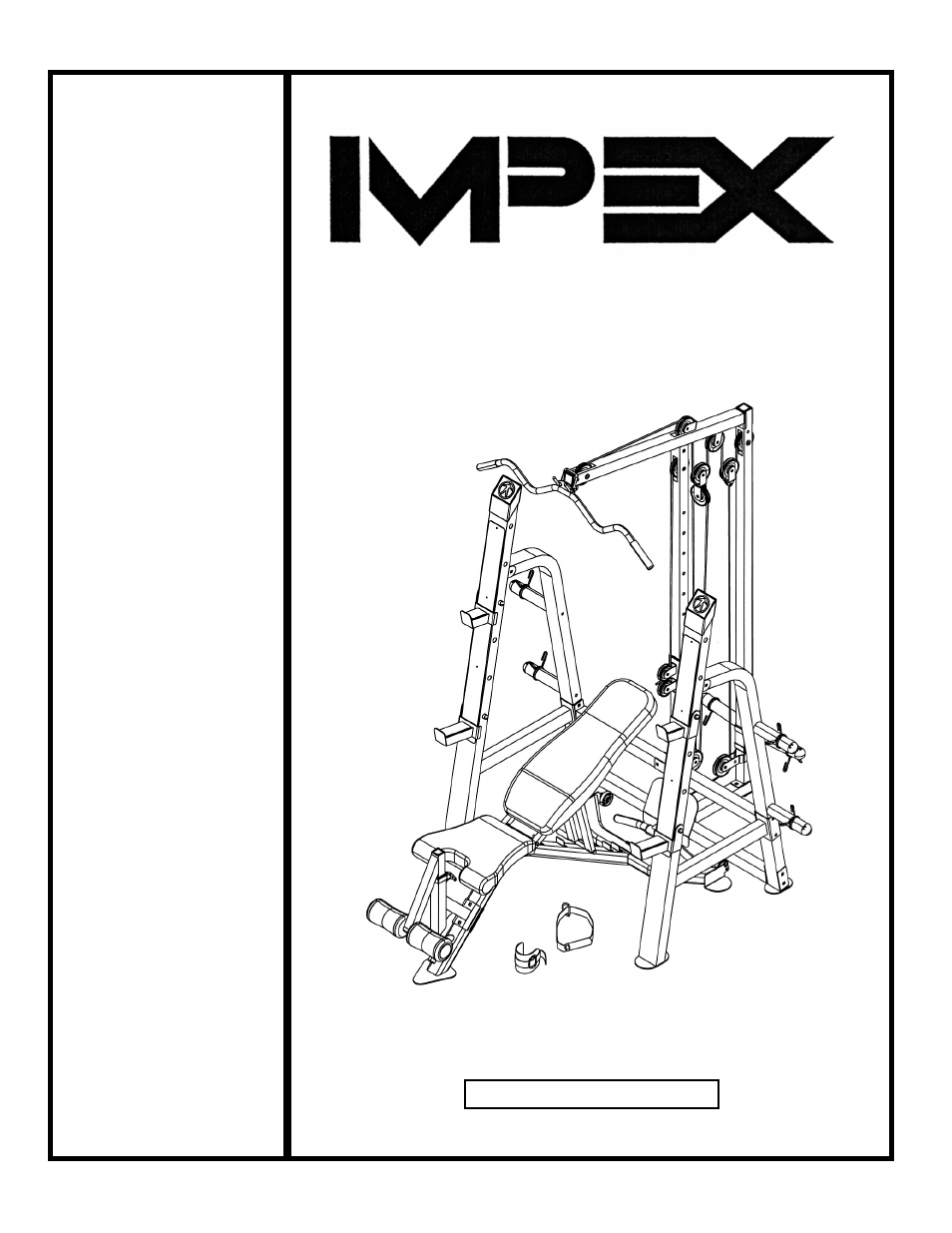

Impex Olympic Cage User Manual
Marcy platinum olympic cage mp-12.0, Model mp-12.0, Impex
Table of contents
Document Outline
- BEFORE YOU BEGIN...................................................................................... 1
- IMPORTANT SAFETY NOTICES..................................................................... 2
- HARDWARE PACK……….....…....................................................................... 4
- ASSEMBLY INSTRUCTIONS........................................................................... 8
- EXPLODED DIAGRAM.........................................................................………. 20
- PARTS LIST………………………………………………………………………….. 22
- WARRANTY.................................................................................................… 23
- ORDERING PARTS......................................................................................... 23
- WARNING LABEL REPLACEMENT
- HARDWARE PACK
- HARDWARE PACK
- HARDWARE PACK
- ASSEMBLY INSTRUCTION
- Attach the Rear Vertical Frame (#6) onto the Rear Base (#16). Secure it with two M10 x 2 ¾” Carriage Bolts (#85) from the bottom, two ( ¾” Washers (#80) and two M10 Aircraft Nuts (#82) on the top. Slide the Sliding Weight Post (#11) onto the Rear Vertica
- Place the Rear Base (#16) in between the two Rear Left & Right Stabilizers (#7 & #8). Attach the Front Vertical Frame (#9) onto the Rear Base (#16). Align the holes and secure them all together with two M10 x 3 1/8” Carriage Bolts (#88), ( ¾” Washers (#8
- Slide the Sliding Pulley Bracket (#17) onto the Front Vertical Frame (#9). Use a Lock Knob (#68) to lock the Sliding Pulley Bracket at selected position.
- Secure the Front Vertical Frame (#9) to the Rear Cross Brace (#5) with two M10 x 2 ¾” Carriage Bolts (#85), one 4 ¾” Bracket (#27), two ( ¾” Washers (#80), and two M10 Aircraft Nuts (#82).
- Attach the Upper Frame (#10) to the top of Front Vertical Frame (#9). Secure it with two M10 x 5/8” Allen Bolts (#98) and ( ¾” Washers (#80).
- Attach the rear of Upper Frame to the top of Rear Vertical Frame (#6). Secure it with one M10 x 2 3/8” Allen Bolt (#95), ( ¾” Washer (#80) and 3 1/8” Bracket (#28) to the top hole. Secure the bottom hole with one M10 x 2 ½” Carriage Bolt (#84), ( ¾” Was
- Securely tighten all Nuts and Bolts previously installed.
- PARTS LIST
- KEY NO. DESCRIPTION Q’ty
