ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: One Adjustable Wrench
NOTE: It is strongly recommended this machine be assembled by two or more
people to avoid possible injury.

STEP 1 (See Exploded Diagram)

A.) Attach the Rear Stabilizer (#2) to the Main Base Frame (#1). Secure it with two M10 x 2

¾” Carriage Bolts (#5), Ø ¾” Washers (#6), and M10 Aircraft Nuts (#7).

B.) Attach the Vertical Frame (#3) onto the Main Base Frame. Secure it with three M10 x 2

¾” Carriage Bolts (#5), Ø ¾” Washers (#6), and M10 Aircraft Nuts (#7).

C.) Attach the Diagonal Support (#4) to the Main Base Frame and Vertical Frame. Secure

each end with one M10 x 2 ¾” Carriage Bolt (#5), Ø ¾” Washer (#6), and M10 Aircraft
Nut (#7).

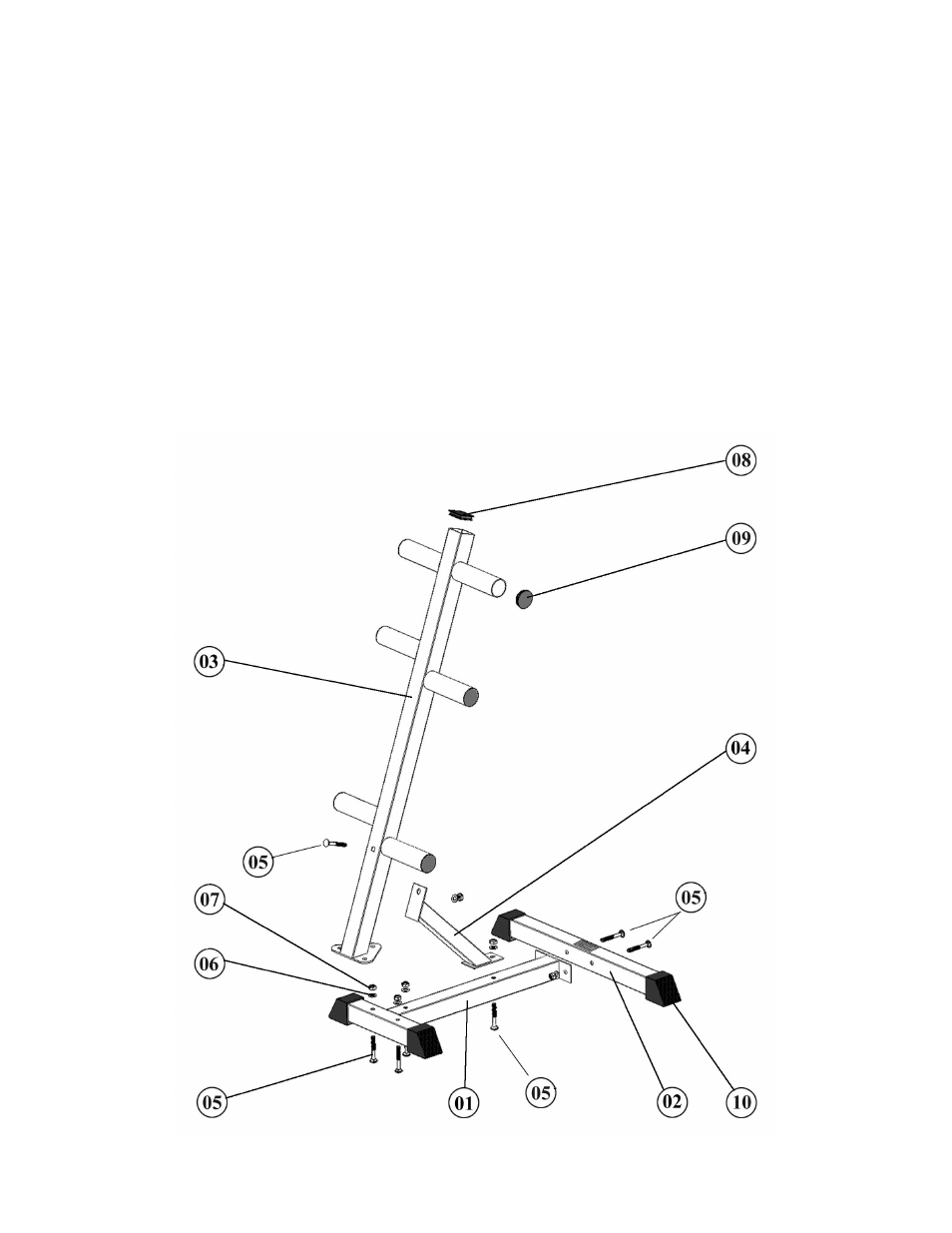

EXPLODED DIAGRAM
