101 Appendix B

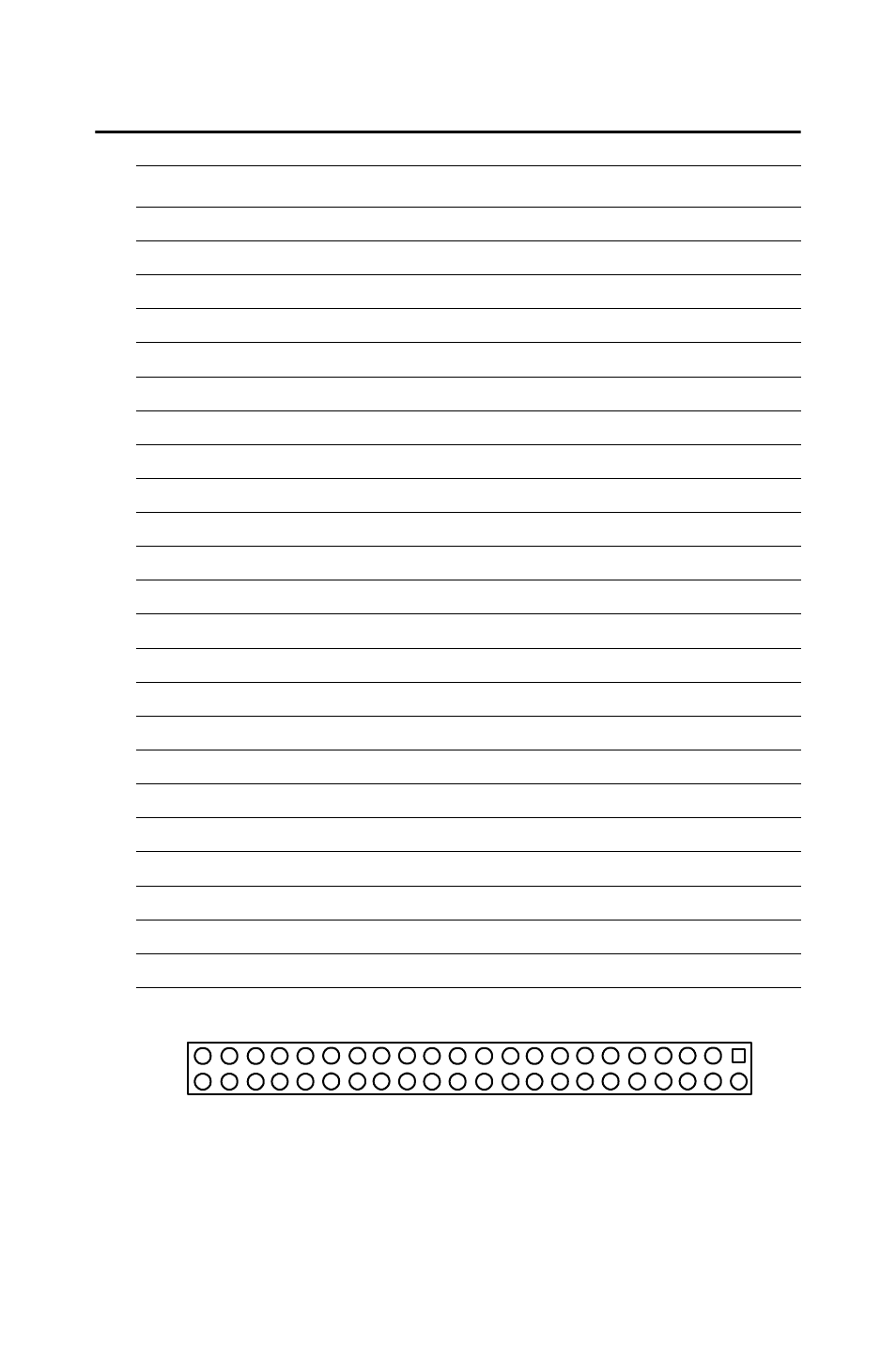

B.12 CN12 44-Pin IDE Connector
Table B.13:
CN12 44-Pin IDE Connector
Pin Pinname Pin Pinname
1 Reset 2 GND
3 D7 4 D8
5 D6 6 D9
7 D5 8 D10
9 D4 10 D11
11 D3 12 D12
13 D2 14 D13
15 D1 16 D14
17 D0 18 D15
19 GND 20 Reserved
21 DMARQ 22 GND
23 DIOW- 24 GND
25 DIOR- 26 GND
27 IORDY 28 SPSYNC:CSEL
29 DMACK- 30 GND
31 INTRQ 32 IOCS16#
33 DA1 34 PDIAG#:N/C
35 DA0 36 DA2
37 CS0- 38 CS1-
39 DASP- 40 GND
41 +5V 42 +5V
43 GND 44 NC
4 44
43 3
42
41 1
2
