STEP 2 (See Diagram 2)

A.) Slide the Sliding Block (#17) onto the Main Seat Support (#6). Use a M18 Lock Knob

(#24) to hold the Sliding Block in position.

B.) Attach the Rear of the Main Seat Support to the Cross Brace (#3). Secure them with two

M10 x 2 ½” Carriage Bolts (#47),

¾” Washers (#58), and M10 Aircraft Nuts (#56).

C.) Attach the Front Stabilizer (#5) to the front of the Main Seat Support. Secure them with

one M10 x 2 ½” Carriage Bolt (#47) from the top, two M10 x 2 ¾” Carriage Bolts (#46)
on the side, three

¾” Washers (#58), and three M10 Aircraft Nuts (#56).

D.) Insert the Leg Developer Holder (#7) into the top opening on the Front Stabilizer. Use a

M18 Lock Knob (#24) to securely hold the desired height.

E.) Attach the Leg Developer (#23) to the bracket on the Leg Developer Holder. Secure

them with one Axle (#25), two M10 x 1” Allen Bolts (#49) and two

¾” Washers (#58).

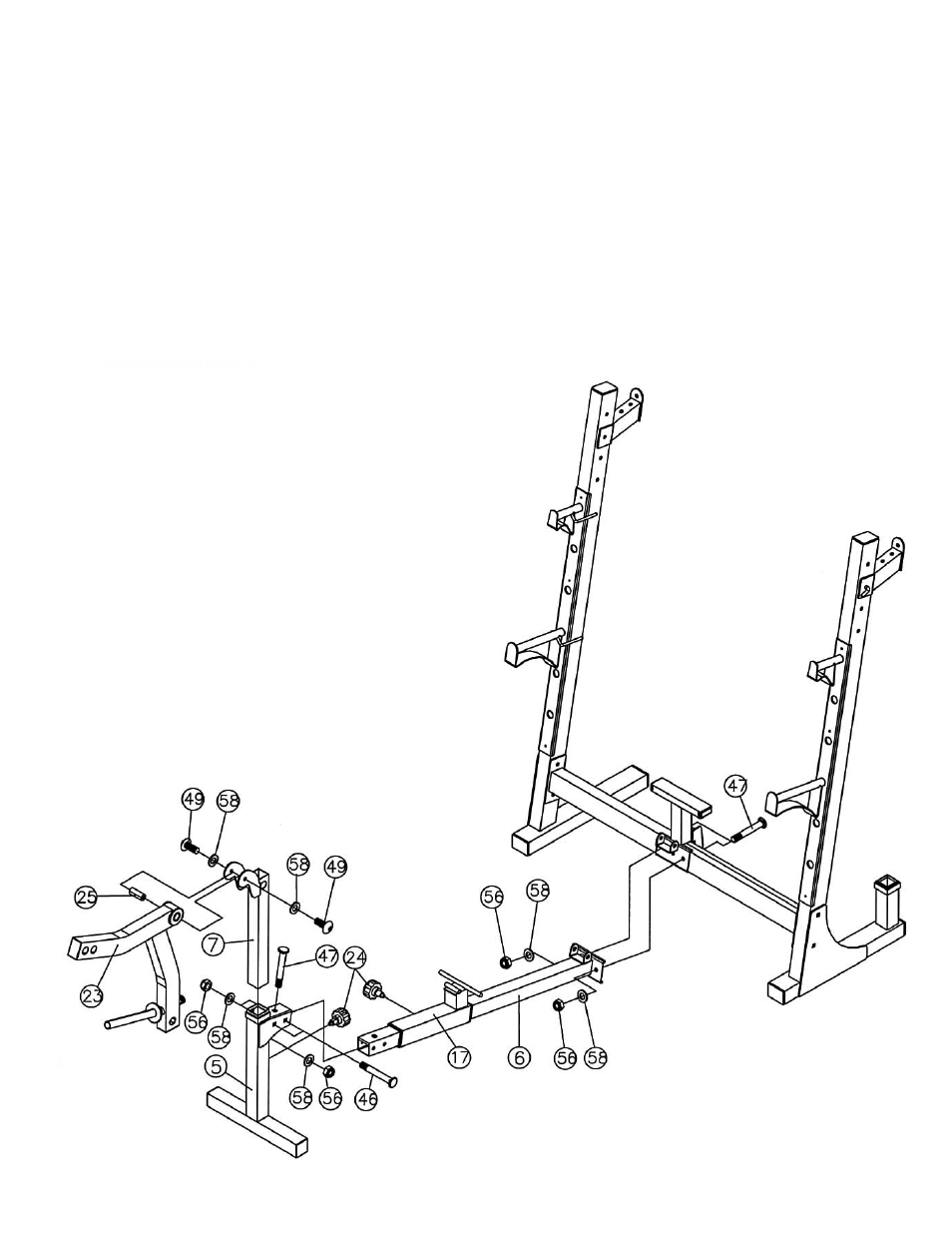

DIAGRAM 2
