Installation
Page 3-17

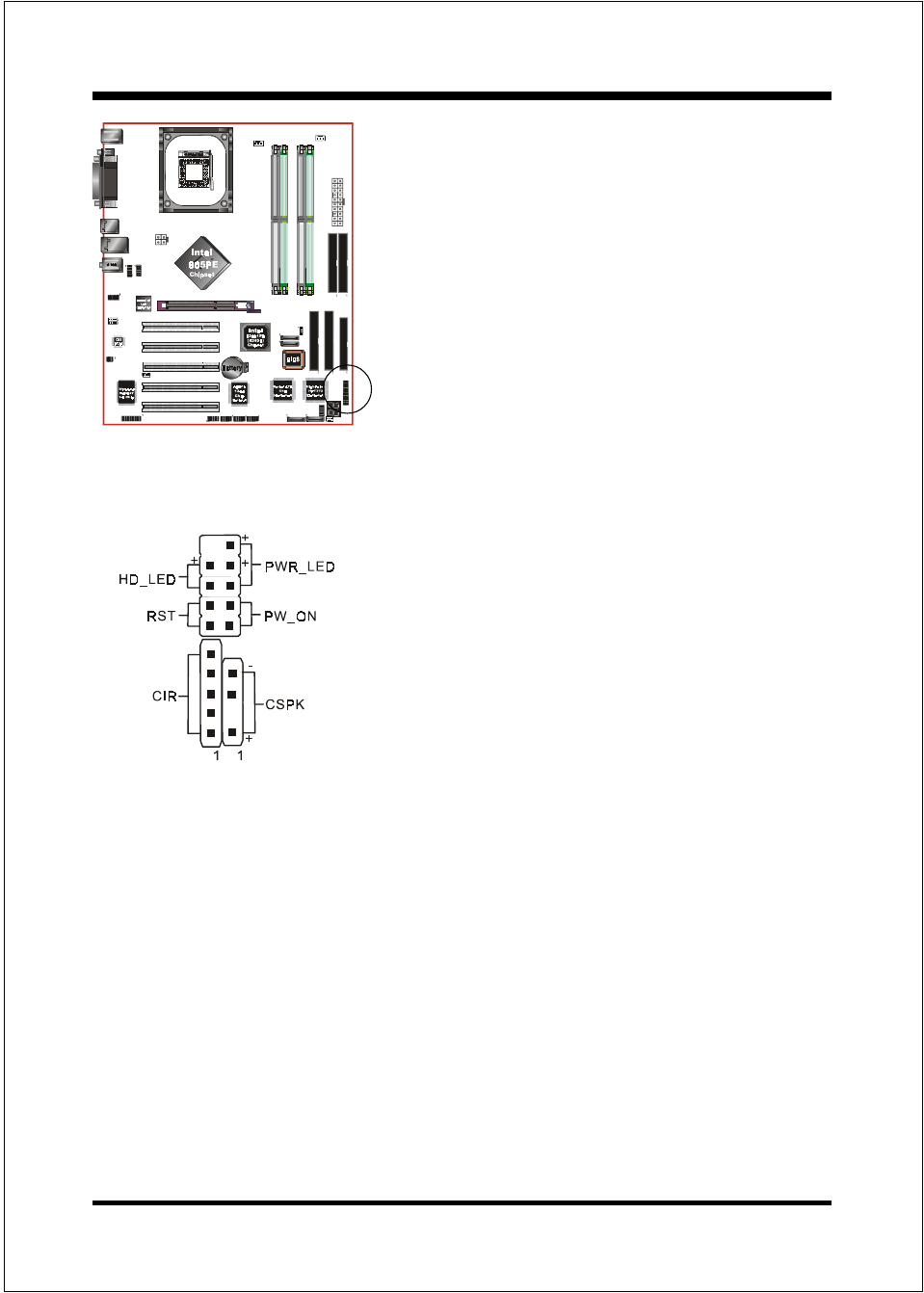

CFP / CIR / CSPK
CFP: Front Panel Connector
"
""
"
"
HD_LED
This will light when the hard drive is being
accessed.
"
""
"
"
PWR_LED
This connects to the power button of the
system chassis
"
""
"
"
RST
This switch allows you to reboot without
having to power off the system thus prolonginh
the life of the power supply or system.
"
""
"
"
PW_ON
This is connected to the power button on the
case. Using the Soft-Off by Pwr-BTTN feature,
you can choose either Instant Off (turns system
off immediately), or 4 sec delay (push the
button for 4 seconds before the system turns
off). When the system is in 4 sec delay mode,
suspend mode is enabled by pushing the
button momentarily.
CIR: IR connector
Connect your IrDA cable to the IR connector.
1. VCC
4. GND
2. NC
5. IRTX
3. IRRX
CSPK: Speaker
Connect to the systems speaker for beeping
1. VCC
3. GND
2. NC
4. Speaker
