SOM-4486 User’s Manual
10
Chapter 2 Connector Assignments
2.1 Connector Locations
The board has a number of connectors that allow you to configure your
system to suit your application.

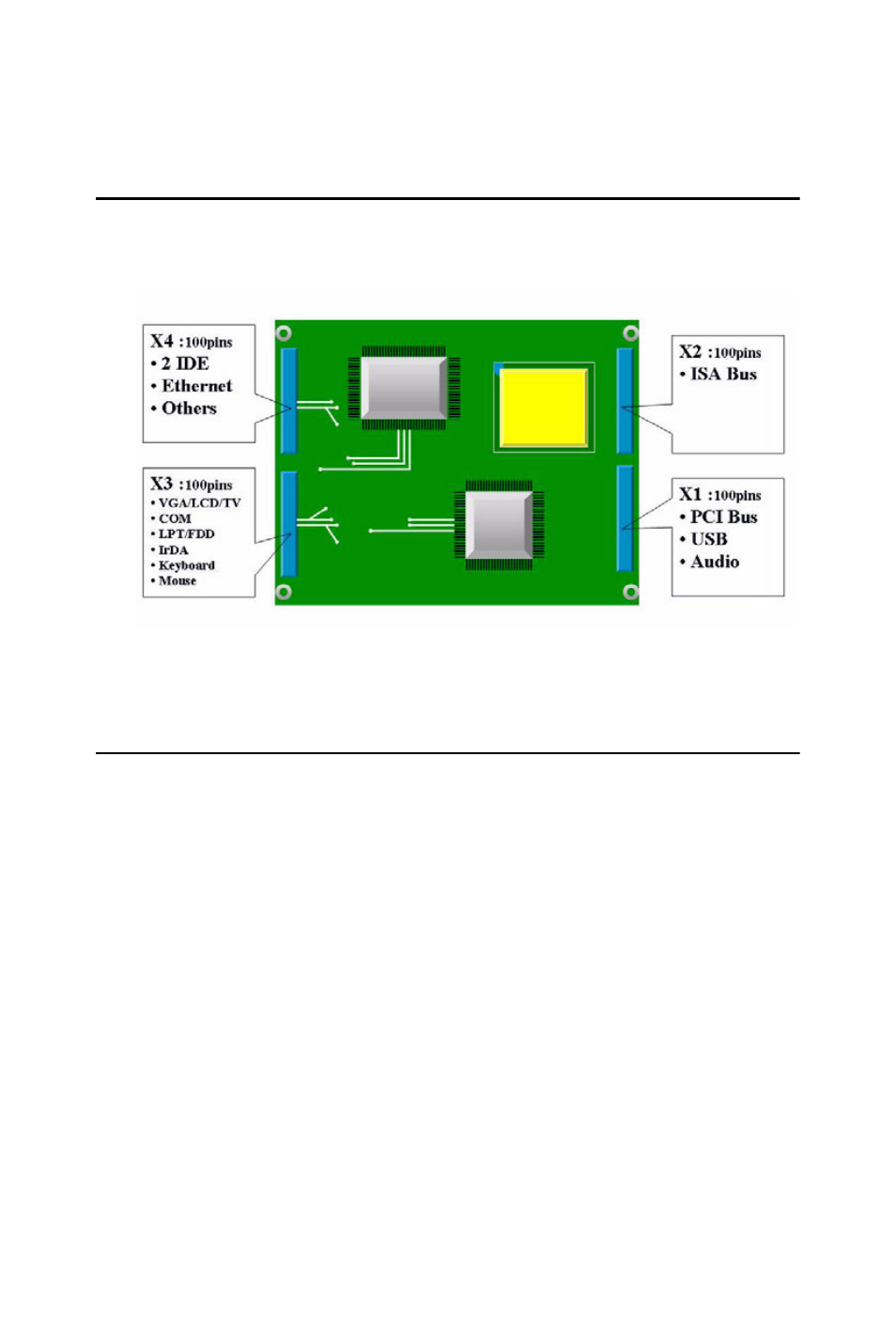

Figure 2.1: SOM-4486 Locating Connectors
2.2 Pin Assignments for X1/2/3/4 connectors
Please refer to SOM-ETX Design and Specification Guide, Chapter 2
