Hard
disk
drive
removal
1.
Remove
the
rear
bucket
housing,
see
2.

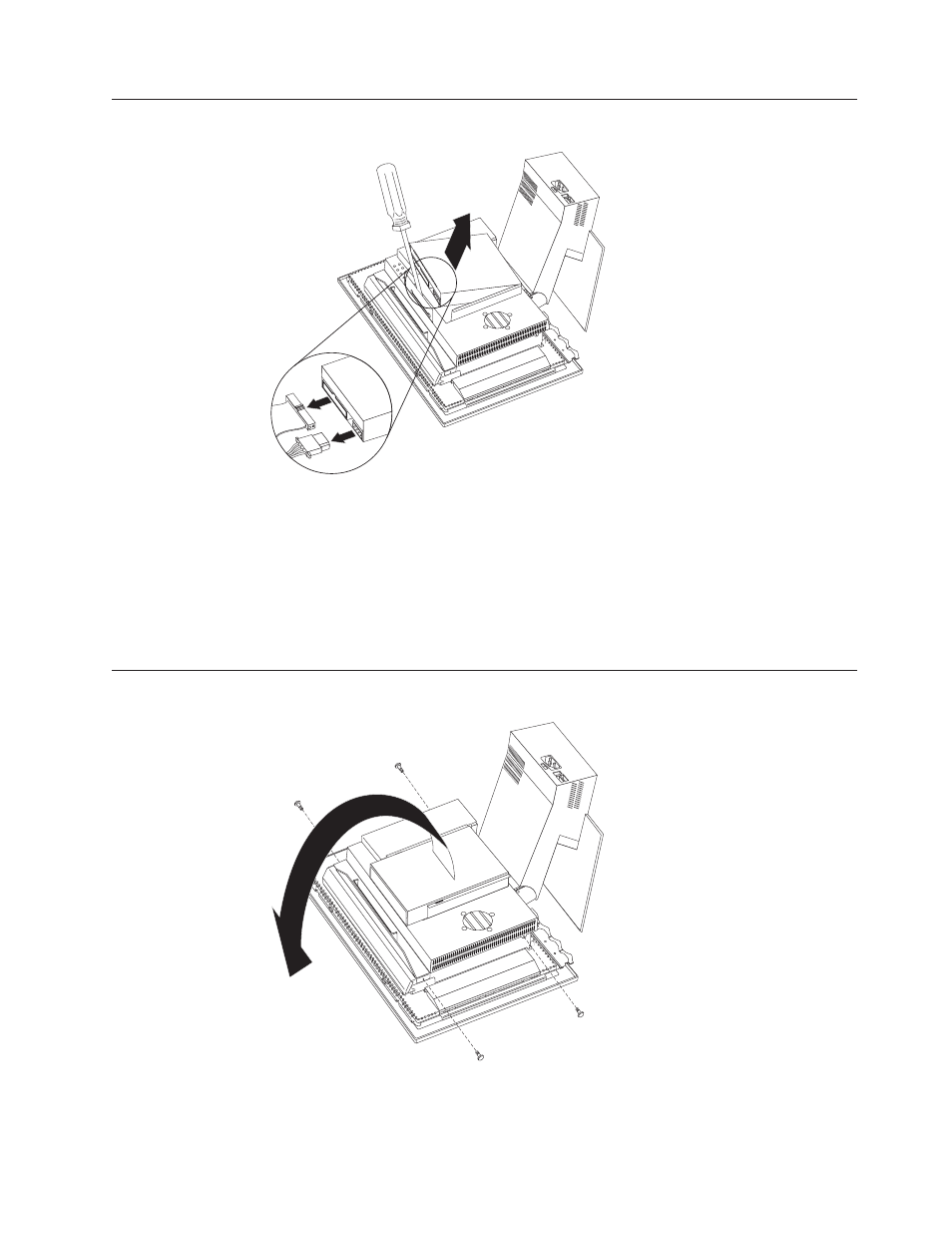

To
release
the
hard
disk
drive,
use
a
flat-blade
screw
driver
to
pry
the
latch
as
shown.
3.
Rotate
the
hard
disk
drive
outward,
and
disconnect
the
power
and
signal
cables
from
the
drive.
4.
Lift
the
hard
disk
drive
up
and
back
to
release
the
hook
from
the
rear
EMC
cover.
Rear
EMC
cover
assembly
removal
The
rear
EMC
cover
must
be
removed
in
order
to
remove
the
system
board.
1.
Remove
the
rear
bucket
housing,
see
Chapter
4.
FRU
replacements
23
