ASSEMBLY INSTRUCTION

Tools Required to Assemble the Machine: One Adjustable Wrench

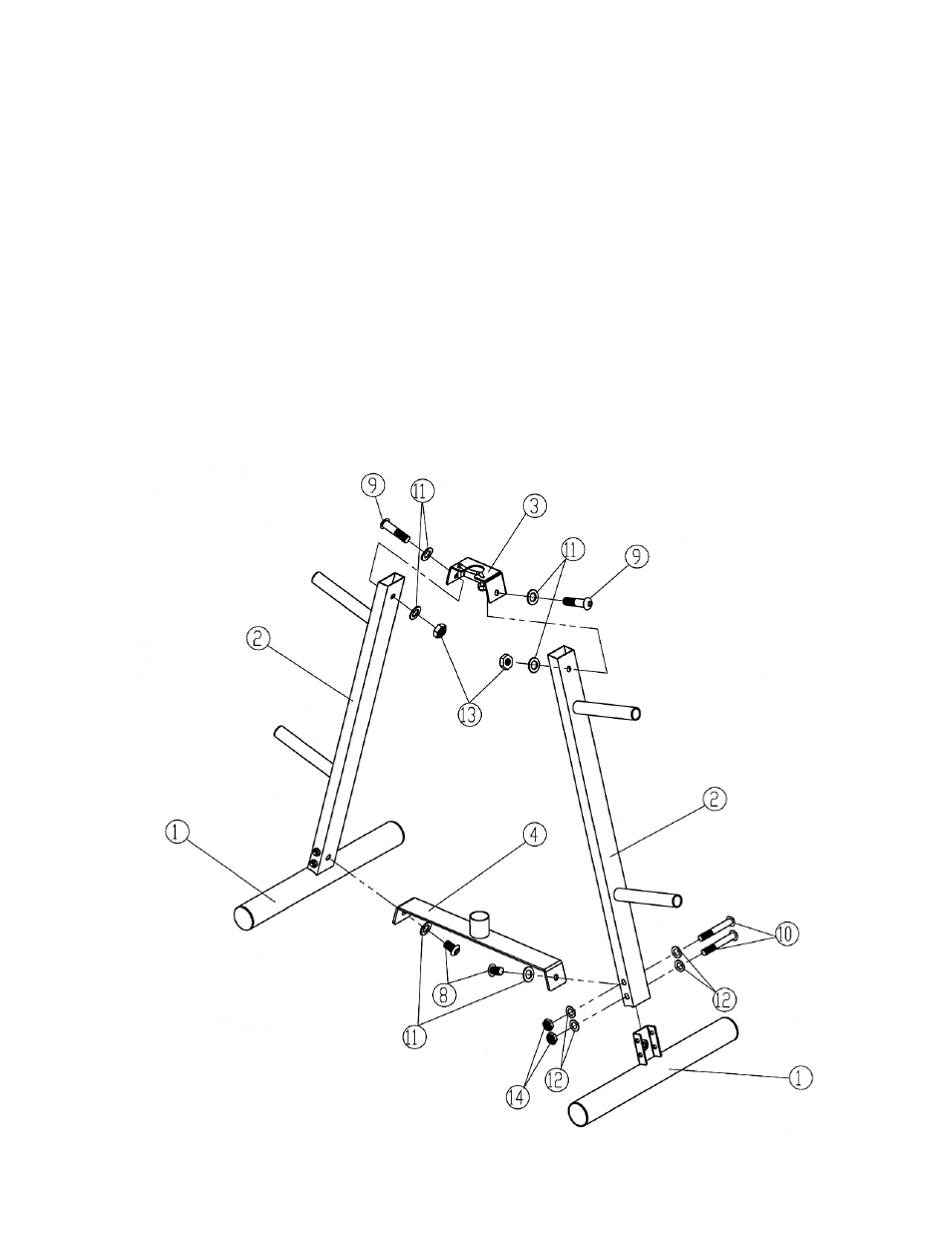

STEP 1 (See Exploded Diagram)

A.) Do not tighten all Nuts and Bolts until Procedure E.
B.) Attach a Post Frame (#2) to a Base Frame (#1). Secure it with two M8 x 2 3/8” Allen Bolts (#10),

four

∅

5/8” Washers (#12), and two M8 Aircraft Nuts (14). Repeat the same procedure to install

the other Post Frame to Base Frame.

C.) Connect the bottom of the two Post Frames with a Cross Brace (#4) in the mid-span. Secure

each of the Cross Brace with one M10 x 5/8” Allen Bolt (#8) and one Ø ¾” Washer (#11).

D.) Connect the top of the two Post Frames with a Bracket (#3). Secure each end of the Bracket

with one M10 x 1 5/8” Allen Bolt (#9), two Ø ¾” Washers (#11), and one M10 Aircraft Nut (#13).

E.) Securely tighten all Nuts and Bolts.

DIAGRAM 1
