ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Adjustable Wrench and Allen
Wrench
NOTE: It is strongly recommended this machine to be assembled by two or
more people to avoid possible injury.

STEP 1 (See Diagram 1)
A.) Attach a Rear Stabilizer (#11) to the bottom of the Upright Beam (#9). Secure it

with one Bracket (#15), four M10 x 2 ¾” Carriage Bolts (#12),

∅

¾” Washers

(#13) and M10 Aircraft Nuts (#14). Repeat the same step for the other side.

B.) Place the Backrest Adjustment Bar (#7) on the selected bar holder on the Upright

Beam (#9) to obtain desired incline of Backrest.

C.) Insert two Crutches (#4) into the top openings on the Upright Beams (#9). Secure

them with two Lock Knobs (#6) through selected holes to obtain desired height of
the Crutches. Make sure both sides are at the same height.

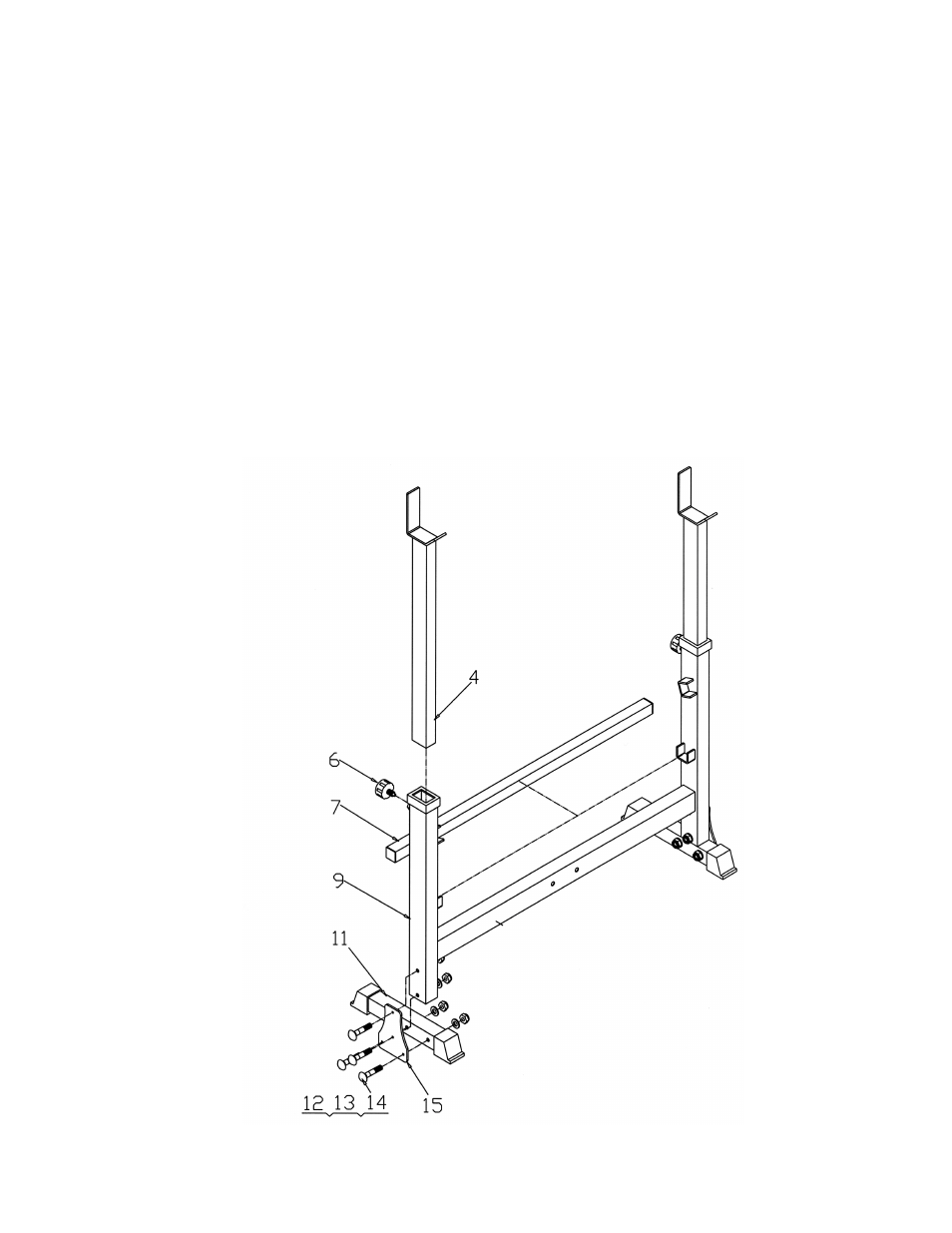

DIAGRAM 1
