English, 17) rf_id, 18) ci (chassis intrusion, case open) – Intel GA-8I945P PRO User Manual
Page 26
GA-8I945P (Pro)(-G) Motherboard
- 26 -
English

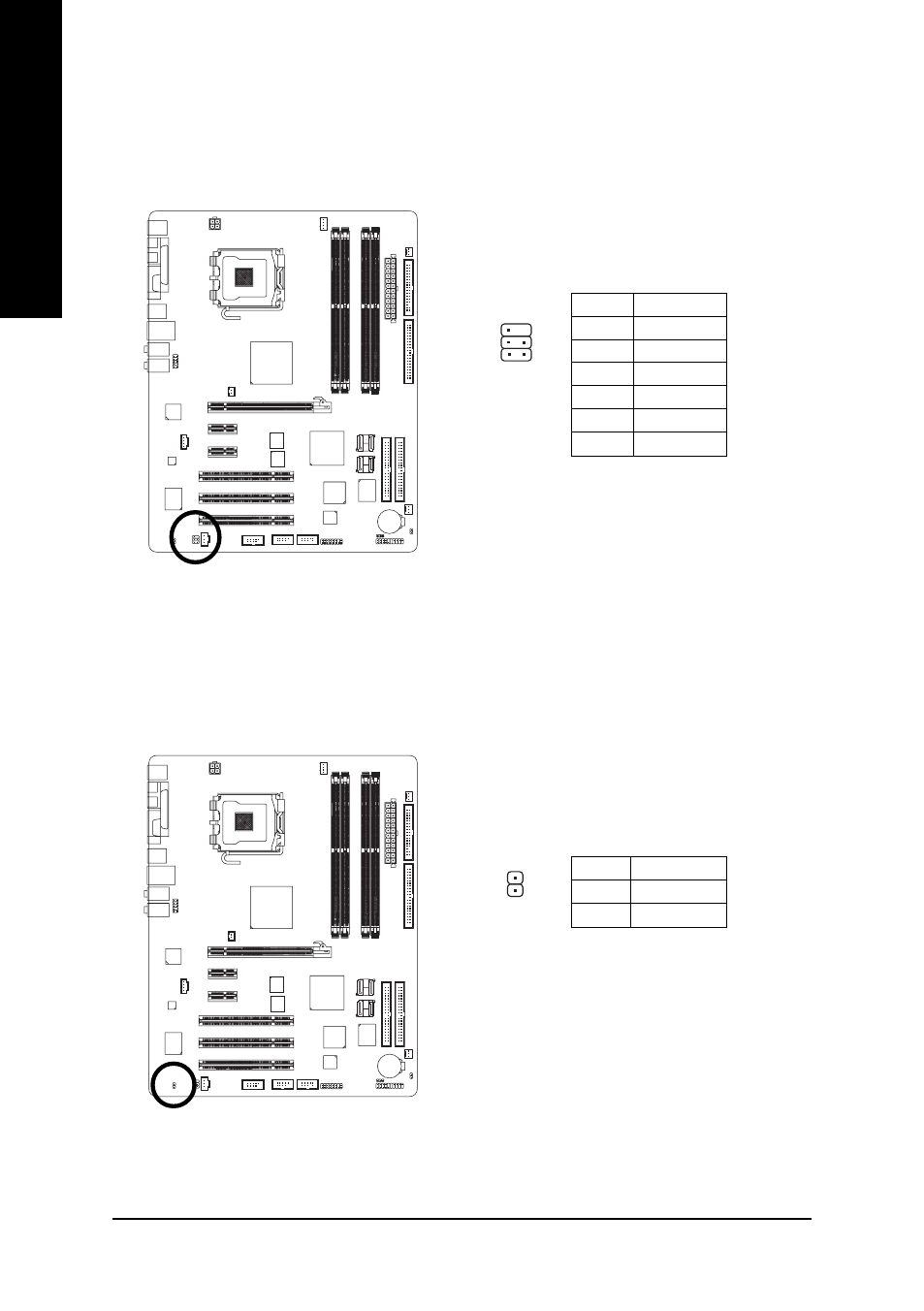

17) RF_ID
This connector allows you to connect external devices to use extra function. Check the pin
assignments before you connect the external device cable. Please contact your nearest dealer for the
optional GIGABYTE external device.
1
Pin No.
Definition
1
Power
2
RFID_RI-
3
RF_TXD
4
RF_RXD
5
NC
6
GND
18) CI (Chassis Intrusion, Case Open)
This 2-pin connector allows your system to detect if the chassis cover is removed. You can check
the "Case Opened" status in BIOS Setup.
Pin No.
Definition
1
Signal
2
GND
1
