Insignia NS-VDVD1 User Manual
Page 16
15
NS-VDVD1 Vertical DVD player
www.insignia-products.com

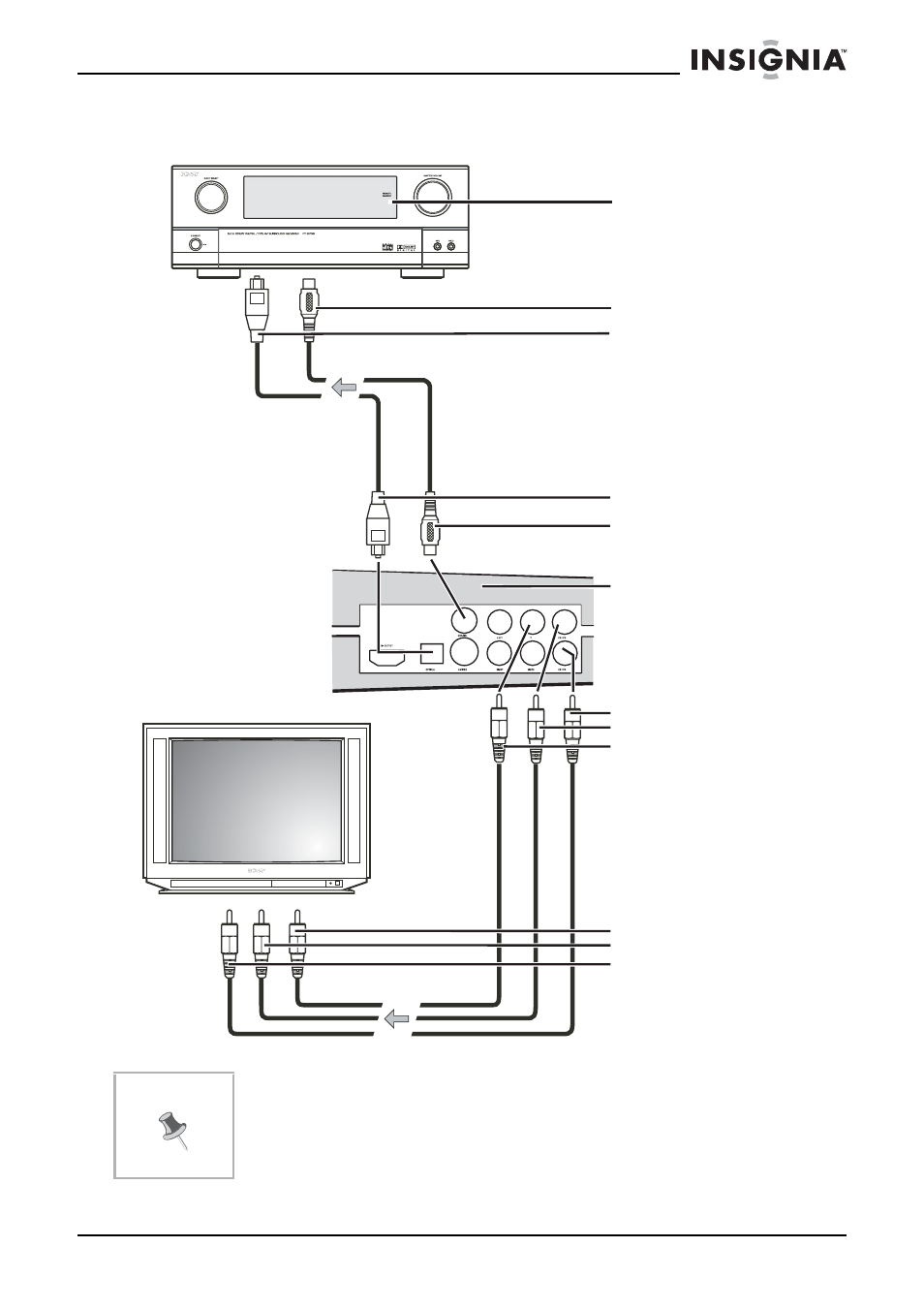

Connecting to an amplifier with a digital audio input and a TV
Note
When making connections:
• Turn off the DVD player and other equipment.
• Insert the plug fully.
• Hold the plug while unplugging the cord. Do not pull the cord.
DVD player
Cr video output
Amplifier
To optical digital
audio input
To digital coaxial
audio input
Cb video output
Y video output
Cr video input
Cb video input
Y video input
Optical digital audio
Digital coaxial audio
Connect either
