ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: Two Adjustable Wrenches and
Allen Wrenches. NOTE: It is strongly recommended that this machine to be
assembled by two or more people to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Slide two Ø 2 ½” x 1” Rubber Bumpers (#35) onto the two Guide Rods (#5). Insert
the two Guide Rods into the holes on the Rear Stabilizer (#2). Secure each Guide
Rod with one M10 x 1” Allen Bolt (#62) and one
∅
¾” Washer (#70) from the
bottom.
B.) Do not tighten Nuts and Bolts starting from this step until instructed to do
so.
C.) Attach the rear of Main Base Frame (#1) to the Rear Stabilizer. Secure them with
two M10 x 2 ½” Carriage Bolts (#60), one 4 3/8” x 1 ¾” Bracket (#22), two Ø ¾”
Washers (#70), and two M10 Aircraft Nuts (#72).
D.) Attach the Vertical Frame (#3) onto the Main Base Frame. Secure them with two
M10 x 2 ½” Carriage Bolts (#60), one 4 3/8” x 1 ¾” Bracket (#22), two Ø ¾”
Washers (#70), and two M10 Aircraft Nuts (#72).

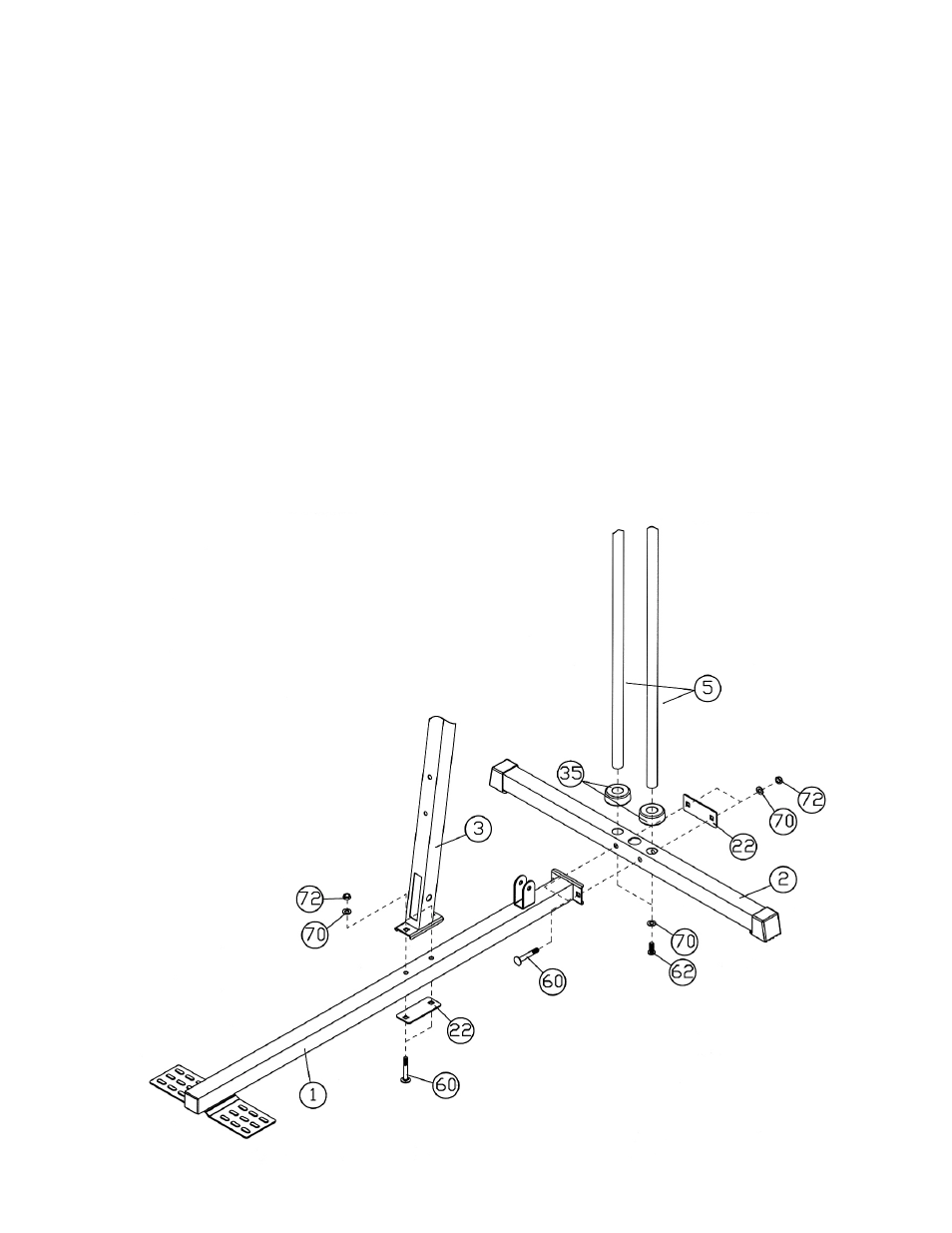

DIAGRAM 1
7
