Printable Area
The printer can print to the horizontal page perforations and within ½-inch (12.7 mm) of either vertical (tractor hole)
edge of the form. See
Figure 46 . With tractorless paper, the printer can print to ½-inch (12.7 mm) from either edge of
the form without print quality degradation.
Print quality may be degraded when printing near folding perforations, an internal perforation, or any cut in the form.
To ensure correct operation and print quality, maintain the following distances:
From non-folding and internal perforations: 0.05-inch (1.27 mm)
From folding perforations: for text, OCR, and bar codes: 0.33-inch (8.5 mm); for images and solid-area fill: 0.05-
inch (1.27 mm)
From binder holes and cuts: 0.1 inch-(2.54 mm).

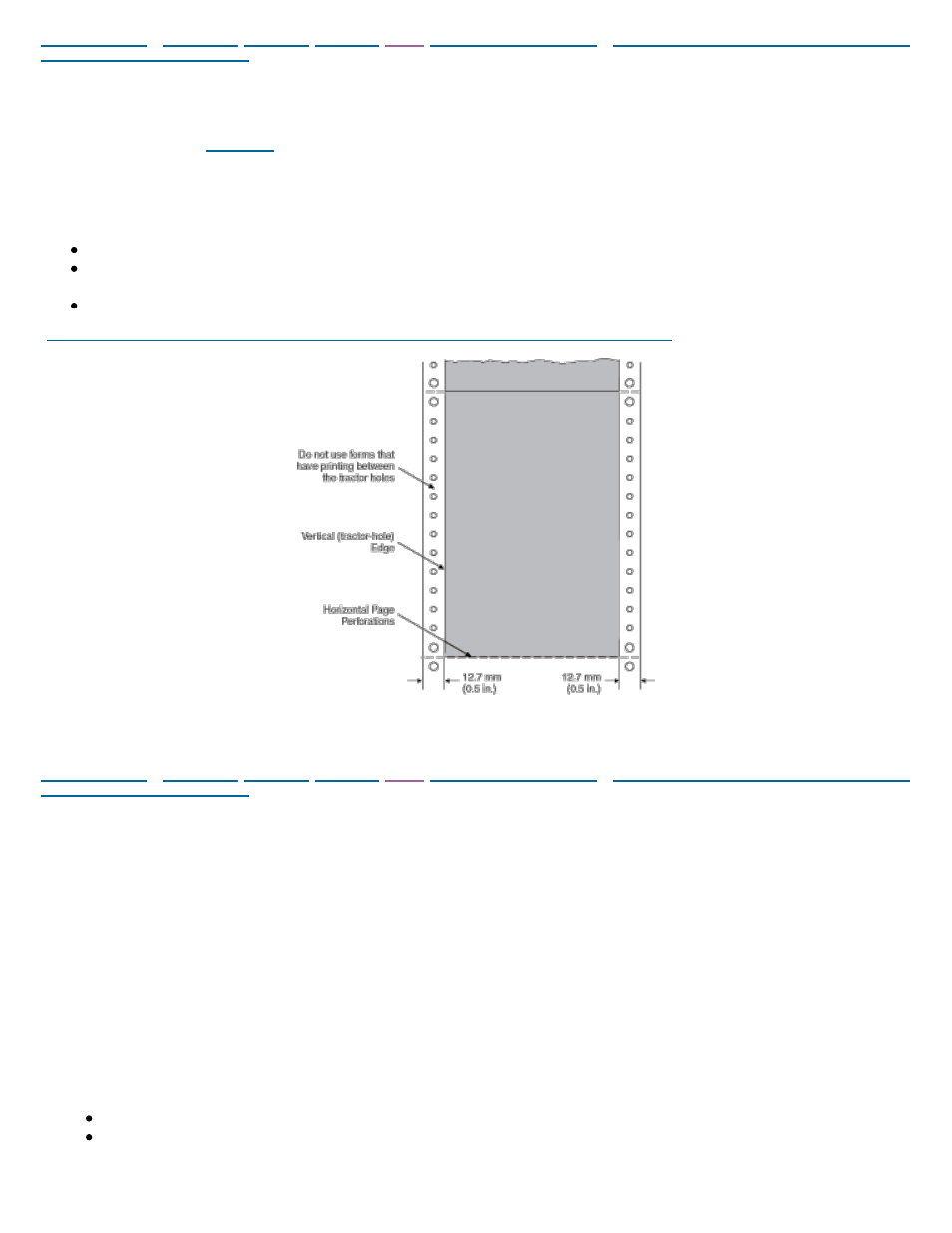

Figure 46. Printable Area on the Infoprint 4100-HD1/HD2 and 4100-PD1/PD2 Printers
Refer to the Continuous Forms Advanced Function Printers: Forms Design Reference, G544-3921.
Previous Page | Next Page Contents Glossary Index
IBM Printing Systems Printers > Infoprint 4100-HD1/HD2 and 4100-PD1/PD2 Printers
(4100-HD1/HD2 and 4100-PD1/PD2) >
Media Specifications
The Infoprint 4100-HD1/HD2 and 4100-PD1/PD2 printers accept the following media:
Media types:
Preprinted or blank fanfold forms, roll-feed paper, some labels
Media widths:
Tractor Feed
8.3 to 19.5 inches (210 mm to 495 mm) with tractor feed
Tractorless Feed
8.0 to 19.5 inches (203 mm to 495 mm) with tractorless feed
Media lengths:
5.82 to 17 inches (148 mm to 432 mm) with tractor feed using the internal stacker
5.82 to 54 inches (148 mm to 1372 mm) with the Signature Page feature and suitable post-processing
equipment
