STEP 4 (See Diagram 4)
A.) Insert the U-shaped Pin (#49) into the open slot on the Leg Developer Support (#13).
Secure it with one M6 x ½” Philips Screw (#47), Ø ½” Washer (#48), and Spring (#50).
B.) Attach the Leg Developer (#10) to the Leg Developer Support. Secure it with an Axle (#55),
two M10 x 5/8” Allen Bolts (#63) and two
 ¾” Washers (#66).
C.) Insert one Foam Tube (#22) halfway through the hole on the Leg Developer Holder. Insert
two Foam Tubes halfway through the holes on the Leg Developer. Push six Foam Rolls
(#31) onto the Tubes from both ends. Plug six Foam Roll End Caps (#32) into the ends.
D.) Slide an Olympic Sleeve (#30) onto the weight post on the Leg Developer. Attach a Spring
Clip (#54) to the Sleeve.

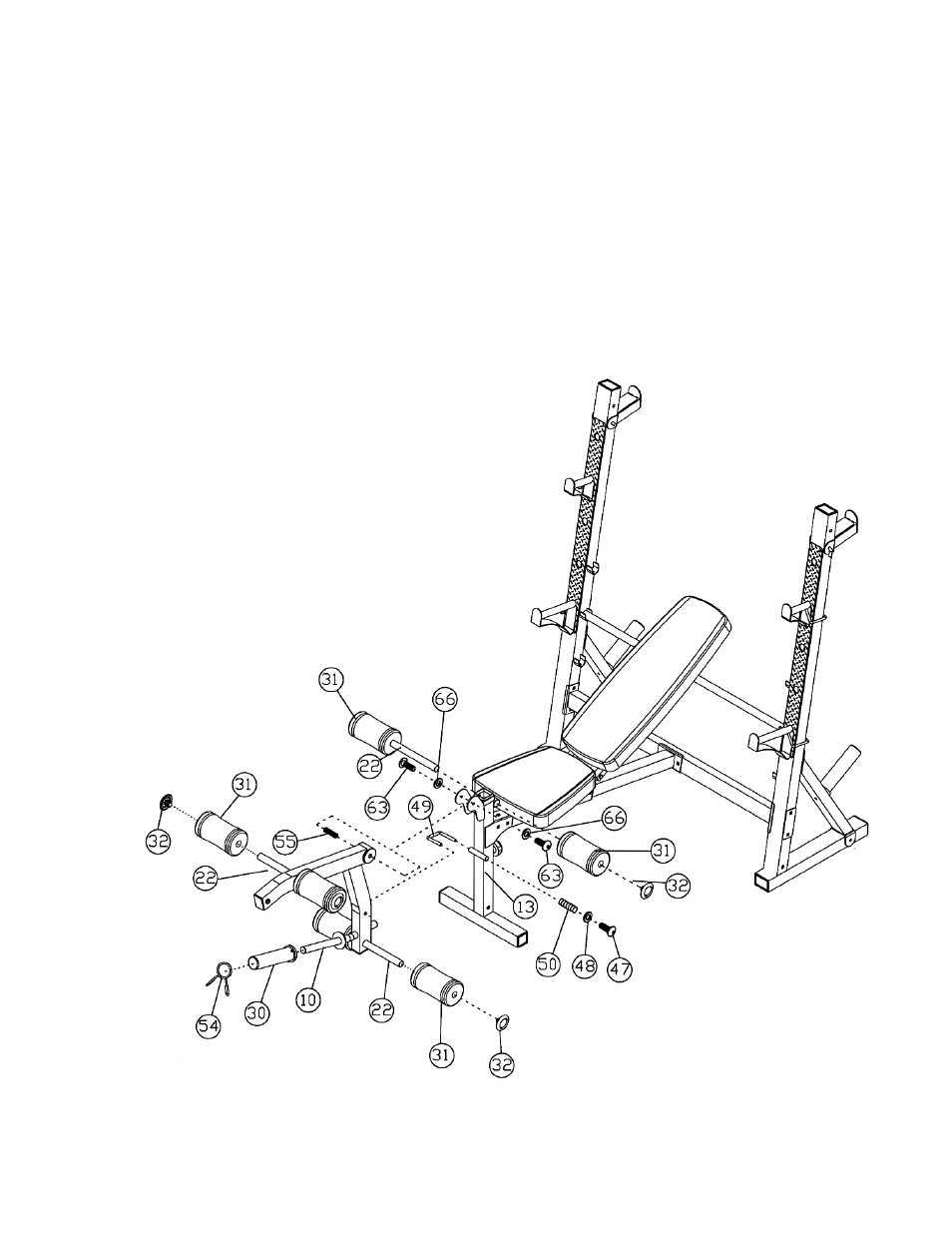

DIAGRAM 4
9
