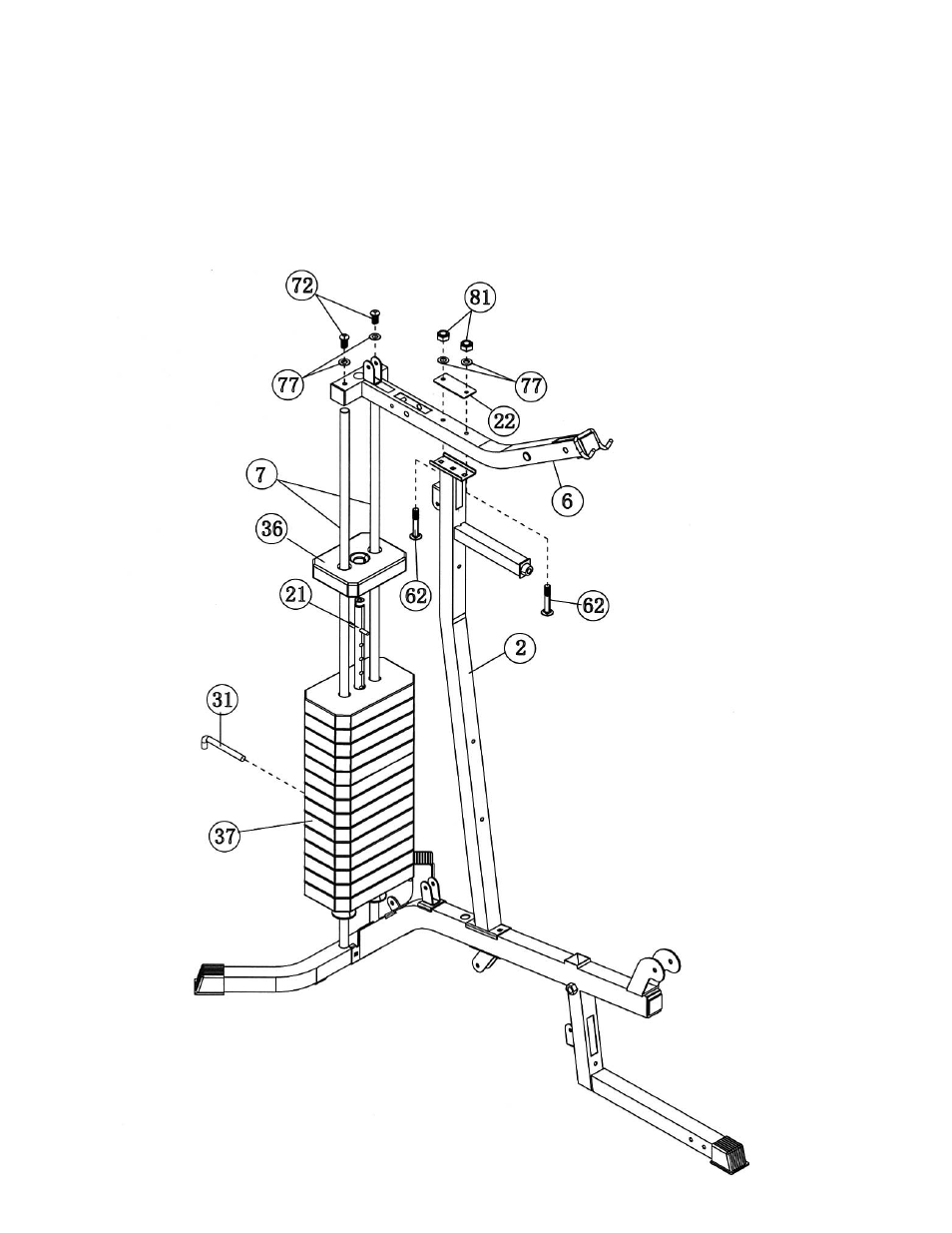

STEP 2 (See Diagram 2)
A.) Slide 14 Weight Plates (#37) onto the Guide Rods (#7). Align the holes on the Weight
Plates. Insert a Selector Rod (#21) through the center hole. Use a L-shaped Pin (#31) to
select the number of Weight Plates. Slide the Selector Stem (#36) onto the Guide Rods.
B.) Attach the holes on the Upper Frame (#6) onto the Guide Rods. Place the Upper Frame
onto the Vertical Frame (#2).
C.) Secure the Upper Frame (#6) to the Guide Rods (#7) with two M10 x 1” Allen Bolts (#72) and
Ø ¾” Washers (#77).
D.) Secure the Upper Frame to the Vertical Frame with two M10 x 2 ¾” Carriage Bolts (#62),
one 4 ¾” x 2” Bracket (#22), two
∅
¾” Washers (#77), and two M10 Aircraft Nuts (#81).
