RS-232 Serial Console Port

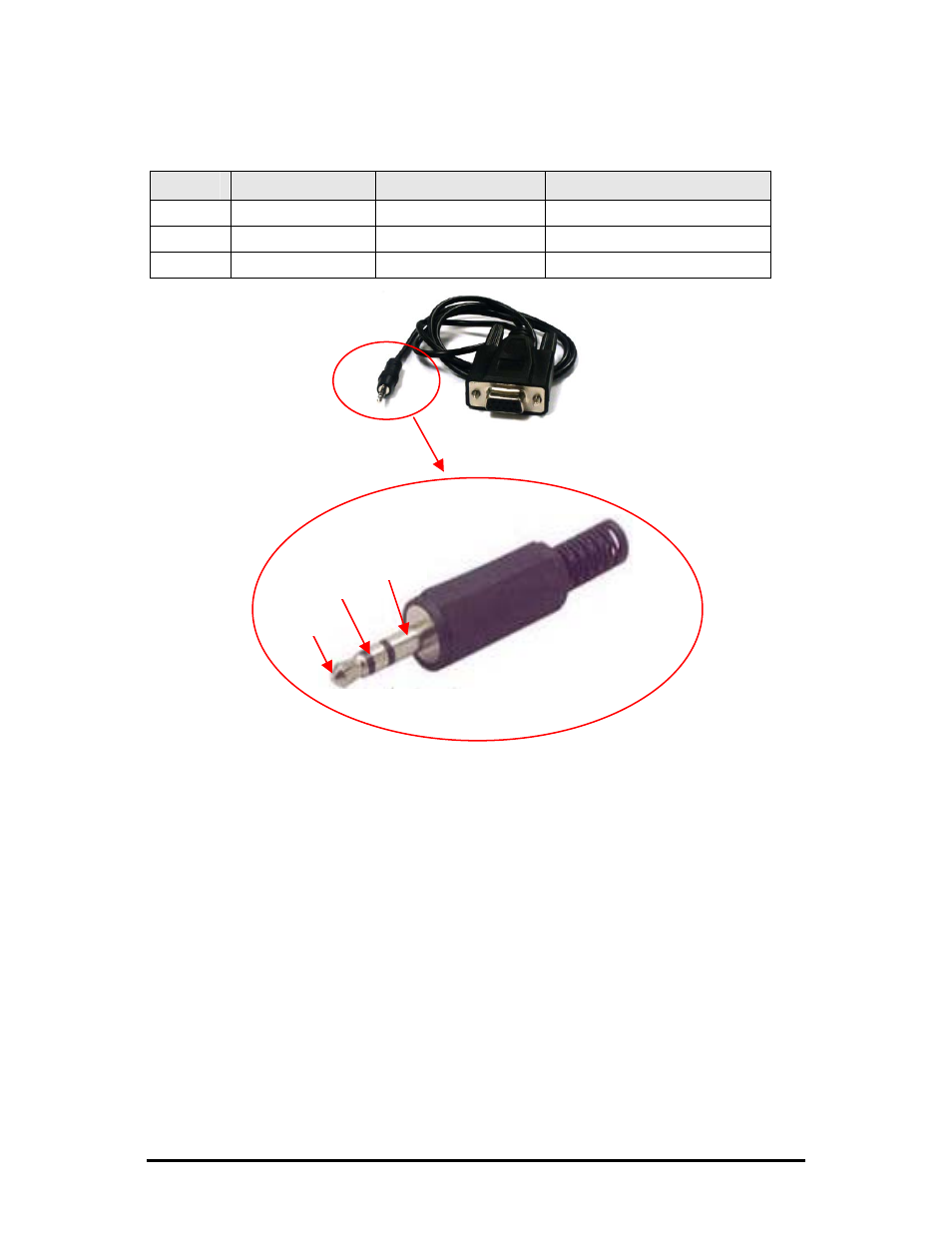

The following table lists the pin configuration for the RS-232 3-pin Mini Jack mating
connector for the console serial port.
Pin
DB9-F Pin#
Signal Name
Direction
Tip 2 Transmit Out
of
Unit
Ring
3
Receive
In to Unit
Sleeve 5
Return
Return
Ring
Tip
Sleeve
