ASSEMBLY INSTRUCTION

Tools Required to Assemble the Machine: Two Adjustable Wrenches and
Allen Wrenches
NOTE: It is strongly recommended this machine to be assembled by two
or more people to avoid possible injury.

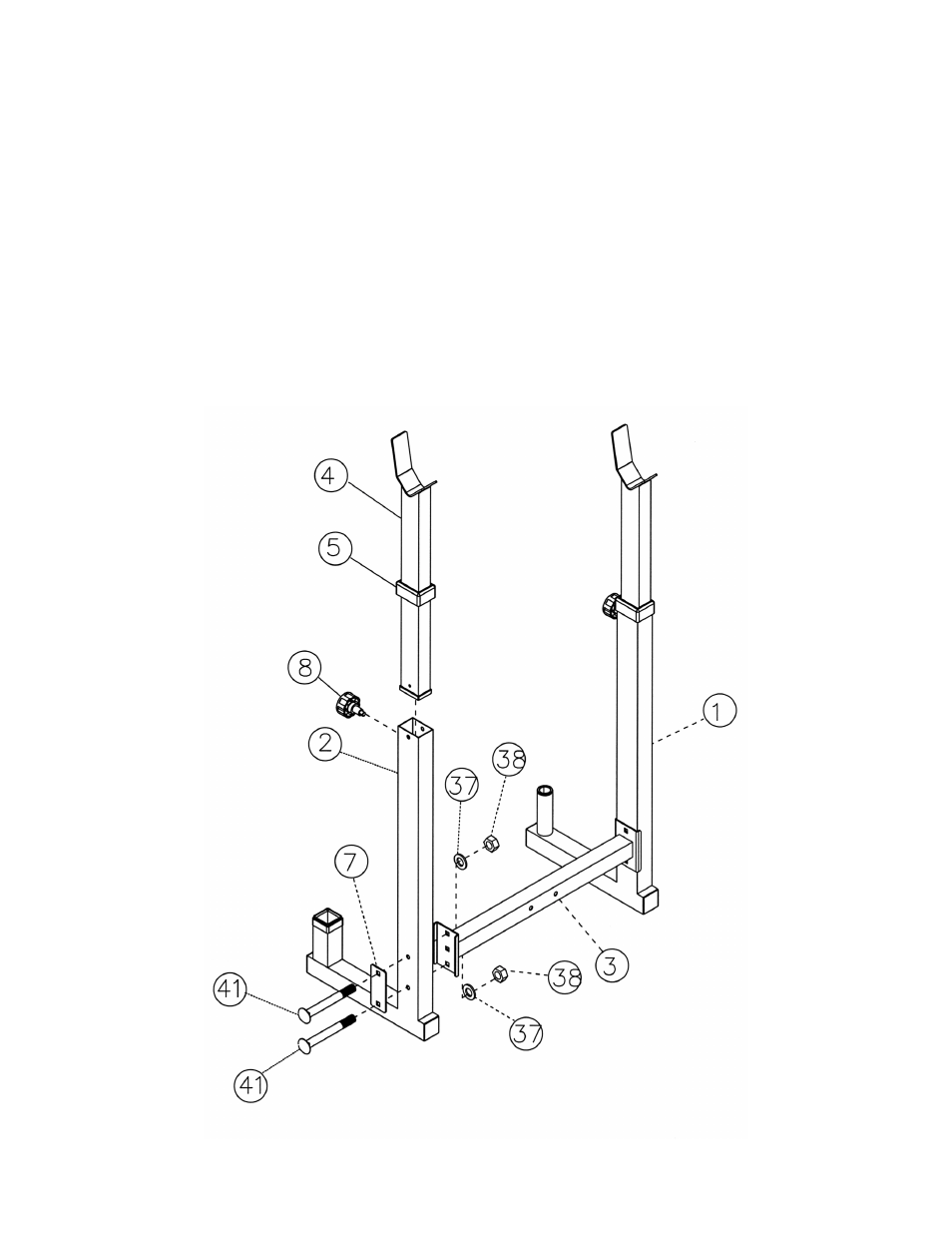

STEP 1 (See Diagram 1)
A.) Connect the Left & Right Upright Beams (#1) & (#2) by a Cross Brace (#3) in

the mid-span. Align the holes and secure them with one 4 ¾” Bracket (#7),
two M10 x 2 ¾” Carriage Bolts (#41), two

∅

¾” Washers (#37), and two M10

Aircraft Nuts (#38) on each end of the Cross Brace.

B.) Insert two Crutches (#4) into the top openings on the Upright Beams. Secure

them with two Lock Knobs (#8) through selected holes to obtain desired
height of the Supports.

DIAGRAM 1
