Impex MWB-6901 - Manual (Page 7)

STEP 2 (See Diagram 2)
A.) Attach the Adjustable Foam Tube (#6) and Bracket (#7) to the open slot on the Front
Stabilizer (#1). Secure them together with a Lock Knob (#19) at desired height.
B.) Slide the Foam Tube (#8) halfway through the tube on the Main Frame (#2).
C.) Push two Large Foam Rolls (#9) onto the Foam Tube from both ends.
D.) Push two Small Foam Rolls (#10) onto the Adjustable Foam Tube from both ends.
E.) Plug four Foam Roll End Caps (#15) into the ends of the Tubes.

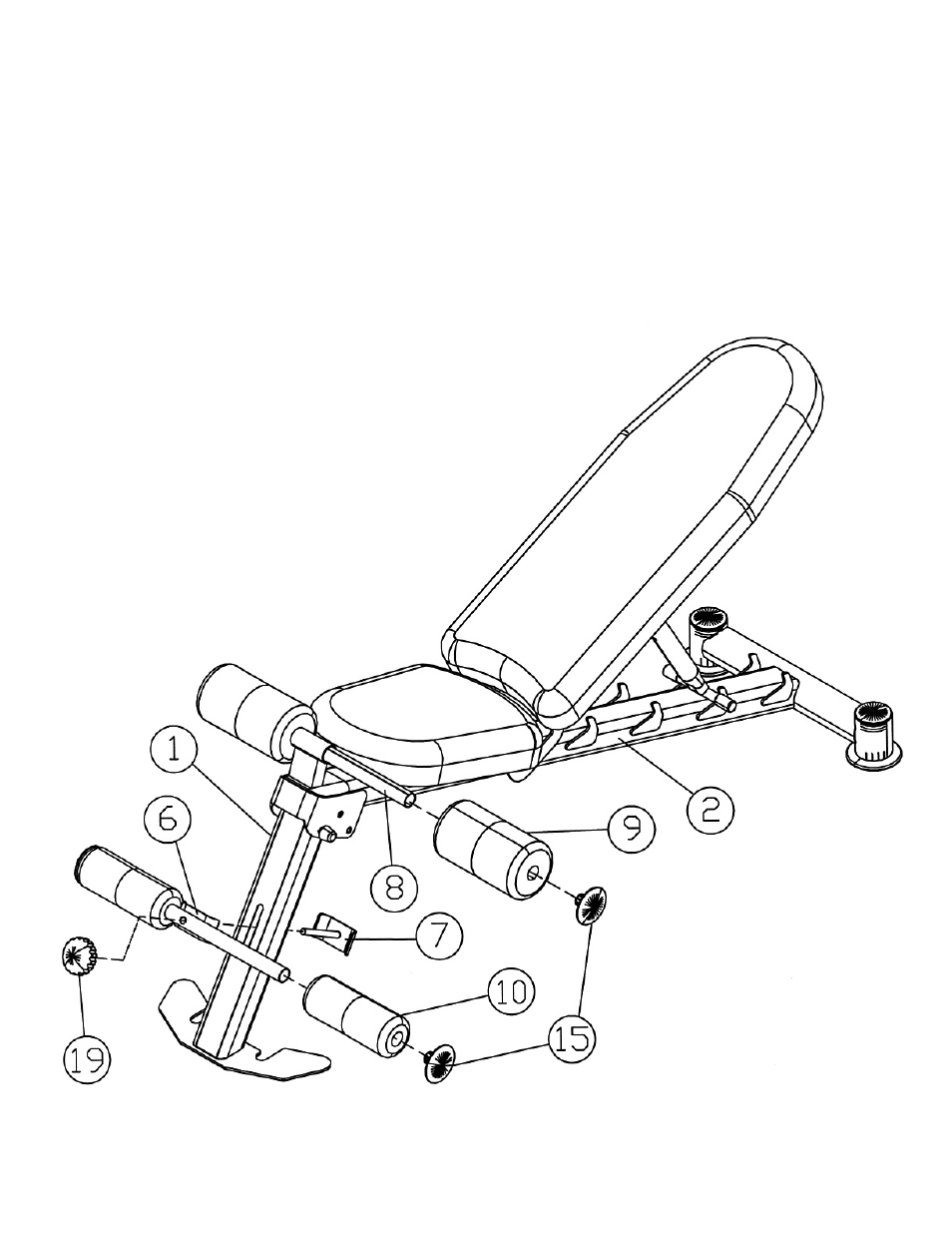

DIAGRAM 2
6
