DBPXA250 and DBPXA210 Development Platforms Specification Update
17
Intel
®
DCPXA250 Processor Card
7.
For ARM* Multi-ICE* JTAG Use
Problem:
JTAG connection fails when using ARM Multi-ICE tools.
Implication:
No JTAG debugging facility is available with ARM Multi-ICE.
Workaround:
Perform the following steps to fix the problem.
Note:
This ECO does not affect the performance of other JTAG tools.
1. Cut the trace on the top of the processor card between U1 pin 3 and via to the right.
2. Add 30-AWG wire from the J3-3 to the via of U1 pin 1 on the bottom of the processor card.
Note:
Step 3 is not required for the Rev C and Rev D DCPXA250 processor cards and ARM Multi-ICE
with their own power supply.
3. Add a 30-AWG wire from J3-2 to +3.3 V.
Status:
Fixed
Board Rev:
Rev C and D

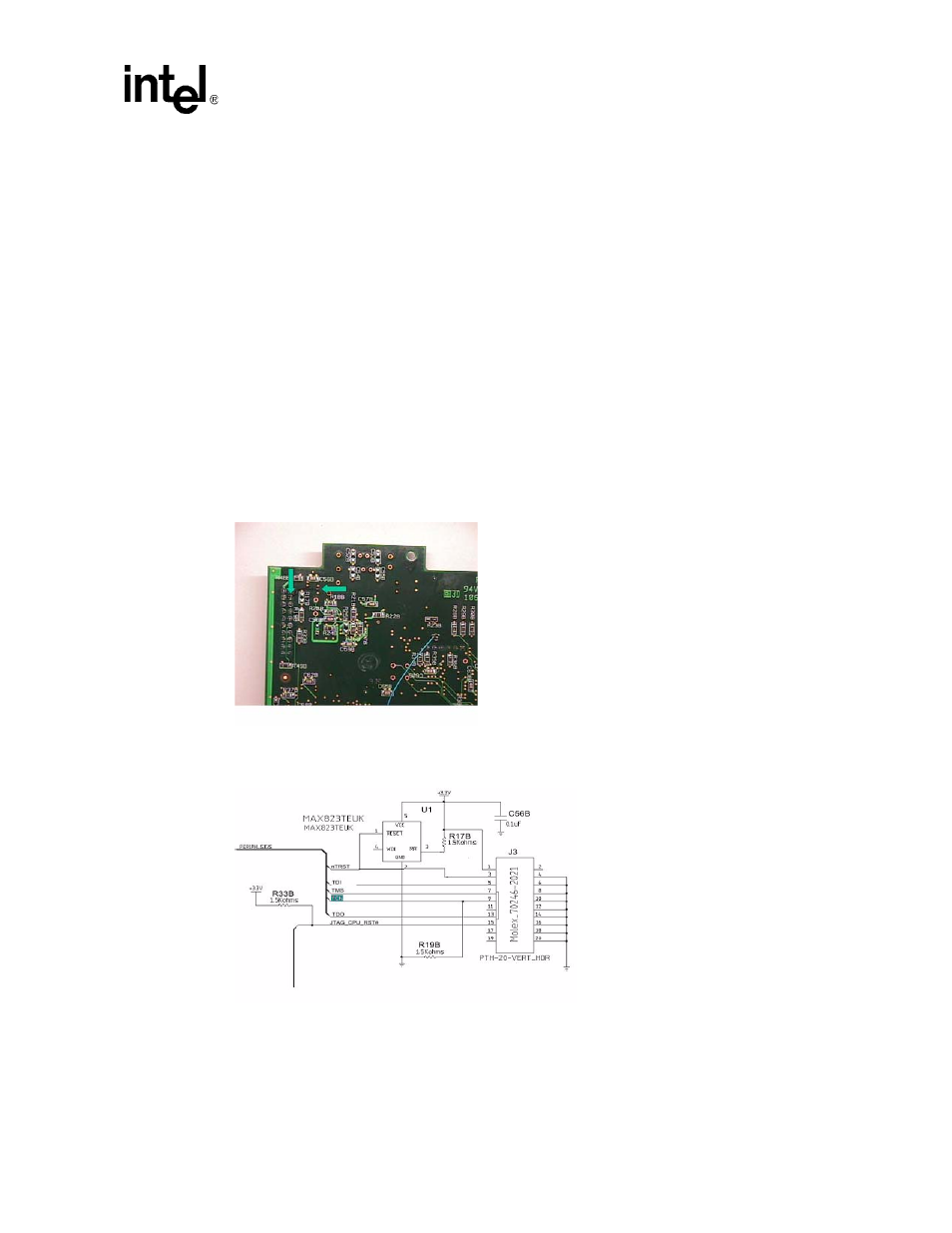

Figure 7. Wire From The J3-3 To The Via Of U1 Pin 1
Figure 8. Schematic Of JTAG Modification
