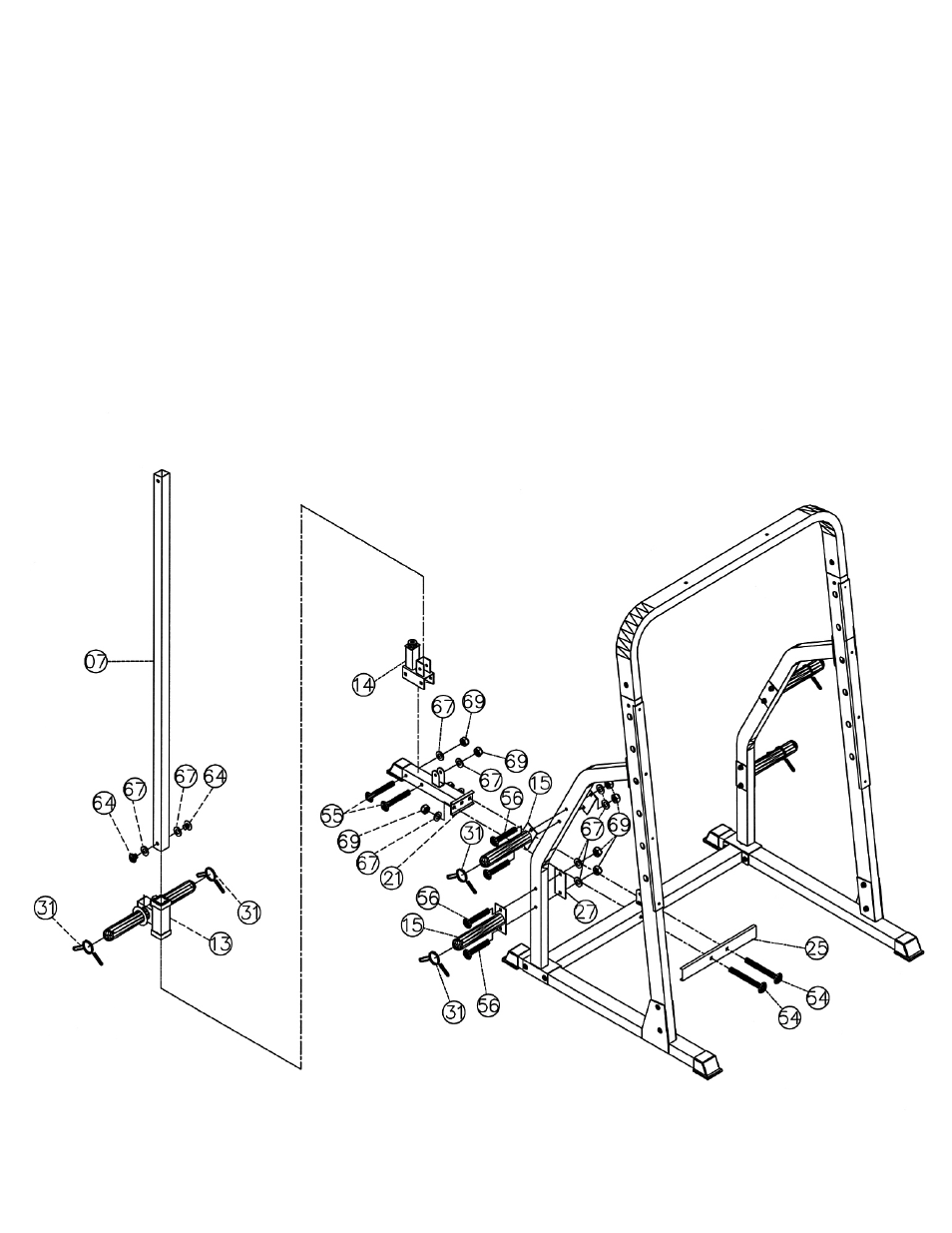

STEP 3 (See Diagram 3)

A.) Attach the Rear Stabilizer (#21) and the Chromed Foot Support (#25) to the Cross

Brace (#3). Secure them with two M10 x 3 ½” Carriage Bolts (#54), Ø ¾” Washers
(#67) and M10 Aircraft Nuts (#69).

B.) Attach the Support Bracket (#14) to the Rear Stabilizer. Secure it with two M10 x 2 ¾”

Carriage Bolts (#55), Ø ¾” Washers (#67) and M10 Aircraft Nuts (#69).

C.) Slide the Sliding Weight Post (#13) onto the Rear Vertical Frame (#7). Attach the

Vertical Frame to the Support Bracket (#14). Secure it with two M10 x 5/8” Allen Bolts
(#64) and Ø ¾” Washers (#67). Attach two Spring Clips (#31) to the posts.

D.) Attach four Olympic Weight Posts (#15) to the Right & Left Supports (#5 & 6). Secure

each Post with two M10 x 2 3/8” Carriage Bolts (#56), one 4 ¾” x 2 3/8” Bracket (#27),
two Ø ¾” Washers (#67), and two M10 Aircraft Nuts (#69). Attach a Spring Clip to each
Post.

DIAGRAM 3
