STEP 2 (See Diagram 2)
A.) Attach the Main Stabilizer (#21) to the Cross Brace (#3). Secure it with a 4 3/8” x 1 ½”
Bracket (#43), two M10 x 2 ½” Carriage Bolts (#28),
∅
¾” Washers (#33), and M10
Aircraft Nuts (#38).
B.) Attach the Front Support (#10) to the Main Stabilizer (#21). Secure it with one M10 x 2
3/8” Allen Bolt (#36) and
∅
¾” Washer (#33).
C.) Attach one end of Man Seat Support (#4) to the Main Stabilizer (#21). Secure it with two
M10 x 2 ½” Carriage Bolts (#28),
∅
¾” Washers (#33), and M10 Aircraft Nuts (#38).
D.) Attach the other end of Main Seat Support (#4) to the Front Support (#10). Secure it
with two M10 x 1” Carriage Bolts (#29),
∅
¾” Washers (#33), and M10 Aircraft Nuts
(#38).

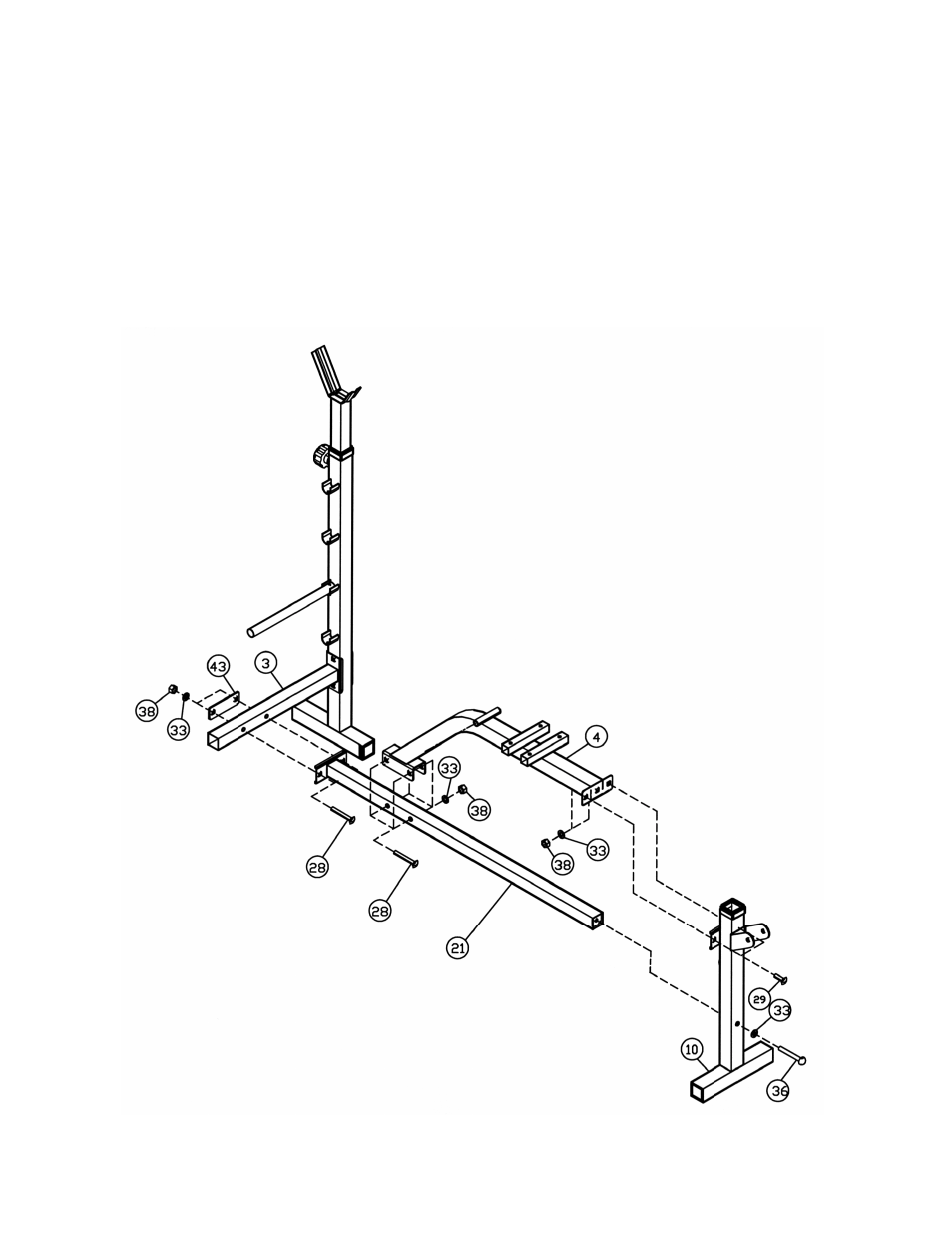

DIAGRAM 2
