9

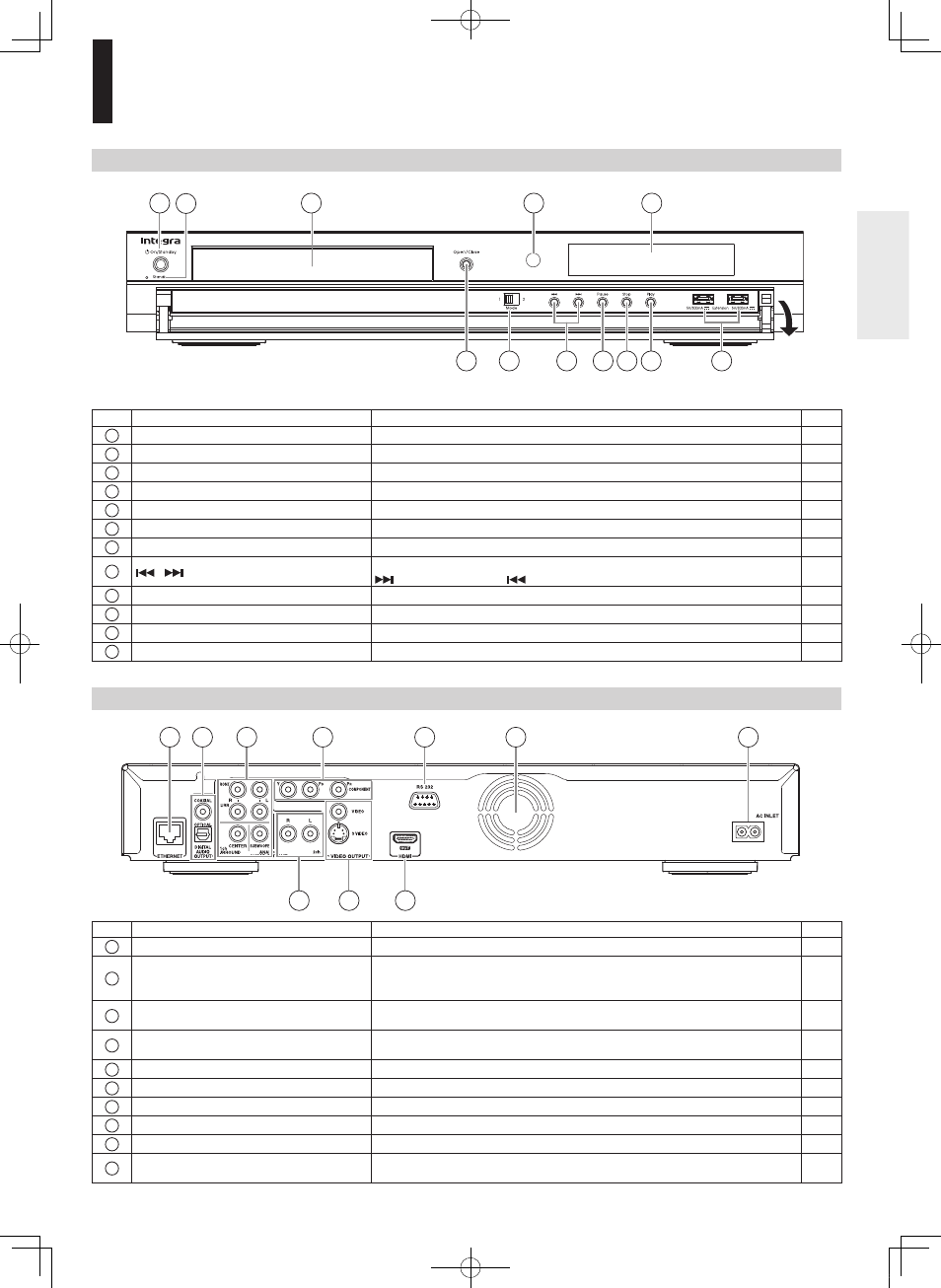

Index to parts and controls
Front panel
Rear panel
No. Control Function Page
1 On/Standby button Turns the power on or restores the unit to the standby mode. 18
2 Standby indicator Blue: power on / Red: standby mode 18
3 Disc tray Loads a disc into the disc drive. 27
4 Remote sensor Receives infrared signals from the remote control. 11
5 Front panel display See the next page. 10
6 Open/Close button Opens and closes the disc tray. 27
7 Mode switch Selects the video output jack. 13
8 / (Skip) buttons
Locates a chapter or track.
: forward direction / : reverse direction
28
9 Pause button Stops playback momentarily. 28
10 Stop button Stops playback. 28
11 Play button Starts playback. 27
12 Extension port For future functions. 31
No . Control Function Page
1 ETHERNET port Use this to connect to a network with an always-on broadband connection. 17
2
DIGITAL AUDIO OUTPUT OPTICAL/
COAXIAL jack
Outputs digital audio signals. Connect to a digital audio input on an
amplifier equipped with digital audio decoder. When connecting the optional
digital cable, fit the connector into the jack firmly.
15
3
ANALOG AUDIO OUTPUT 5.1ch
SURROUND jacks Outputs analog audio signals. Connect to an amplifier equipped with 5.1
channel audio input.
16
4 COMPONENT VIDEO OUTPUT jacks
Outputs video signals to a connected TV or monitor.
Connect to a TV or monitor equipped with component video jacks.
14
5 RS- jack Used for custom control devices. –
6 Ventilation fan Do not cover the ventilation holes. –
7 AC INLET socket Connect the supplied power cord. 18
8 ANALOG AUDIO OUTPUT ch jacks Outputs audio signals to a connected TV or AV amplifier. 16
9 VIDEO OUTPUT (VIDEO, S VIDEO) jack Outputs video signals to a connected TV or amplifier. 15
10 HDMI OUT jack
Outputs video/audio signals to a connected TV, monitor or AV amplifier.
Connect to a TV, monitor or AV amplifier equipped with HDMI input.
14
* The above illustration displays the front panel with the cover open.
