9

Insignia 47" LCD TV

www.insigniaproducts.com

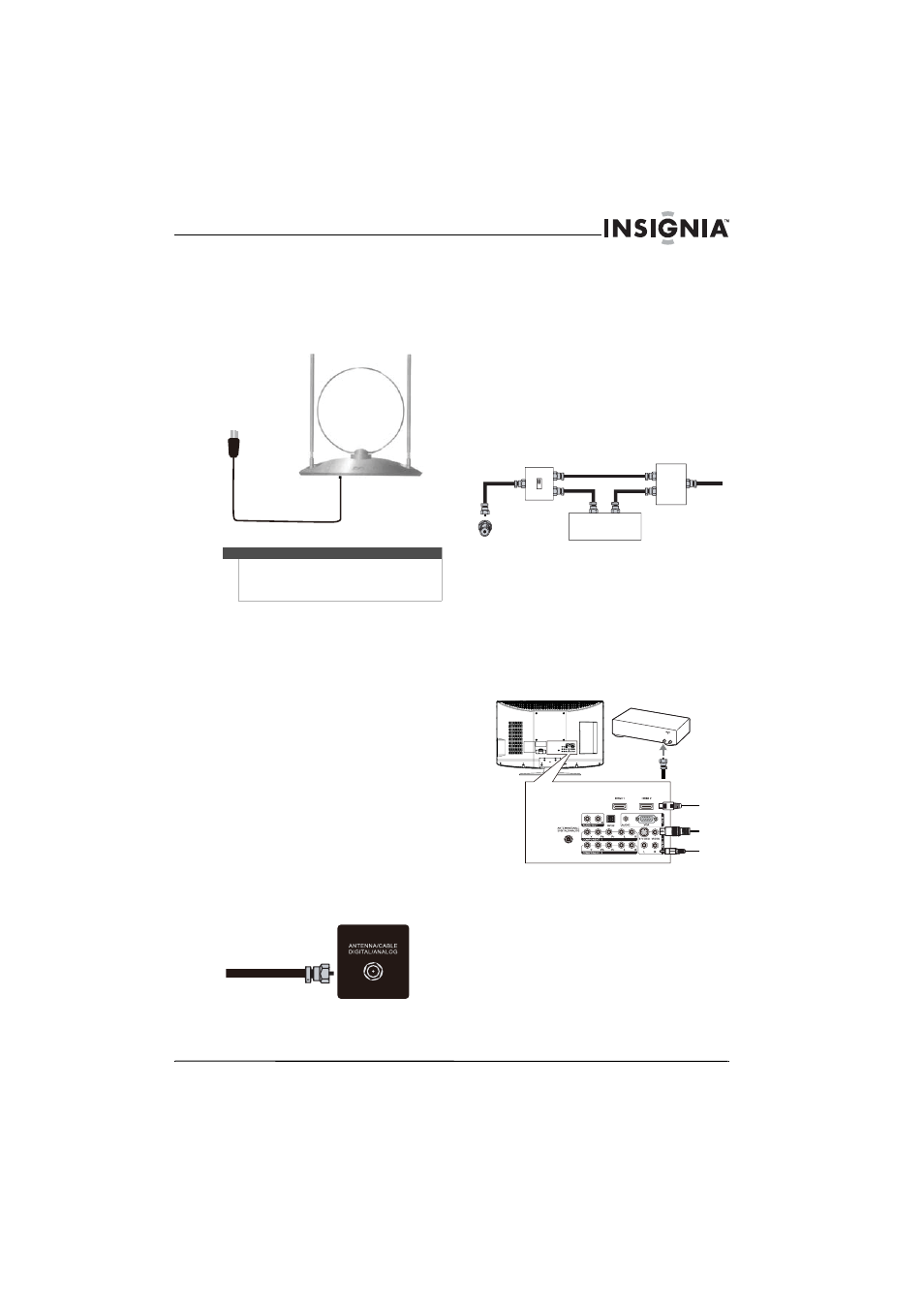

Connecting an indoor antenna

To connect an indoor antenna:

1 Turn off your TV and all connected equipment.

2 Connect the included dual-telescoping dipole

antenna to the ANTENNA/CABLE
DIGITAL/ANALOG
jack on the back of your TV.

Connecting cable TV

Your TV has a 75 ohm jack for connecting cable TV.
Some cable TV providers scramble the signals for
“premium” (pay) channels. To view these channels,
you need a converter/descrambler box.
If you do not require a converter/descrambler box,
you can connect your cable TV directly to your TV.
For more information, see “No
converter/descrambler box”
on page 9.
If you require a converter/descrambler box, you can
connect your cable TV using an RF switch (not
included). For more information about connecting
a converter/descrambler box, see “With
converter/descrambler box”
on page 9 and contact
your cable TV provider.
You can also connect cable TV using an HDMI,
component video, S-Video, or AV connection,
depending on your cable box. For more
information, see “Connecting cable TV via a cable
TV box”
on page 9.

No converter/descrambler box

To connect cable TV without a
converter/descrambler box:

1 Connect one end of a 75 ohm cable to the

coaxial jack on the back of your TV.

2 Connect the other end of the cable to the cable

TV wall outlet.

With converter/descrambler box

If your cable box descrambles only some channels
(such as premium channels), you need a two-way
splitter, an RF (A/B) switch, and four lengths of
antenna cable. The two-way splitter and RF switch
are not provided.

To connect cable TV with a
converter/descrambler box:

• Use the following illustration as a guide to

connect a converter/descrambler box.
Set the RF switch to the A position to tune to
unscrambled channels using your TV remote
control. Set the RF switch to the B position to
watch scrambled channels using the
converter/descrambler controls.

Connecting cable TV via a cable TV box

1 Connect the incoming cable from the cable wall

jack to the cable-in jack on the cable box.

2 Depending on the jacks available on the cable

box, connect a cable from the outgoing jacks on
the cable box to the corresponding jacks on the
back of your TV. The connection can be to the
cable-out, HDMI, component video, S-Video, or
AV jack.

3 If you use a component video, S-Video, or AV

cable, connect an audio cable to the
corresponding jacks on the back of your TV and
on the cable box.

Note

Distance from the transmitting source, a man-made
shelter, or natural atmospheric conditions might
influence the reception, which is not related to
antenna performance.

RF switch

Cable converter/descrambler box

Two-set signal splitter

Out

In

A

B

TV

OUT

IN

ANTENNA

Back of TV

Cable box

HDMI

Video or S-Video

Component
