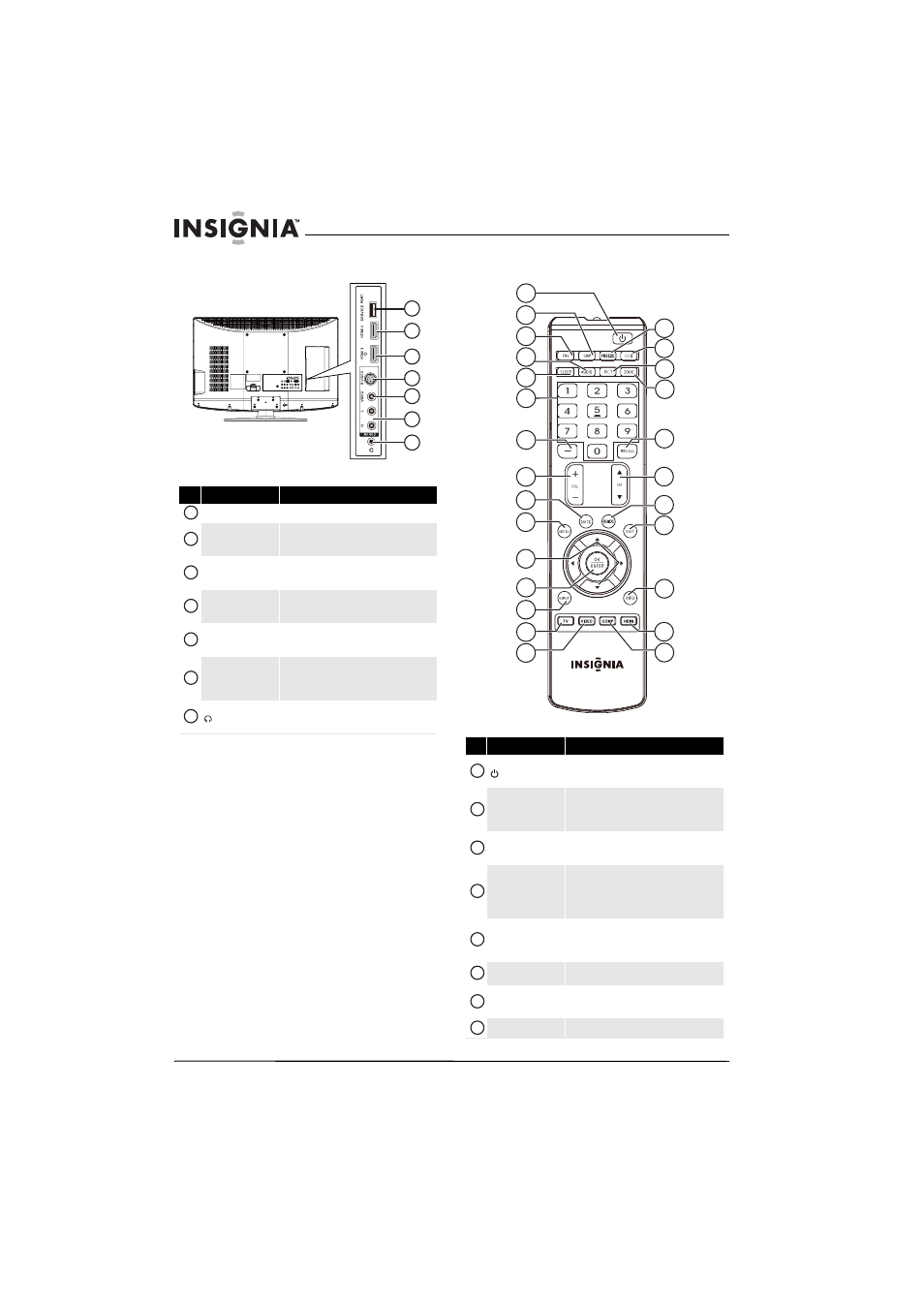

NS-L47Q09-10A Insignia 47" LCD TV

www.insigniaproducts.com

Side

Remote control

Jack

Description

SERVICE PORT

For service only.

HDMI 4

Connect an HDMI device to this jack. For more
information, see “Connecting an HDMI device” on
page 11.

HDMI 3

Connect an HDMI device to this jack. For more
information, see “Connecting an HDMI device” on
page 11.

AV IN 2 S-VIDEO

Connect the video for an S-Video device to this jack.
For more information, see “Connecting an S-Video
device” on page 12.

AV IN 2 VIDEO

Connect the video for a standard AV device to this
jack. For more information, see “Connecting a VCR”
on page 10.

AV IN 2 L/R

Connect the audio for an S-Video or standard AV
device to these jacks. For more information, see
“Connecting an S-Video device” on page 12 or
“Connecting a VCR” on page 10.

(headphone)

Connect headphones to this jack. For more
information, see “Connecting headphones” on
page 13.

Button

Description

(power)

Press to turn your TV on or off (standby mode).
When your TV is off, power still flows into it. To
disconnect power, unplug the power cord.

SAP

In analog TV mode, press to select Stereo, Mono,
or SAP. In digital TV mode, press to select the audio
track (language). For more information, see
“Adjusting the sound” on page 19.

FAV

Press to open the Favorite Channel list. For more
information, see “Setting up a favorite channel list”
on page 20.

AUDIO

When the Equalizer option is turned on, press to
toggle among different Equalizer modes. When the
Equalizer option is turned off, toggle to adjust the
treble, bass, or SRS TruSurround HD. For more
information, see “Adjusting the sound” on page 17.

SLEEP

Press to set the sleep timer. You can select Off, 5,
10, 15, 30, 60, 90, 120, 180, or 240 minutes. For
more information, see “Setting the sleep timer” on
page 28.

Numbers

Press to enter channel numbers or the parental
control password.

—

Press to enter a digital sub-channel number. For
more information, see “Selecting a channel” on
page 16.

VOL+/VOL–

Press to increase or decrease the volume.
