14

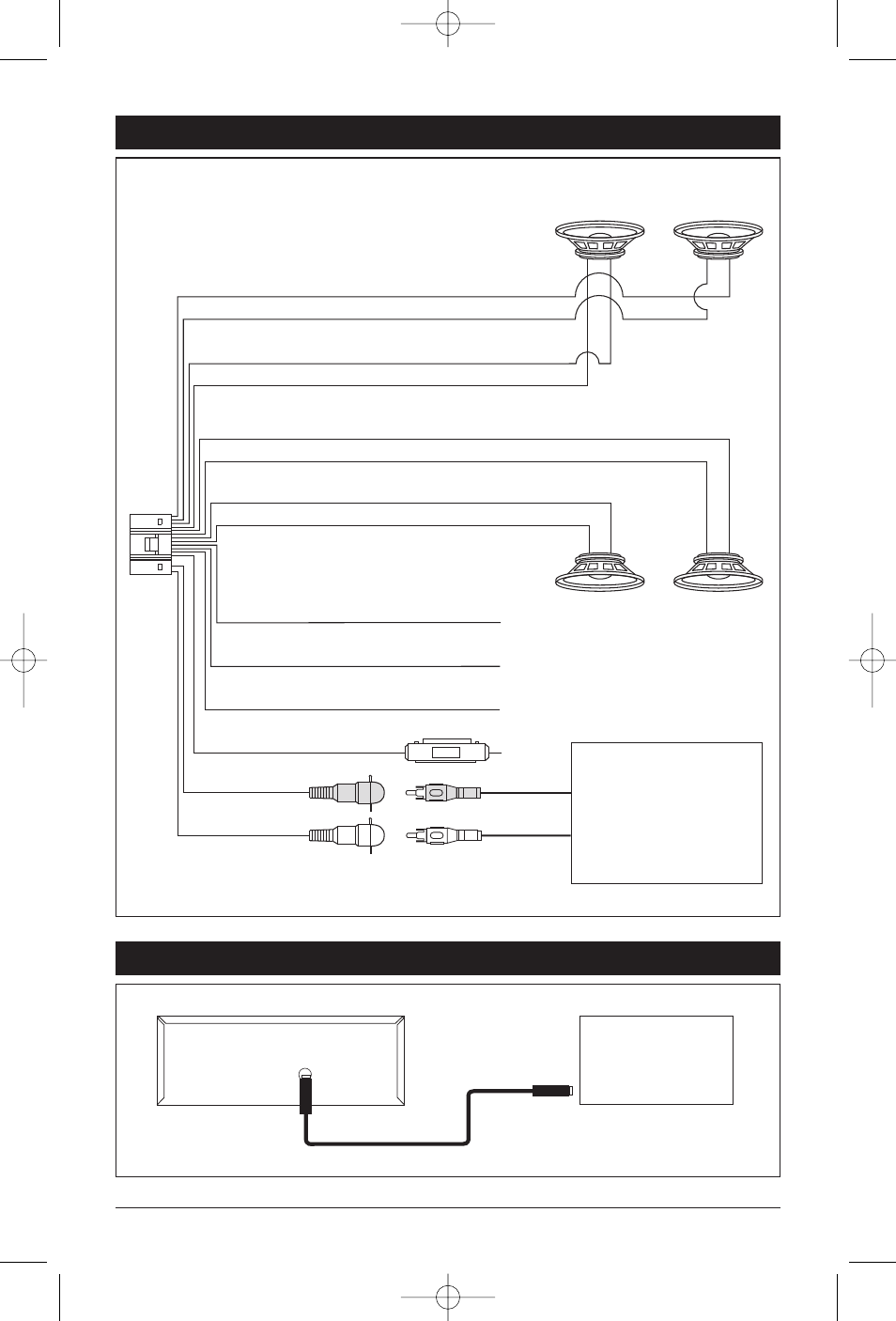

Left
Front Speaker
Left
Rear Speaker
+ -
+ -
Blue Wire: Power Antenna
Yellow Wire: 12 VDC Constant
Black Wire: Ground
Green Wire: Rear Left Speaker (+)
Green/Black Wire: Rear Left Speaker (-)
Right
Rear Speaker
Right
Front Speaker
+ -
+ -
White Wire: Front Left Speaker (+)
Gray/Black Wire: Front Right Speaker (-)
White/Black Wire: Front Left Speaker (-)
Gray Wire: Front Right Speaker (+)
Red Wire: Ignition Switched 12 VDC
Purple/Black Wire: Rear Right Speaker (-)
Purple Wire: Rear Right Speaker (+)
1 AMP
Audio Amplifier
See Amplifier Instructions
for Proper Connections
Speaker Connection
Sirius Tuner Connection (Optional)
M9900CDS
M9SIR
Male/Male Mini Din
(Supplied with Sirius Tuner)
