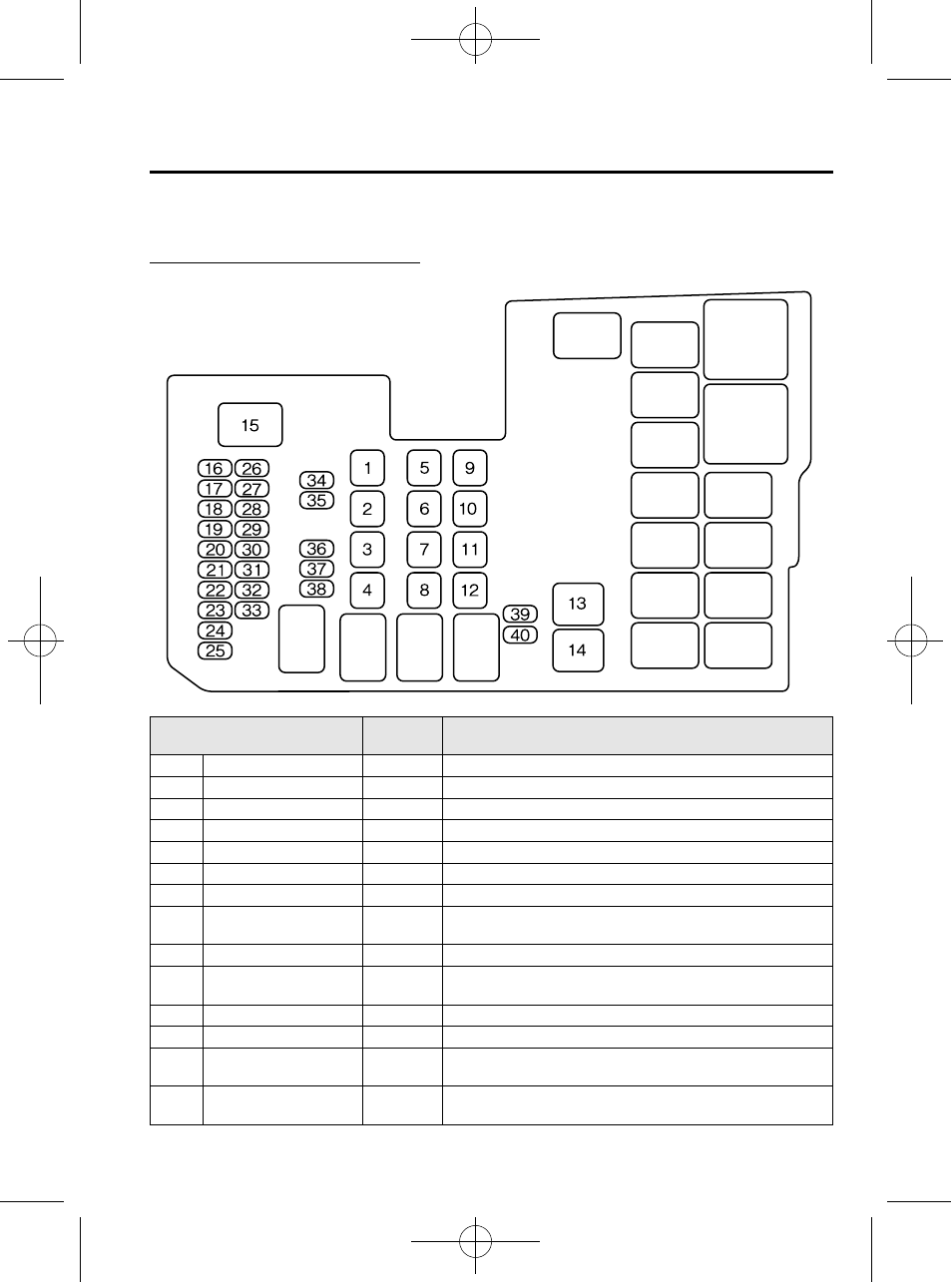

qFuse Panel Description

Fuse block (Engine compartment)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

1

FAN

30 A

Cooling fan

2

FAN

30 A

Cooling fan

3

P.WIND

40 A

Power windows

í

4

IG KEY1

30 A

For protection of various circuits

5

ABS-V

20 A

ABS, DSC

í

6

ABS-P

30 A

ABS, DSC

í

7

IG KEY2

20 A

For protection of various circuits

í

8

HEATER

DEICER

20 A

Water heater

í

9

BLOWER

40 A

Blower motor

10

GLOW

IG KEY1

40 A

Glow plugs

í

11

BTN

40 A

For protection of various circuits

12

IG KEY2

40 A

For protection of various circuits

í

13

CLOSER

P.SLIDE LH

20 A

Easy closer,Power slide door (LH)

í

14

CLOSER

P.SLIDE RH

20 A

Easy closer,Power slide door (RH)

í

Maintenance and Care

Owner Maintenance

8-43

í

Some models.
