DCA25SSIU3 60 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #0 (12/20/10) — PAGE 43

GENERATOR WIRING DIAGRAM

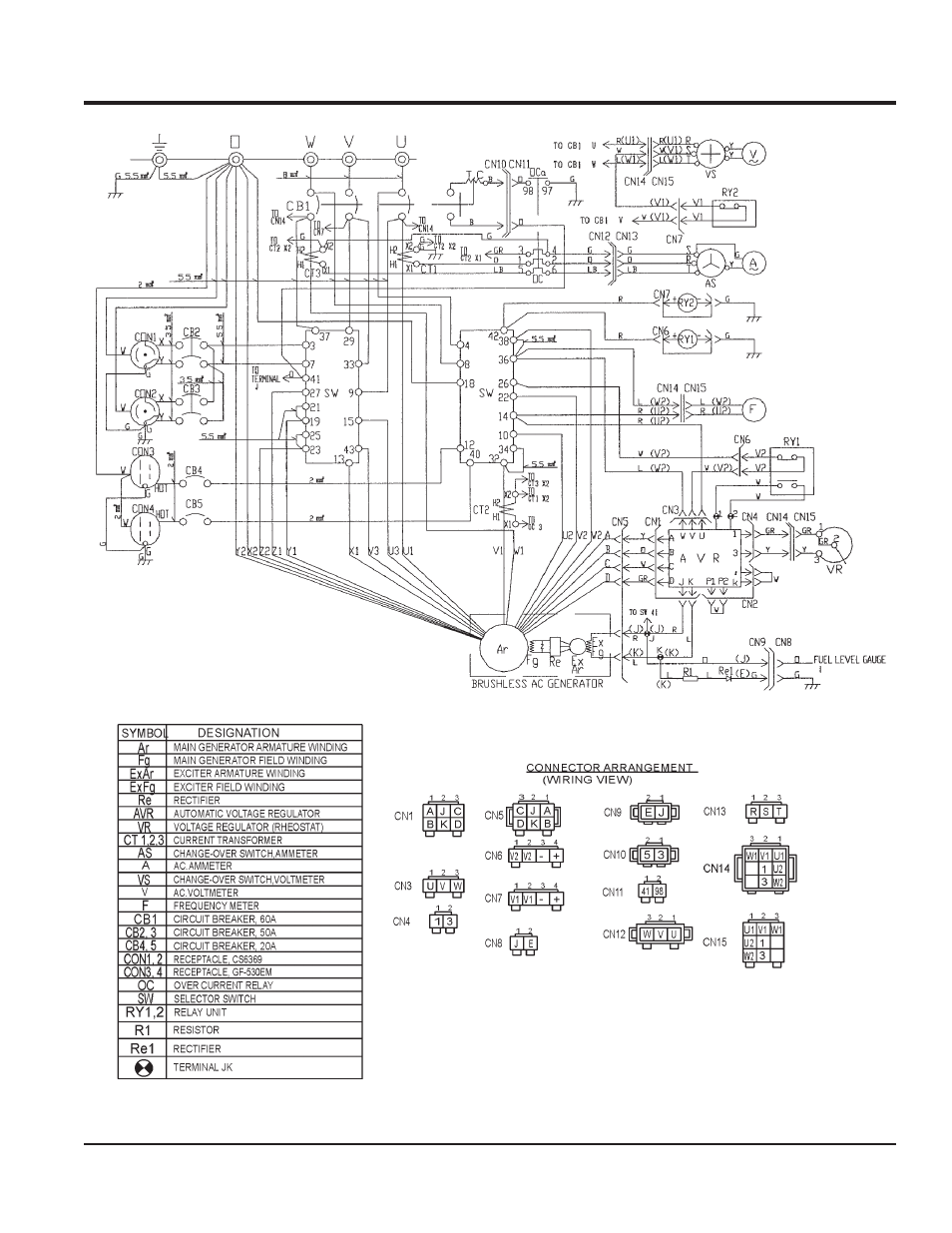

Figure 60. Generator Wiring Diagram
