DCA25SSIU3 60 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #0 (12/20/10) — PAGE 13
DIMENSIONS

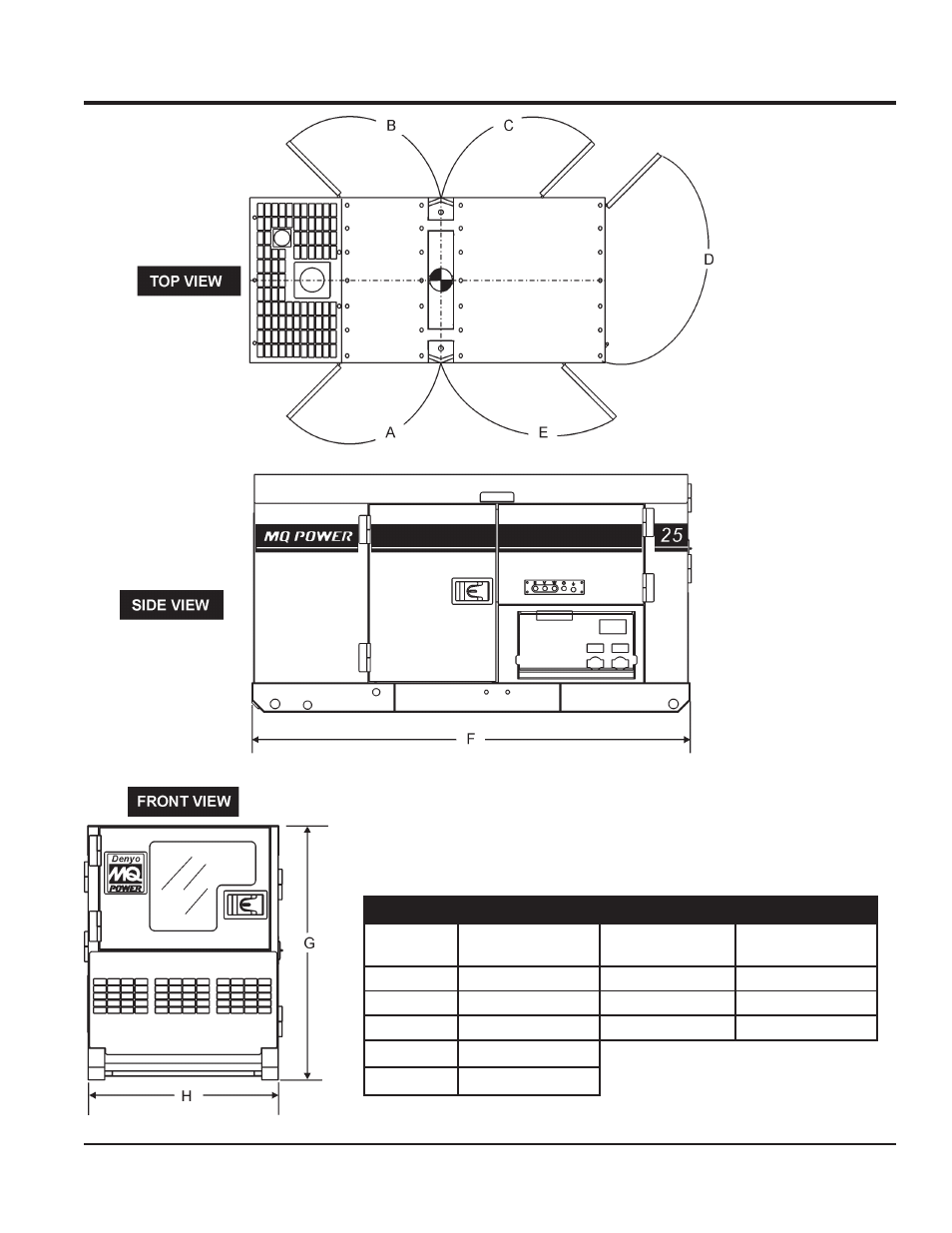

Figure 1. Dimensions
Table 3. Dimensions
Reference
Letter
Dimension in. (mm) Reference Letter Dimension in. (mm)
A 21.06 in. (535 mm.) F 94.49 in. (1,850 mm.)
B 21.06 in. (535 mm.) G 39.37 in. (1,000 mm.)
C 24.21 in. (615 mm.) H 29.53 in. (750 mm.)
D 26.38 in. (670 mm.)
E 25.0 in. (635 mm.)
