2 Installation
7
MultiModemII User Guide
Step 1: Connect the Modem to Your System
Turn off your computer. Placing the modem in a convenient location, connect it
to your computer’s serial port, to the telephone line, to your leased line, to AC power,
and, optionally, to your telephone.
VOLUME
EIA RS232C
LEASED
LINE
POWER
PHONE

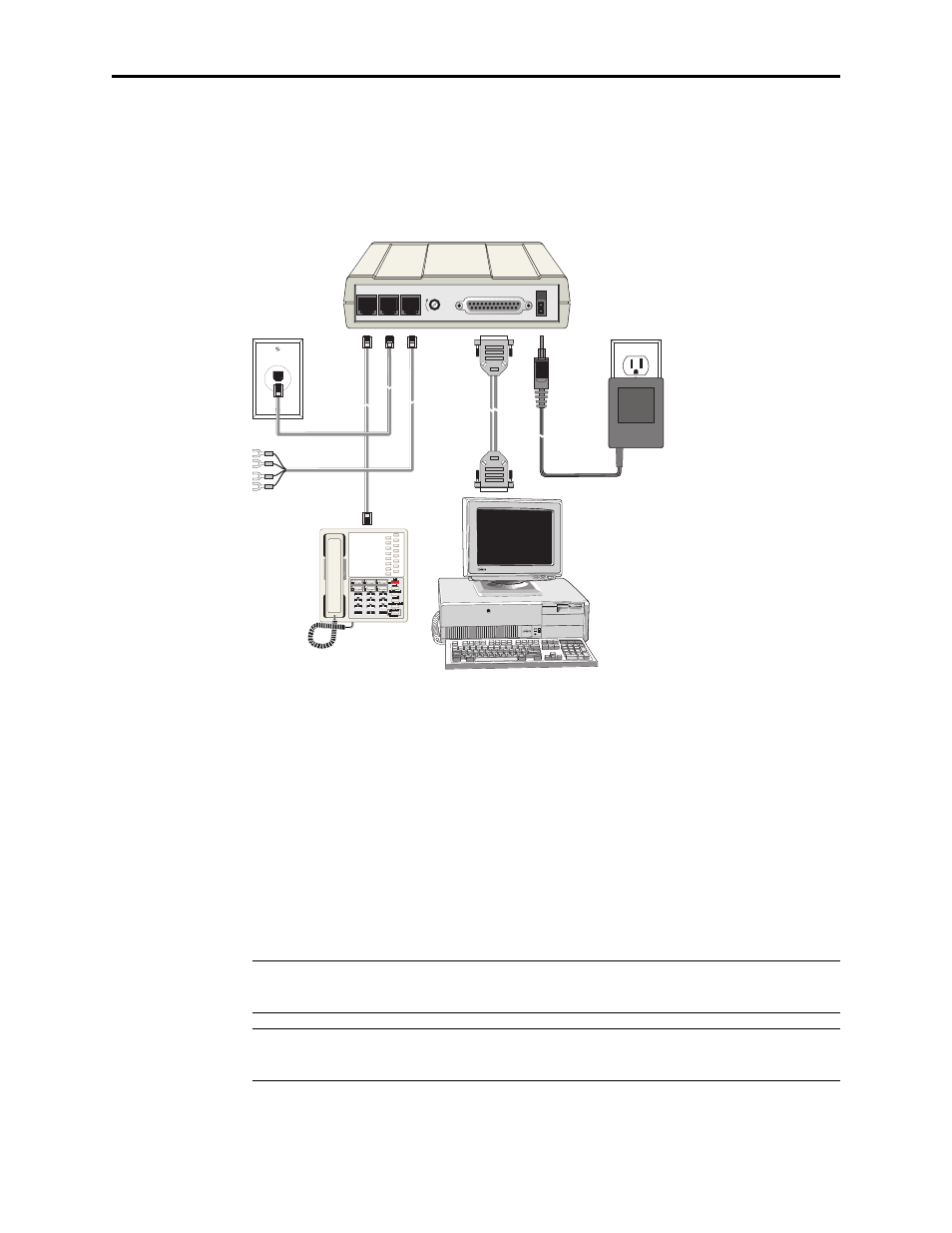

Figure 2-1. MT5600BL connections.
RS232 Connection
Plug one end of the serial cable into the RS232 connector on the modem, and the oth-
er end into a serial port connector on your computer, such as COM1 or COM2.
Dialup Connection
Plug one end of the modular phone cable into the modem’s LINE jack, and the other
end into a public switched telephone network (PSTN) wall jack.
Note:
The LINE jack is not interchangeable with the PHONE jack. Do not plug the
phone into the LINE jack or the line cable into the PHONE jack.
Note:
Regulatory agencies may impose certain restrictions on equipment connected
to public telephone systems. For more information, see Appendix A.
