G Pin Descriptions
101
MultiModemII User Guide
RDL
21
RDL
Remote Digital Loop
Input to modem to enable RDL test.
RI
22
Ring Indicator
RI output high indicates the presence of
a ring signal on the telephone line.
23
NC
XCLK
24
XCLK
External Clock
Input to modem used in special syn-
chronous applications.
TM
25
TM
Test Mode
Output from modem to indicate modem is
in one of the test modes.

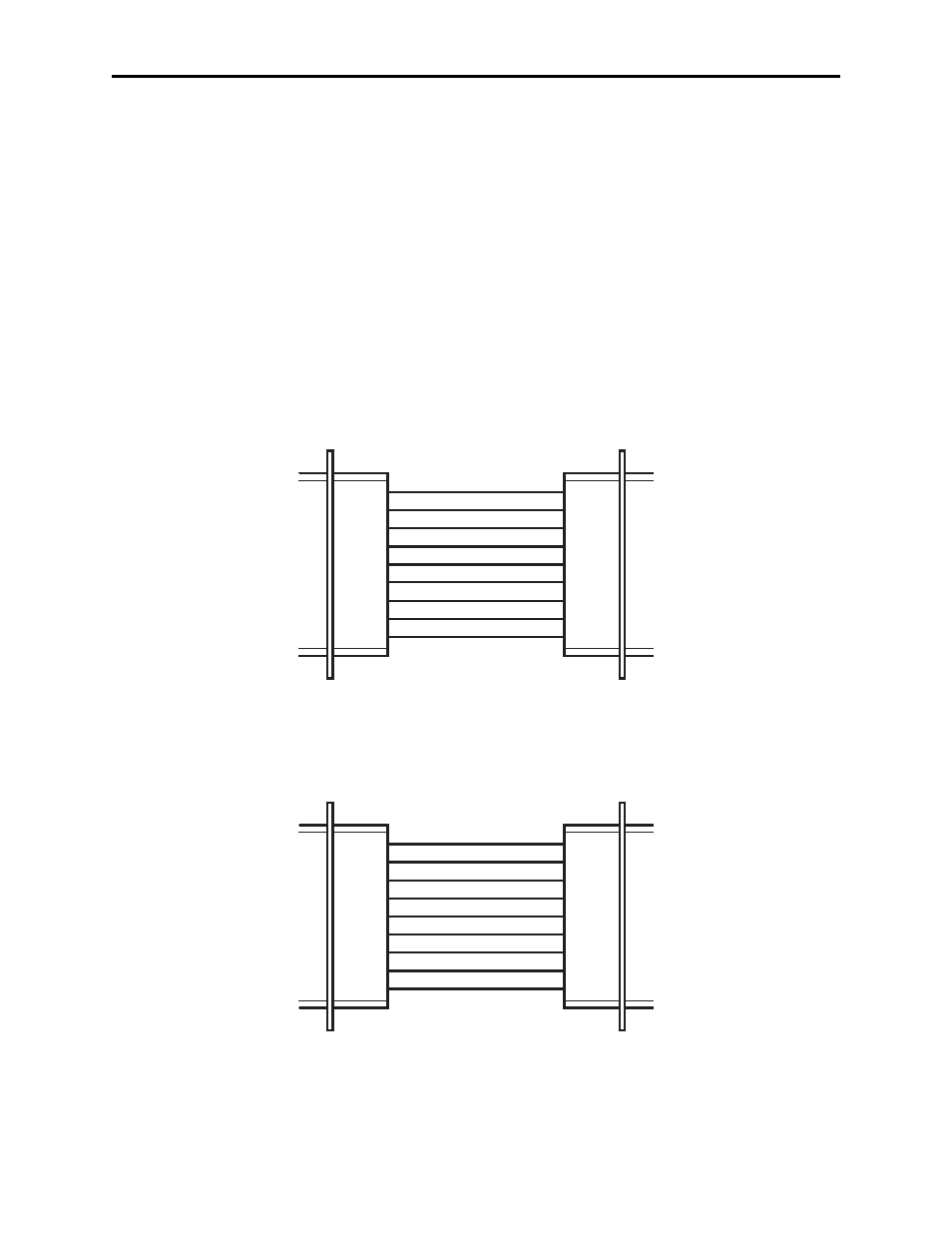

RS-232 Cable Pinouts
20 DTR
22 RI
8 CD
7 GND
6 DSR
5 CTS
4 RTS
3 RD
2 TD
DTE DB-25
connector
DCE DB-25
connector
DTR 20
RI 22
CD 8
GND 7
DSR 6
CTS 5
RTS 4
RD 3
TD 2
Fig. G-1. 25-pin to 25-pin RS-232 cable.
20 DTR
22 RI
8 CD
7 GND
6 DSR
5 CTS
4 RTS
3 RD
2 TD
DCE DB-25
connector
DTE DB-9
connector
DTR 4
RI 9
CD 1
GND 5
DSR 6
CTS 8
RTS 7
RD 2
TD 3
Fig. G-2. 9-pin to 25-pin RS-232 cable.
Label
Pin
I/O type
Signal name/description
