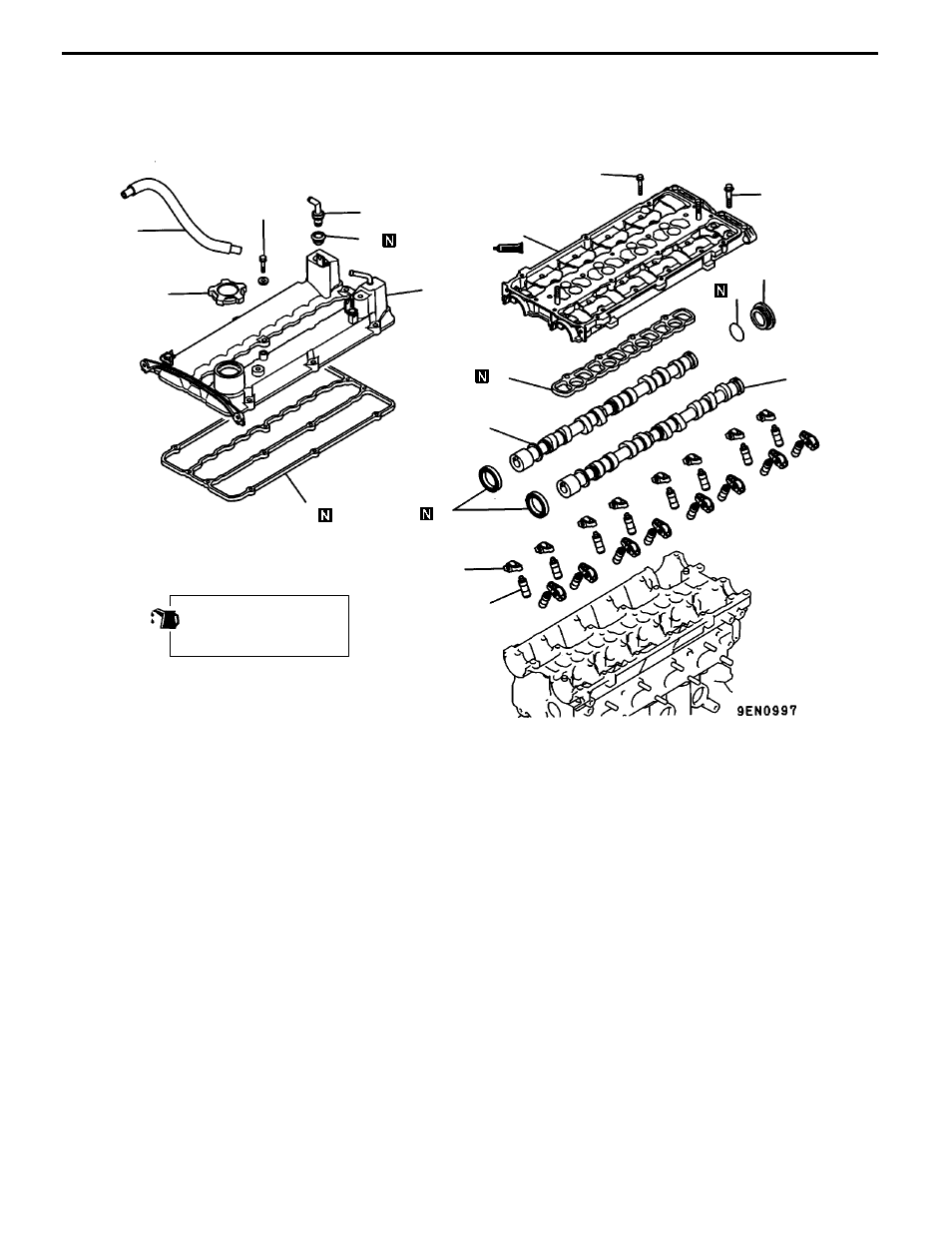

4G9 ENGINE (E-W) - Rocker Arms and Camshafts
11A-8-4
PWEE9502 E May 1995 Mitsubishi Motors Corporation
REMOVAL AND INSTALLATION
3.5 Nm
21 Nm
11 Nm
2
3
1
4
5
8
13
10
9
11
12
14
6 7
15
Apply engine oil to all
moving parts before
installation.
Removal steps
1. Breather hose
2. P.C.V. valve
3. P.C.V. valve gasket
4. Oil filler cap
5. Rocker cover
6. Rocker cover gasket
7. Oil seal
8. Thrust case
9. O-ring
"IA 10. Beam camshaft cap
11. Gasket
12. Intake camshaft
13. Exhaust camshaft
14. Rocker arm
AA" "FA 15. Lash adjuster
