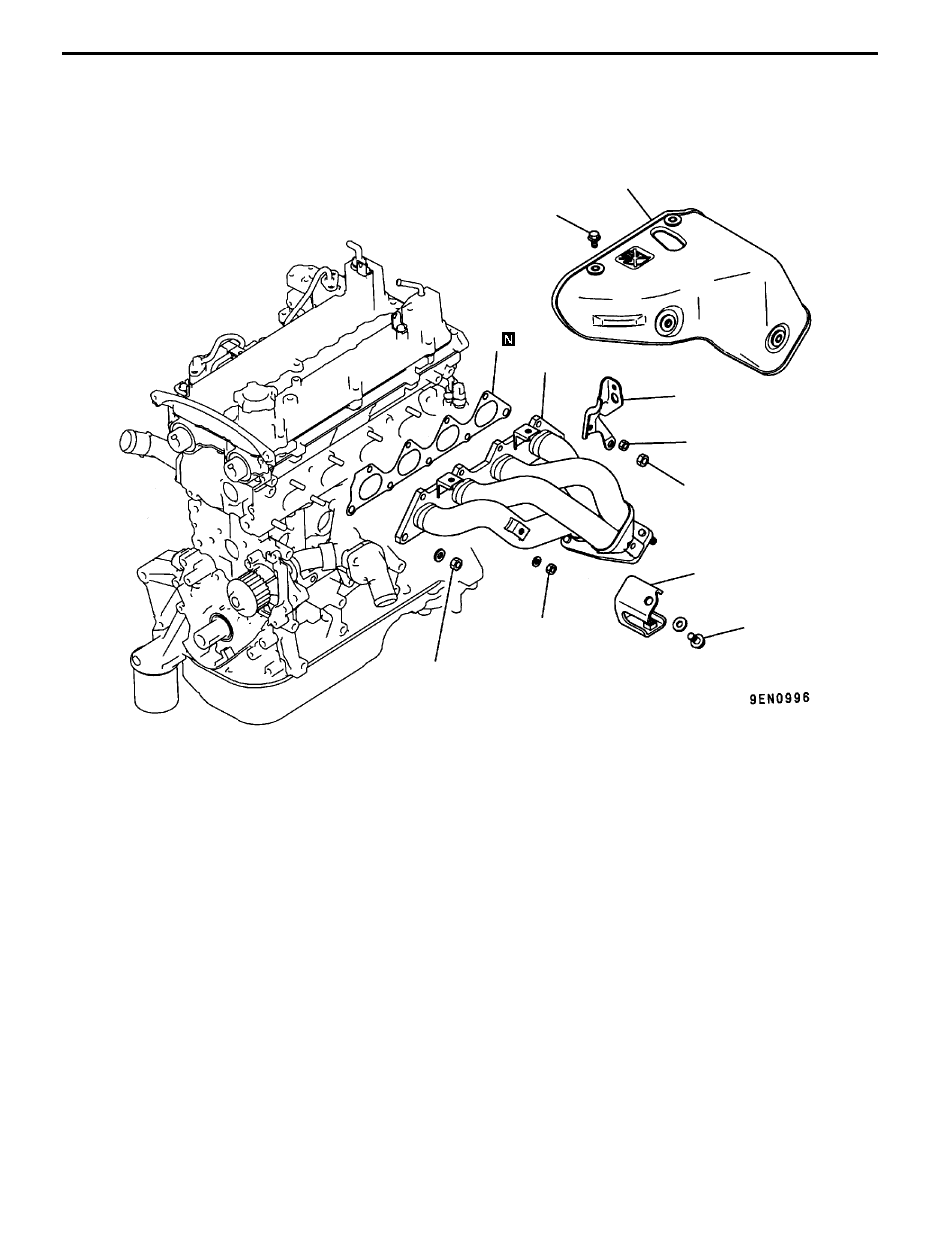

4G9 ENGINE (E - W) - Exhaust Manifold (GDI)
11A-6b-2
REMOVAL AND INSTALLATION
17 Nm
13 Nm
1
3
5
2
4
29 Nm
18 Nm
98 Nm
29 Nm
Removal steps
1. Exhaust manifold cover
2. Engine hanger
"
B
A 3. Exhaust manifold bracket
4. Exhaust manifold
5. Exhaust manifold gasket
PWEE9502-E
