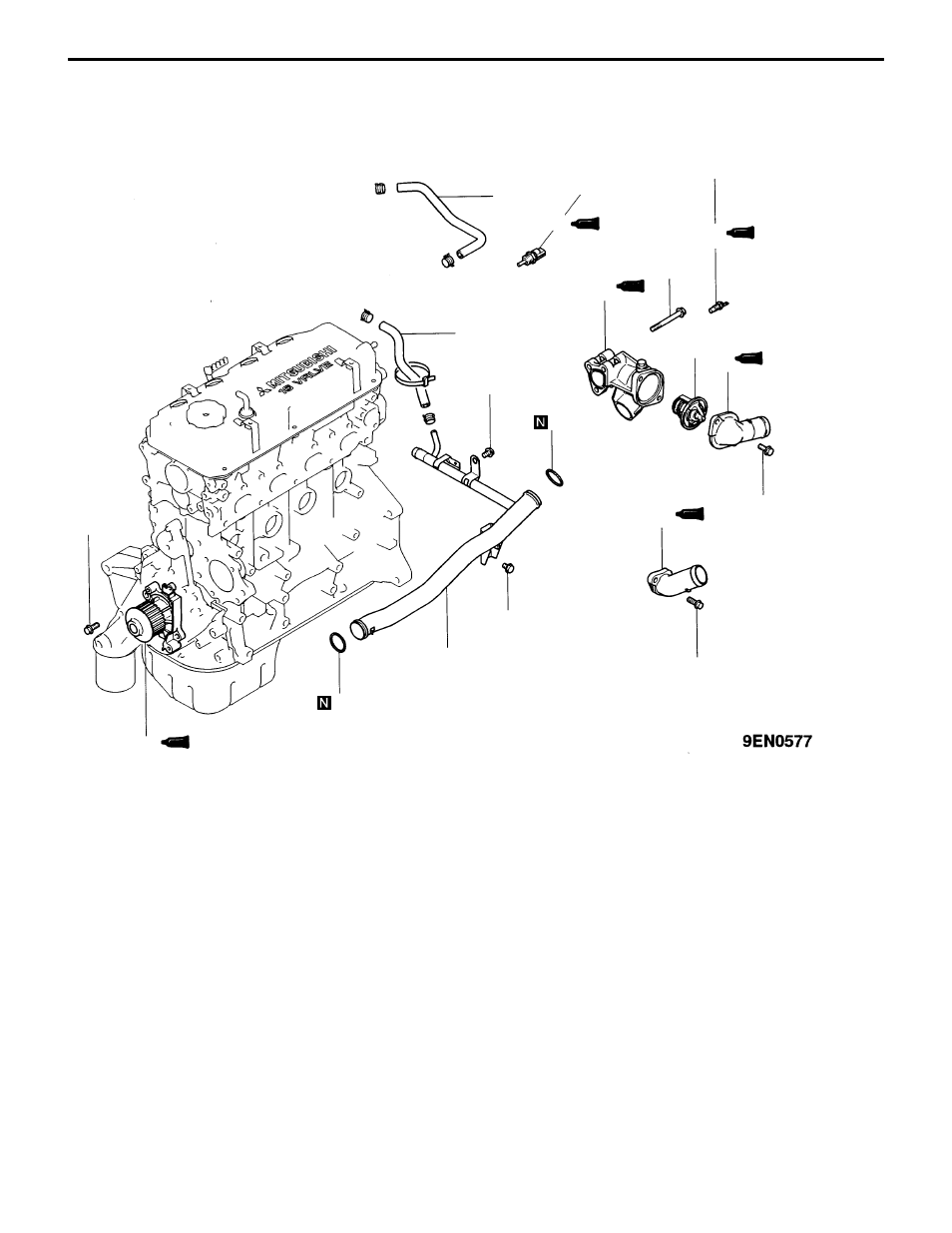

7. WATER PUMP AND WATER HOSE
11301790016
REMOVAL AND INSTALLATION
29 Nm
10 Nm
24 Nm
14 Nm
24 Nm
14 Nm
19 Nm
12
11
10
9
2
4
3
1
8
7
6
5
19 Nm
Removal steps
1. Water hose
(Except carburetor engines)
2. Water hose
"
G
A
3. Engine coolant temperature sensor
"
F
A
4. Engine coolant temperature gauge
unit
"
E
A
5. Water outlet fitting
6. Water inlet fitting
"
D
A
7. Thermostat
"
C
A
8. Thermostat case
"
B
A
9. O-ring
"
B
A
10. Water inlet pipe
"
B
A
11. O-ring
"
A
A
12. Water pump
