4G9 ENGINE (E-W) - Intake Manifold (GDI)
11A-6a-1
PWEE9502-D E Jun. 1998 Mitsubishi Motors Corporation Revised

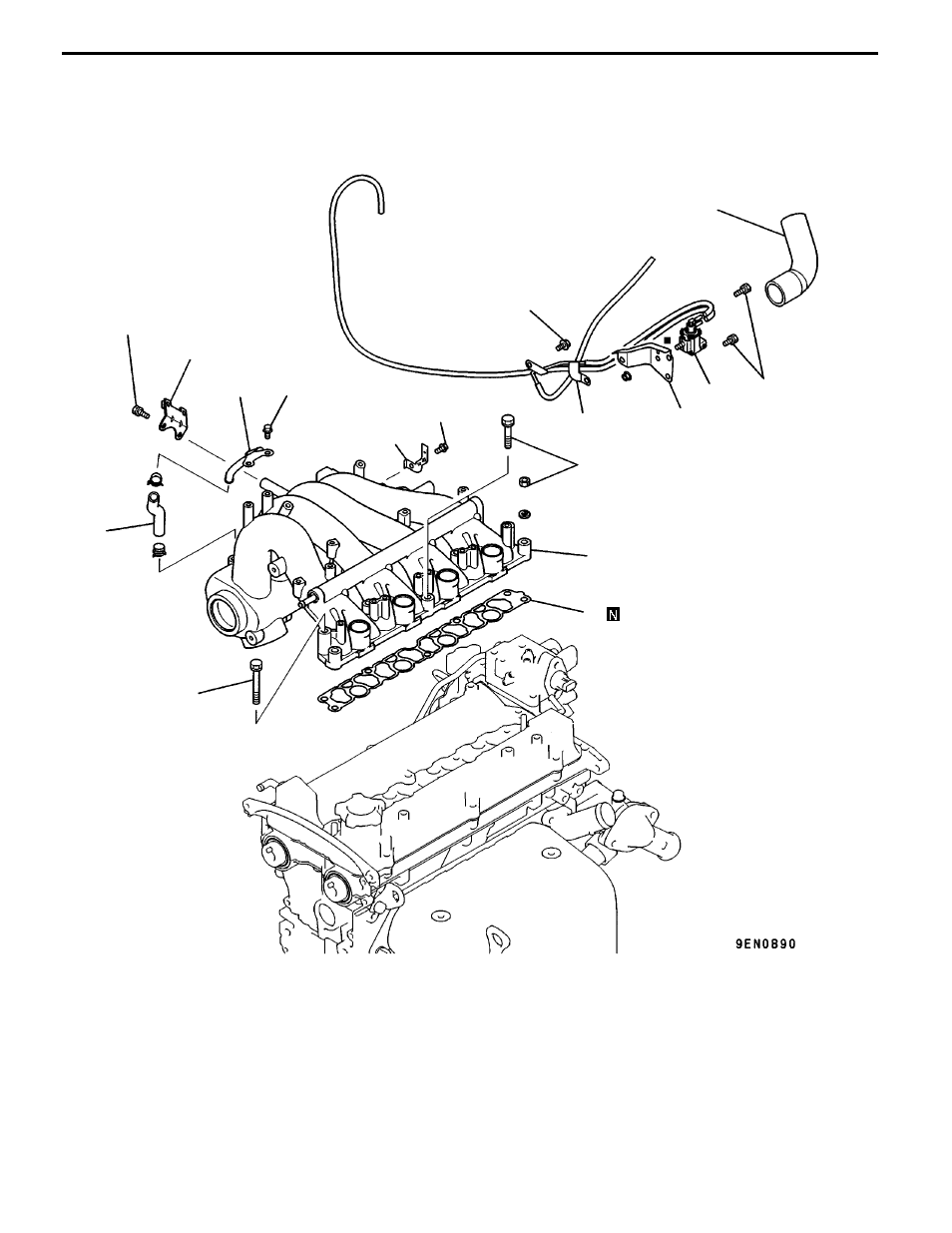

6a. INTAKE MANIFOLD (GDI)
REMOVAL AND INSTALLATION
SPACE STAR, SPACE RUNNER>
11 Nm
19 Nm
9 Nm 8
10
1
9
5
6
7
3
2
4
11 Nm
11 Nm
9 Nm
19 Nm
Removal steps
1. Air by-pass hose
(Up to 1998 model for CARISMA,
SPACE RUNNER)
2. Vacuum pipe and hose
3. Bracket
4. Solenoid valve
5. Connector bracket
6. Accelerator cable bracket
7. Vacuum hose
8. Vacuum pipe
9. Intake manifold
10. Intake manifold gasket
PWEE9502-G E May 2000 Mitsubishi Motors Corporation Revised
