Murphy Engine Panels WD300-LV - Manual (Page 5)

WS-93002N page 5 of 7
R
G NC SW1 SW2 B
B +
GRD SIG
Tachometer
Hourmeter
Voltmeter
518PH
20T
Temperature
20P
Pressure
_
+
_
+
To Magnetic Sensor,
Alternator “Tach”
Terminal, or
Signal Generator
518PH WIRED WITH JUMPER
Must specify 12 or 24 VDC
PB128S Stop Switch
Other
Swichgage instruments
Jumper
Ignition coil
Distributor
Fuel Valve
Energized to Run
Rack Pull Solenoid
(RP2300 Series shown)
Energized
to Run
_
+
Ammeter
Battery
_
+
ST
ACC
IGN
BAT
Start
Switch
Alternator
B +
Starter
S
B
Exciter
CAUTION: This wiring is typical for Murphy W-Series small engine panels. Items shown may or may not be included in your panel;
however, the circuit is typical of how the component will be wired if it is included. Refer to installation instructions for the specific
component if included. For off-panel items such as shutdown devices, see specific instructions supplied with the device.

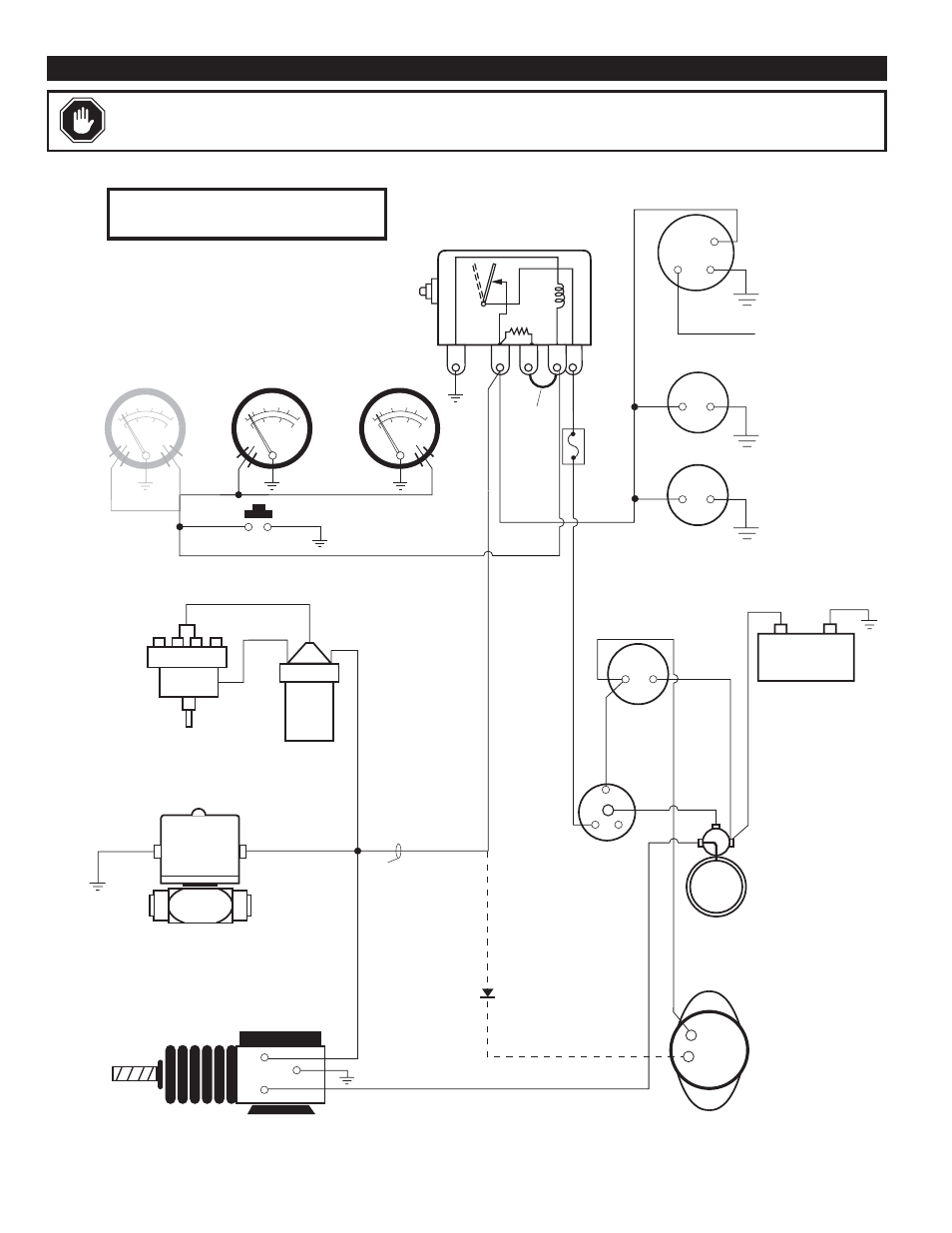

TYPICAL WIRING DIAGRAM WITH 518PH TATTLETALE JUMPERED
