PowerView

- Model PV10 – Diagnostic Display

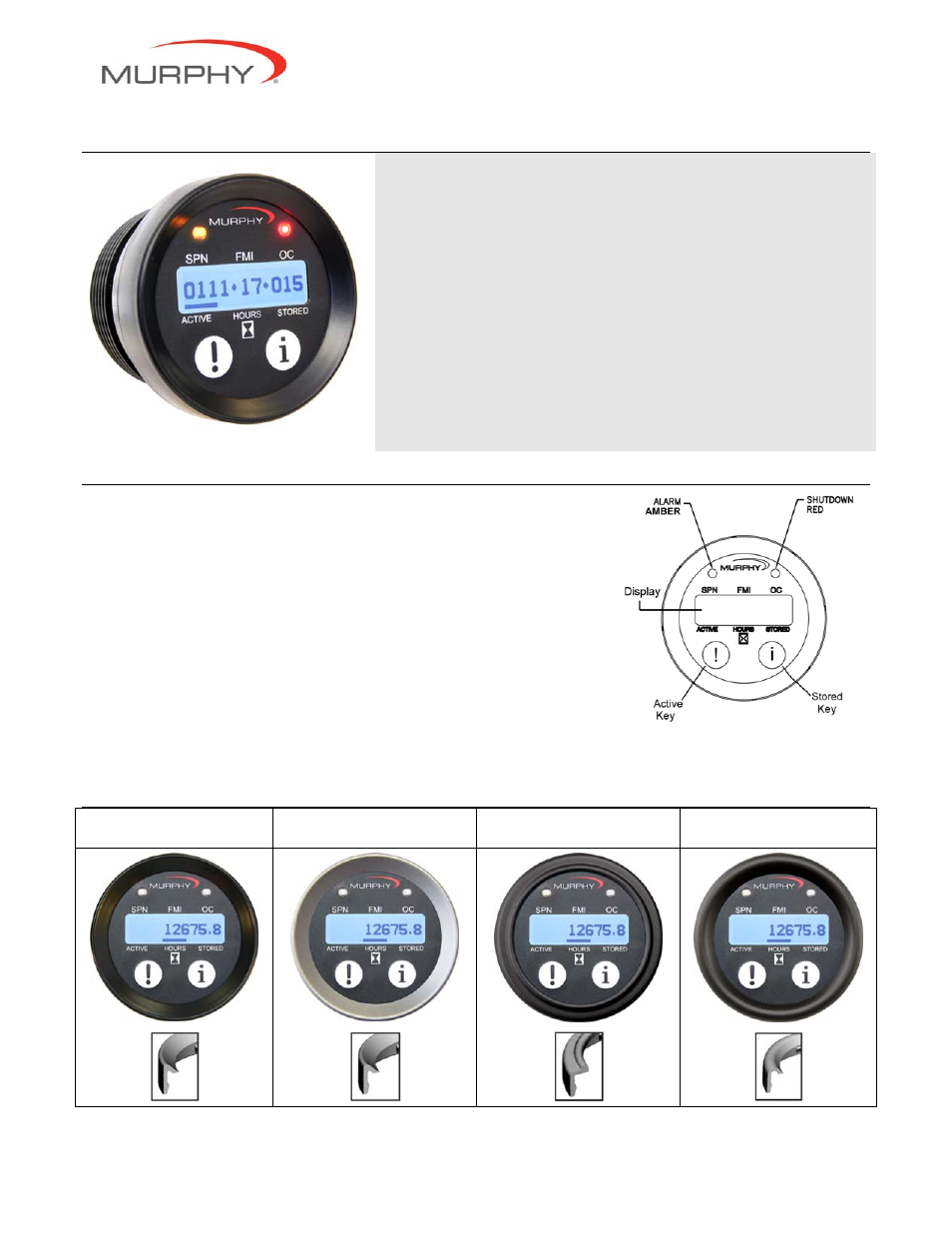

Features

• Display supports electronically controlled engines and

equipment applications that use SAE J1939 Controller Area
Networks.

• Displays Active and Stored diagnostic trouble codes for

diagnosing equipment malfunctions.

• Displays Engine Hours, SPN, FMI, and OC information on a

graphic display.

• Provides enhanced visual alarm indication using Ultra-bright

ALARM or SHUTDOWN LEDs (amber and red).

• Simple installation and connections to the system bus.

Rugged design for demanding applications includes backlit

display and is sunlight viewable.

Product Description

The PV10 Diagnostic display is a CAN device that receives data from a
controller or ECU and then displays Active and Stored Fault messages and
Engine Hours.

The default mode provides hourmeter data from the ECU for cumulative
engine hours.

The PV10 is equipped with two buttons to quickly select between Active or
Stored Faults, a graphic display, two LED to indicate the Active fault's Alarm
or Shutdown status in a sealed enclosure that matches the PowerView line
of gages.

Fault Messages

Fault messages are formatted to display SPN (Suspect Parameter Number), FMI (Failure Mode Indicator) and OC
(Occurrence Count) codes that conform to the SAEJ1939 protocol.

Bezel Styles

AB

A-20 Style

A

A-20 Style

BB

Low Profile SAE Style

DB

Low Curved Style
