17
English
3139 246 XXXXX
VCR/DVD player
Connecting Additional Devices
(cont’d)

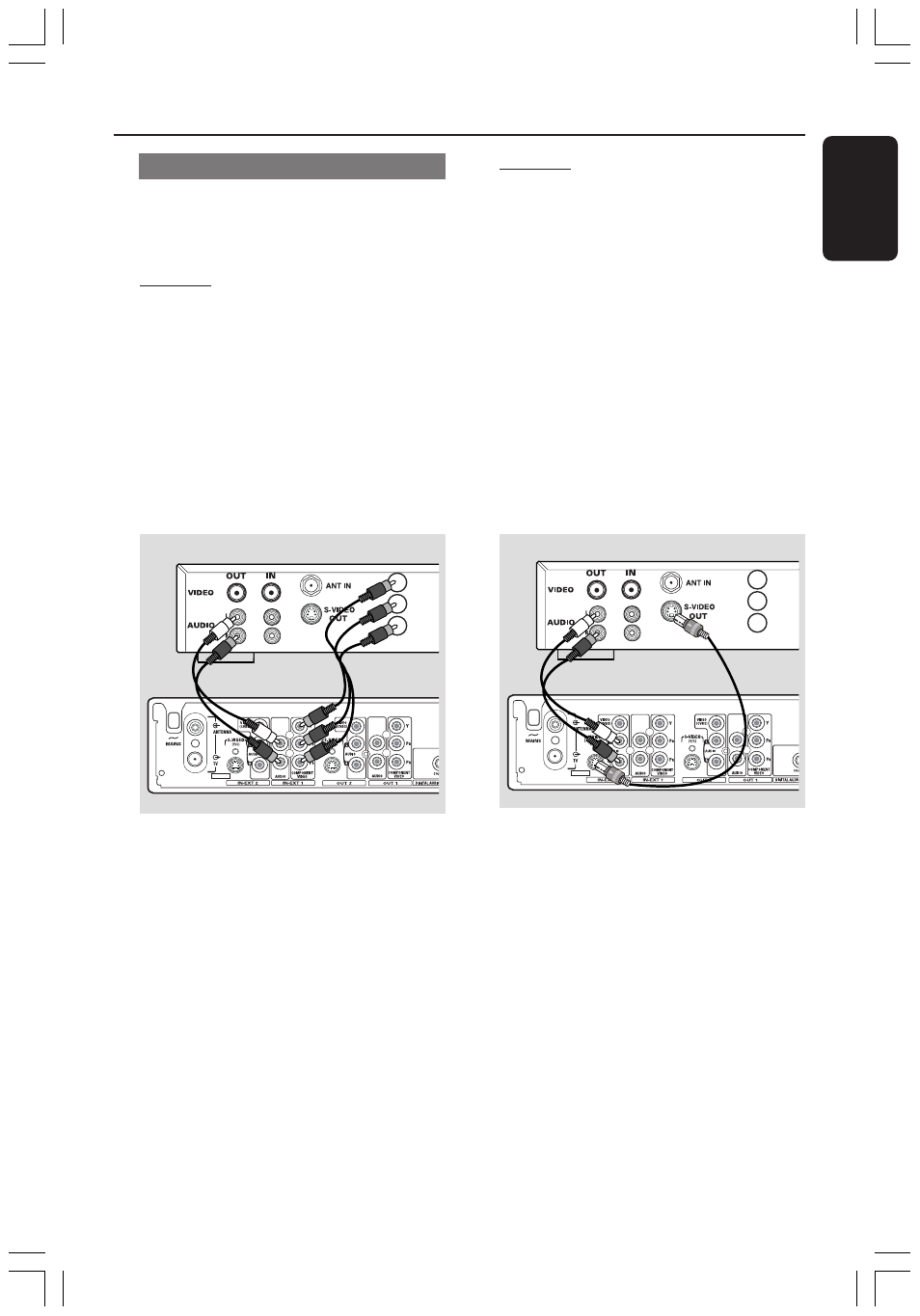

Connecting a VCR/DVD player
You will need this connection if you want
to record the video tapes or discs to a
DVD+R(W)s.
Option 1
1
Use a component video cable (red/green/
blue) to connect the DVD recorder’s
COMPONENT VIDEO (IN-EXT1)
input jacks to the corresponding
component video output jacks on the
VCR/DVD player.
2
Use an audio cable (red/white) to
connect the DVD recorder’s AUDIO
L/R (IN-EXT1) input jacks to the audio
output jack on the VCR/DVD player.
COMPONENT
VIDEO OUT
Y
Pr
Pb
Before you start operating, press
TUNER on the remote control, then
press 3 4 to select ‘
EXT1’ as the input
channel. For recording, see pages 39~40.
Option 2
1
Use a S-video cable to connect the DVD
recorder’s S-VIDEO (Y/C) (IN-EXT2)
input jack to the corresponding S-VHS
output jack on the VCR/DVD player (as
shown on the below illustration.)
OR
Use a video (CVBS) cable to connect the
DVD recorder’s VIDEO (CVBS)
(IN-EXT2) input jack to the
corresponding video output jack on the
VCR/DVD player.
2
Use an audio cable (red/white) to
connect the DVD recorder’s AUDIO
L/R (IN-EXT2) input jacks to the audio
output jack on the VCR/DVD player.
COMPONENT
VIDEO OUT
Y
Pr
Pb
Before you start operating, press
TUNER on the remote control, then
press 3 4 to select ‘
EXT 2’ as the input
channel. For recording, see pages 39~40.
Helpful Hints:
– Most prerecorded video cassettes and
DVDs are copy-protected. If you try to copy
them, the message '
COPY PRO' appears on
the display panel.
– Connect the DVD recorder directly to the TV
set. If there is a video recorder or an
additional device in between, the picture
quality may be poor because of the copy
protection system built into the DVD recorder.
VCR/DVD player
