OM-1313 Page 5
SECTION 2 – INSTALLATION
2-1. Specifications
Rated Welding
Output
Amperage
Range
Maximum
Open-Circuit
Voltage DC
Amperes Input at
Rated Load
Output, 60 Hz,
Single-Phase
Weight
Overall
Dimensions
Voltage DC
200 V 230 V KVA KW
150 A @ 23 Volts
DC, 60% Duty Cycle
30 – 185 33 30 (1.6)* 26 (1.4)* 6 (0.27)* 5 (0.13)*
165 lb
(75 kg)
Length: 36 in
(915 mm)
Width: 18 in
(457 mm)
Height: 27 in
(686 mm)
Wire Type And Diameter
Solid Steel /
Stainless
Steel
Flux Cored Aluminum
Calculated Wire Speed
Range At No Load
Max Wire Feed Speed
While Welding
.023 – .035 in
(0.6 - 0.9 mm)
.030 – .045 in
(0.8 – 1.2 mm)
.030 – .035 in
(0.8 – 0.9 mm)
138 – 795 IPM (3.5 – 20.3 m/min) 650 IPM (16.5 m/min)
*While idling
Operating Temperature Range – –20C to +40C Storage Temperature Range – -30C to + 50C

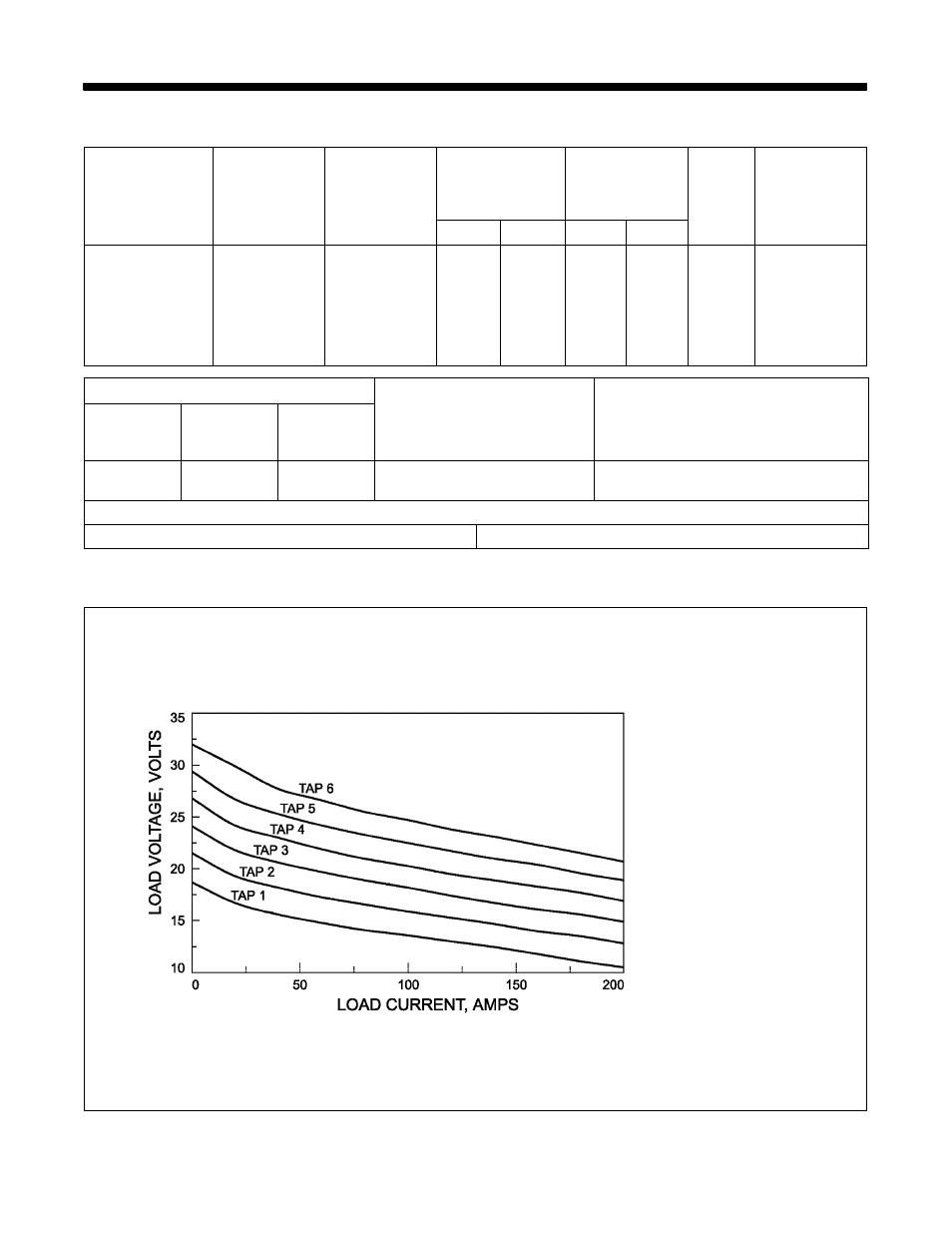

2-2. Volt-Ampere Curves
va_curve1 4/95 – SB-180 824
Volt-ampere curves show mini-
mum and maximum voltage and
amperage output capabilities of
unit. Curves of other settings fall be-
tween curves shown.
