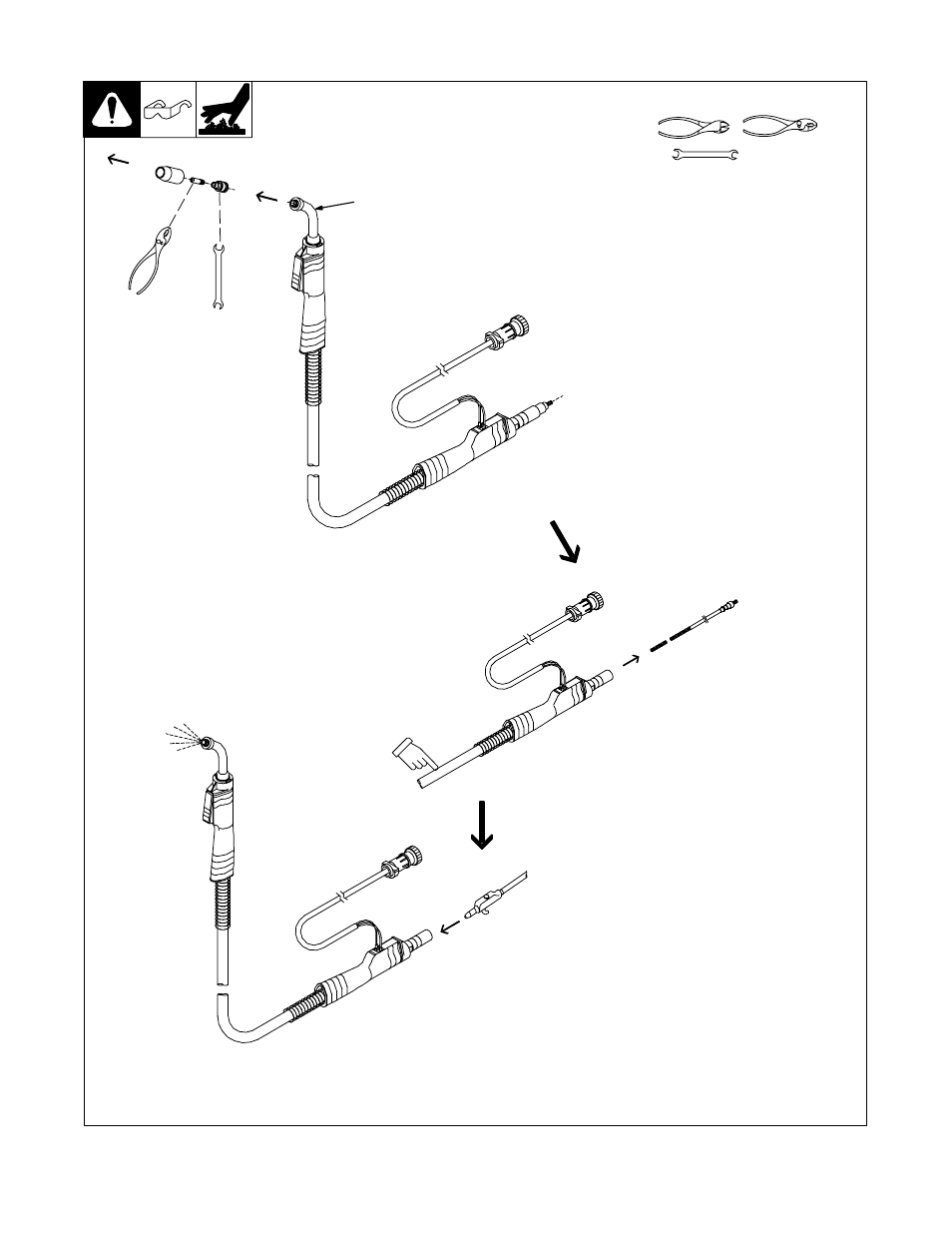

4-4.
Cleaning Or Replacing Gun Liner
Ref. ST-800 797-C
3/8 in
To Reassemble Gun:
Insert new liner.
Install and tighten wire outlet guide.
Cut liner off 3/4 in (20 mm) (3/8 in
[9.5 mm] for aluminum) from head
tube.
Install adapter, contact tip, and
nozzle.
Lay gun cable out straight
before installing new liner.
Head Tube
3/8 in
Remove liner.
Remove nozzle, contact tip, and
adapter.
Blow out gun casing.
Y
Disconnect gun first.
Tools Needed:
