Metrologic Instruments Solaris MS7820 User Manual
Page 25
21
I
NSTALLATION
F
LEX
S
TAND
I
NSTALLATION
3. Remove the scanner’s back plate from the rear side of the unit. Apply
pressure to the points shown in Figure 14 until the back plate unlatches from
the scanner.

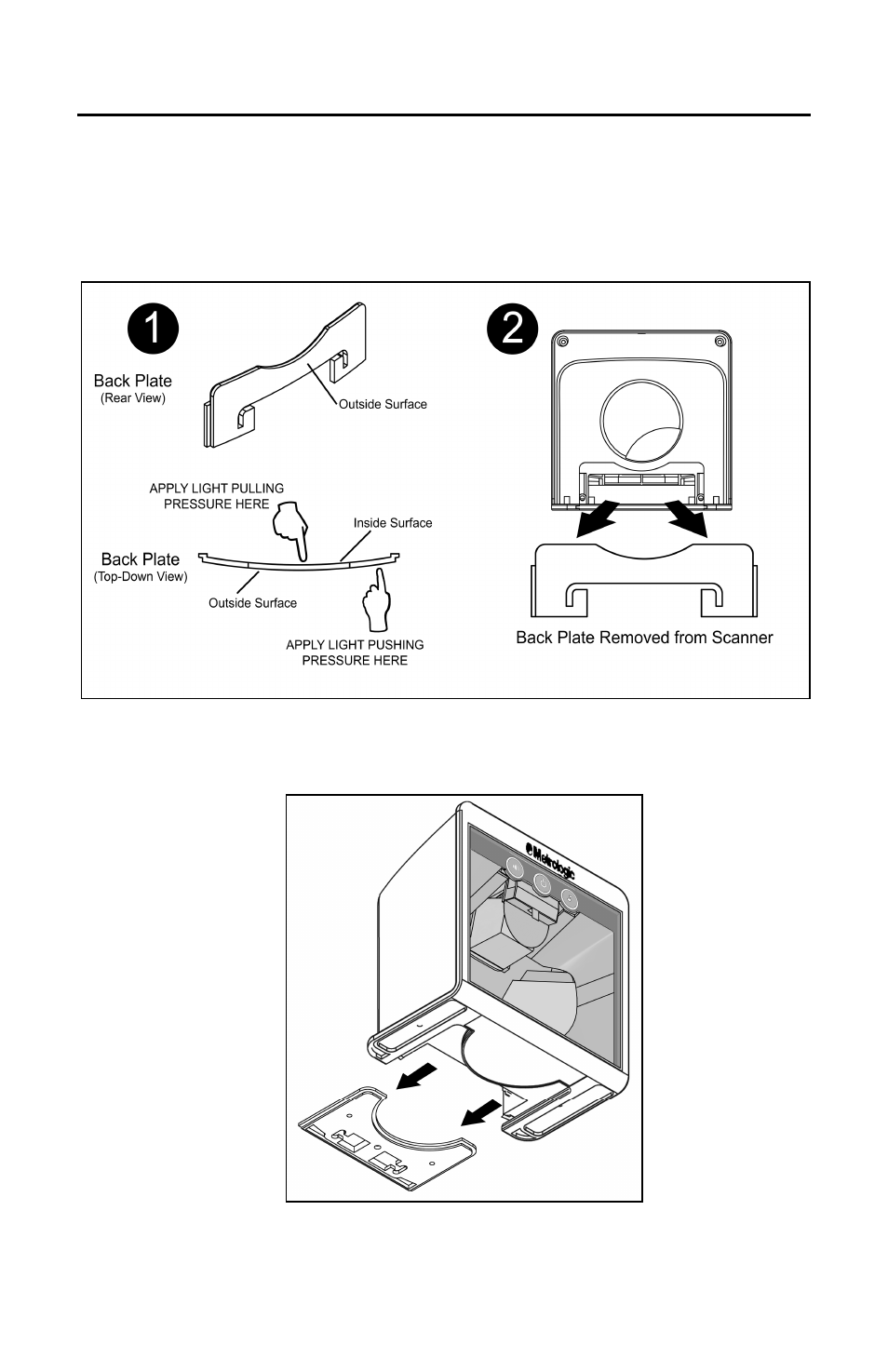

Figure 14. Cable Cover Removal
4. Slide the bottom mounting plate off the scanner.
Figure 15. Mounting Plate Removal
