Page 24
20
I
NSTALLATION
F
LEX
S
TAND
I
NSTALLATION
,
MLPN
46-00868

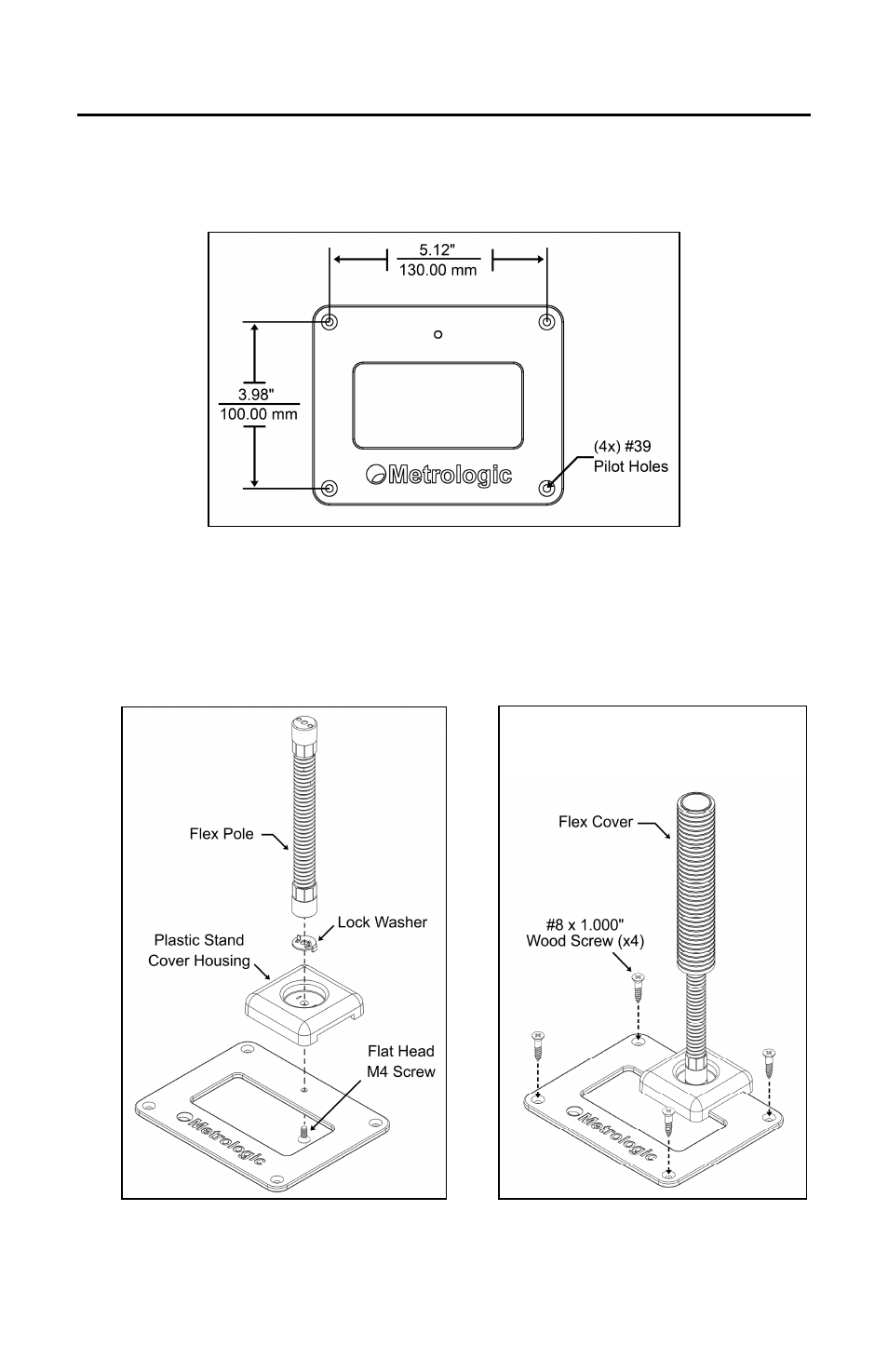

1. Drill four #39 pilot holes in the counter top for the stand base plate.
Figure 11. Base Plate Hole Pattern
2. Attach the flex pole assembly and secure the base plate to the counter.
Slide the flex cover over the flex pole assembly. Once the flex pole has been
assembled, mount the stand base plate to the counter and install the flex
cover over the flex pole assembly.
Figure 12. Pole Assembly
Figure 13. Cover Assembly
