11

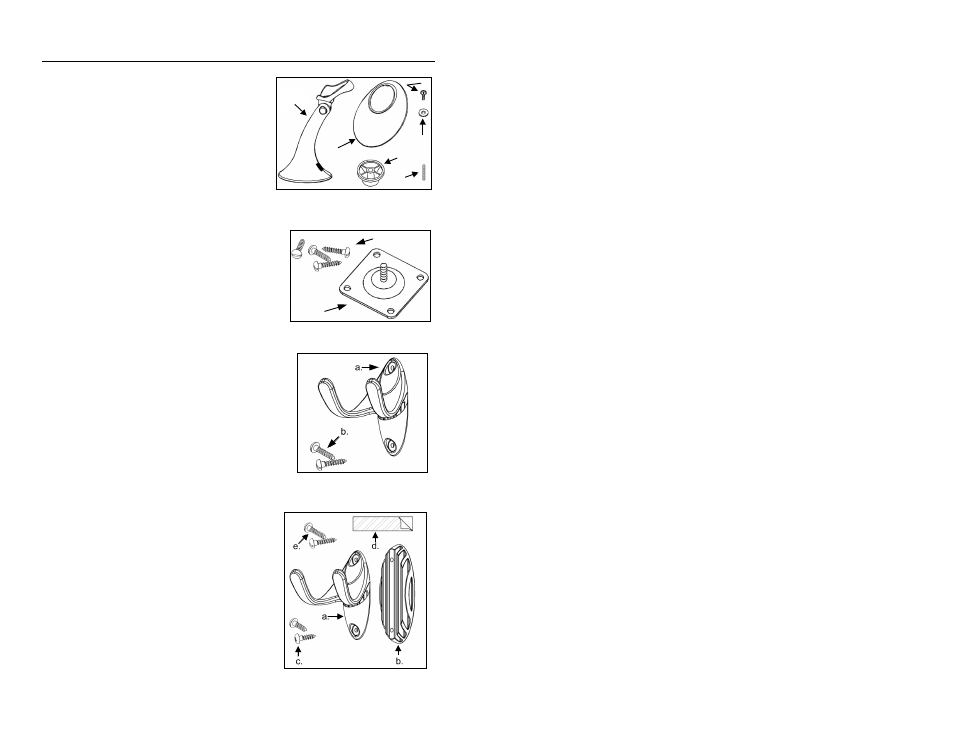

S TAND K ITS
Free Standing Kits #46-46128
Contains:
a. Stand ( MLPN 36-00454)................................Qty 1
b. Apron ( MLPN 50-50440) ...............................Qty 1
c. Screw, M3 x 6 mm ( MLPN 18-18670)............Qty 2
d. Washer, #5 x .5 OD ( MLPN 18-18671) ..........Qty 2
e. Stand Anchor ( MLPN 50-50449) ...................Qty 1
f. M3 x 20 mm Set Screw ( MLPN 18-18672).....Qty 1
Optional Hard Mount Accessory Kit #46-46351
This kit, used in conjunction with the stand kit
(#46-46128), can be used to hard mount (bolt)
the MS9500 to the countertop.
Contains:
a. Screw, #8 Round Head ( MLPN 18-18057) ....Qty 4
b. Base ( MLPN 36-36080).................................Qty 1
Optional Wall Mount Hanger Accessory
Kit #46-46433
Contains:
a. Screw #8 Round Head ( MLPN 18-18057) .....Qty.2
b. Wall Mount Hanger ( MLPN 18-18057)...........Qty.1
Optional Wall Mount Hanger Kit #46-46508
Contains:
a. Wall Mount Hanger ( MLPN 36-00611 )........Qty. 1
b. Wall Mount Base ( MLPN 36-00812) ...........Qty. 1
c. 4.8 x 13 mm, Self Tapping Screw .............Qty. 2
( MLPN 18-18233)
d. Double-Sided Adhesive Tape .....................Qty. 1
( MLPN 36-00821)
e. #8 Wood Screw ( MLPN 18-18057) ..............Qty. 2
a .
b .
e .
d .
a .
b .
f.
c.
Figure 13.
Figure 14.
Figure 15.
Figure 16.
